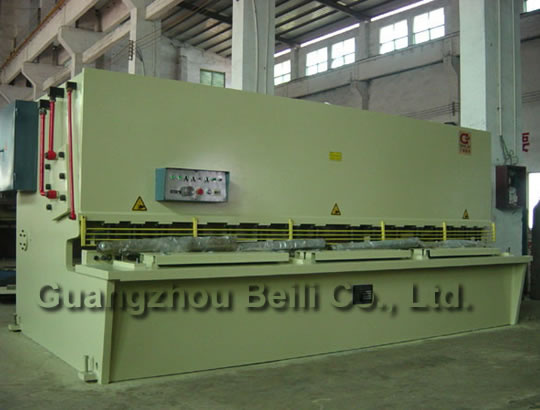

Shearing Machine

Shearing Machine
Price: Negotiable
Trade Terms: FOB HUANGPU
Min Order: 1set
Pay Type: T/T

Product Specifications

Prod Model: QC12Y series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Machinery & Hardware
Automation: Automatic
Type For Cutting Machine: Hydraulic Cutting Machine
Type: Shearing Machine

Product Description

* It is adopted hydraulic driving, the frame steelwelded structure which has sufficient strength and rigidity.
* The machine is equiped with a power back gauge on whicn, a manual fine-adjusting, mechanism for blade clearance, ashadw light device enribing cutting operatikon, a connter, a sensitive and reliable safety barrier.
* It can also be equipped with a support conveyor.
* Whole steel welded frame with full strength and rigidity.
* Hydraulic upper transport.
* Hydraulic press device with reliable safety bar.
* Rapid cutting stroke adjustment is adopted, cutting frame can be adjusted ensuring priduction efficiency increase when cutting short sheet.
* Back-gauge station adopts motor-driven measure with fine manual adjustment.
* Cutting counter device.
* Light line device so it is easy to draw line for cutting.
Model Maximum shearing thickness
mm
Maximum shearing width
mm
Shearing angle
mm
Sheet strength
n/mm2
Backgauge station
mm
Motor Power
kw
Overall dimensions
(L X W X H)
mm
Weight
kg
QC12Y-4x2500 4 2500 1’30’ 450 600 4 3100x1405x1500 4300
QC12Y-4x3200 4 3200 1’30’ 450 600 5.5 3800x1600x1620 5800
QC12Y-4x4000 4 4000 1’30’ 450 600 5.5 4600x1700x1850 7500
QC12Y-6x2500 6 2500 1’30’ 450 600 7.5 3100x1580x1550 5800
QC12Y-6x3200 6 3200 1’30’ 450 600 7.5 3800x1600x1620 6800
QC12Y-6x4000 6 4000 1’30’ 450 600 7.5 4600x1700x1850 8500
QC12Y-6x6000 6 6000 1’30’ 450 600 7.5 6650x2500x1980 18000
QC12Y-8x2500 8 2500 1’30’ 450 600 11 3140x1590x1570 5800
QC12Y-8x3200 8 3200 1’30’ 450 600 11 3800x1750x1700 7500
QC12Y-8x4000 8 4000 1’30’ 450 600 11 4600x1900x1780 9600
QC12Y-8x6000 8 6000 1’30’ 450 600 11 6680x2550x1990 19800
QC12Y-12x2500 12 2500 1’40’ 450 800 18.5 3150x1980x1850 9500
QC12Y-12x3200 12 3200 1’40’ 450 800 18.5 3850x2040x1900 11500
QC12Y-12x4000 12 4000 1’40’ 450 800 18.5 4650x2380x1980 14600
QC12Y-12x6000 12 6000 1’40’ 450 800 18.5 6680x2470x2850 26000
QC12Y-16x2500 16 2500 2’20’ 450 800 18.5 3180x2150x1880 11500
QC12Y-16x3200 16 3200 2’20’ 450 800 18.5 3880x2450x2030 14700
QC12Y-16x4000 16 4000 2’30’ 450 800 18.5 4680x2650x2100 19000
QC12Y-20x2500 20 2500 2’30’ 450 1000 30 3180x2420x2020 14800
QC12Y-20x3200 20 3200 2’30’ 450 1000 30 3880x2680x2150 19500
QC12Y-20x4000 20 4000 2’30’ 450 1000 30 4680x3100x2250 25000
QC12Y-20x6000 20 6000 2’30’ 450 1000 30 6750x2350x3600 56000
QC12Y-25x2500 25 2500 3’ 450 1000 30 3280x2650x2300 19000
QC12Y-32x2500 32 2500 3’30’ 450 1000 37 3300x2850x2450 25000
Guangzhou Bei Li Mechanic Tool Co., Ltd. Is a factory specialized in manufacturing forging and pressing equipment. The main scope of products includes press brake, shearing machine, rolling machine, power press and uncoil-level shearing line.
The company covers an area of twenty-eight thousand square meters. It owns several standard workshop and a comprehensive office building. With staff mainly composed of professional engineers and technicians, it is capable of designing, developing, manufacturing and processing equipment of standard series as well as large non-standard series equipment. We have already set up systems of strict management, complete quality guarantee and fine after-service. Our products are widely applied to sectors of mechanical manufacture, automobile, steel construction, electrics, stainless steel product and decoration project.
Beili has been committing itself to provide the manufacturing with best solutions since it was established. During the course of globalization, basing ourselves upon China market and taking a broader view of the world market, we are marching toward the better, stronger ad higher future targets with precise professional spirit, innovative research capability and rock-firm teamship.
