Mechanical Tire Vulcanizing Machine 63.5"
Price: |
US $ 202000-252000/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
LL-B1525 x 2(63.5") |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: |
New |
Mould Quantity: |
2 |
Steam Dome Internal Diameter: |
1525mm |
Max. Closing Force: |
4220X2kn |
Mould Height: |
254-635mm |
Applicable Bead Diameter: |
19''-24'' |
Main Motor Model/Power: |
LG41-6/16kw |
Temperature Transmitter: |
Jumo |
Pressure Transmitter: |
Jumo |
Type: |
Tire Machinery |
Warranty: |
One Year After Commissioning |
Certification: |
CE, ISO |
Product Description
Tire Vulcanizing Machine / Tire Curing Press
Function:
1. For curing of all-steel heavy-duty radial tires.
2. For curing of semi-radial passenger car/light truck tires.
3. For curing of nylon bias tires with one set of additional post cure inflator.
Features:
1. The machine is multi-link type.
2. Mainly consists of main machine, center mechanism, mechanic claw, steam dome, segmented mould controller, tire stripping machine, unloader, cooling roll way, driving water piping, steam piping, force measure device, lubricating system, electrical control syetem, compressed air piping, safety device, top link centering device,etc..
3. Center mechanism type: B type.
4. Top link moving type: two kinds, sliding back and tilting backOur Services:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
FAQ:
Payment:
1.T/T 30% deposit, balance before shipment.
2. Negotiable.
Contacts:
Telephone & Fax: 86-532-84130227

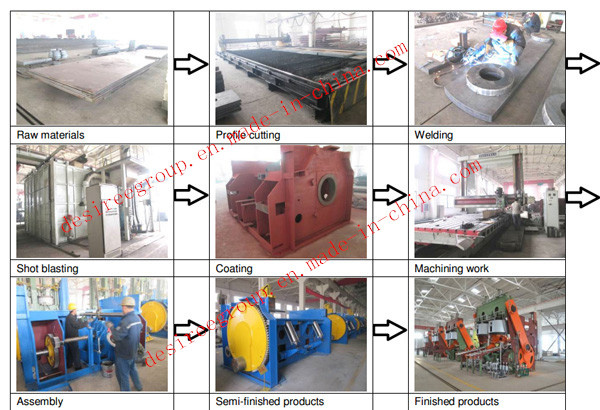

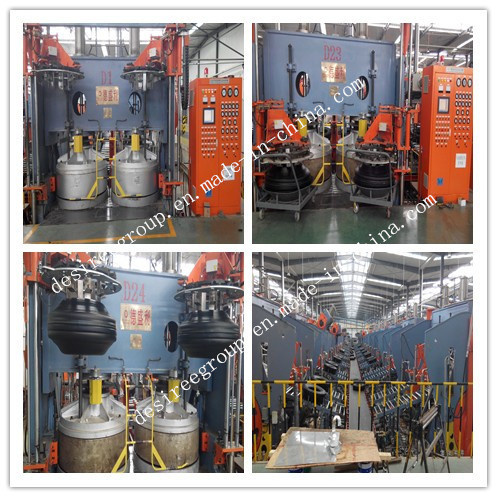

Mobile Phone: 18560603872Manufacturing Process:Working Process:
Certificate Show:
Any question about our products, please feel free to contact with me.
Welcome to make a field inspection of our factory.
Tire Vulcanizing Machine Model No. |
LL-B1525×2 (63.5") |
LL-B1640×2 (65.5") |
LL-B1310×2 (55") |
LL-B1220×2 (48") |
LL-B1145×2 (45") |
LL-B1050×2 (42") |
Steam dome specifiction(mm) |
1525 |
1640 |
1310 |
1220 |
1145 |
1050 |
Max mould closing force (kN) |
4220 |
4500 |
2890 |
1920 |
1720 |
1320 |
Mould height(mm) |
254-635 |
254-635 |
245-445 |
305-505 |
230-455 |
180-300 |
Main motor power(kW) |
16 |
16 |
13 |
11 |
11 |
11 |
Apply bead specification |
19''-24'' |
19''-24.5'' |
16''-20'' |
13''-20'' |
12''-17.5'' |
12''-16'' |
Notes |
Works for the vulcanization of TBR , PCR tires or bias tires. |
If it works for curing the bias tires, the press will match with post curing inflator. |
If works for curing the radial tires, the press will match with segmented mould controller. |
