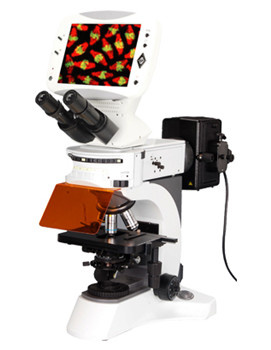

Med-L-DMS-854 Digital LCD Laboratory Biological Fluorescent Microscope
Product Specifications
| Prod Model: |
Med-L-DMS-854 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Biological Microscope: |
Pixel 5mega |
| Biological Microscope 1: |
Maximal Resolution 2560*1920 |
| Biological Microscope 2: |
Photo Resolution 2560*1920-1600*1200 |
| Video Resolution: |
640*480 |
| Sensor Size: |
1/2.5 Inches |
| LCD Screen: |
8 Inches TFT Screen, Resolution Is 800X 600 |
| Data Output: |
USB2.0 |
| Menu Language: |
Chinese / English |
| Scene Mode: |
Standard / Softness,/ Vivid |
| Exposure Mode: |
Auto Exposure |
| Type: |
Microscope |
Product Description
MED-L-DMS-854 Digital LCD Laboratory Biological Fluorescent Microscope
Features
· 8 Inches LCD screen and 5 Megapixels professional digital camera
· Directly Snapshot, Video, Store quickly with 2 G memory card
· Built -in Recitle, assist simple measurement
· Excellent fluorescent image with high resolution fluorescent objectives.
· Protect the light leak with advanced lamp housing.
· Excellent Optical Function with Infinitive Optical System
· Widely used in venereal disease examination, immuneless diagnosis, research universities and health care.
Parameters
| Model | DMS-854 |
| Digital Parts | Pixel | 5Mega |
| Maximal Resolution | 2560×1920 |
| Photo Resolution | 2560×19201600×1200 |
| Video Resolution | 640×480 |
| Sensor Size | 1/2.5 Inches |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 |
| Video Output | AV Output (NTSC/PAL) |
| Data Output | USB2.0 |
| Menu Language | Chinese / English |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) |
| Scene Mode | Standard / Softness,/ Vivid |
| Exposure Mode | Auto Exposure |
| Date Mode | Year, Month, Day, Hour, Minute |
| Optical Parts | Viewing Head | Compensation Free Binocular Head,Inclined at 30°,Interpupillary Distance 48-75mm |
| Eyepiece | Extra Wide Field Eyepiece EW10×/22 |
| Objective | Infinite Plan Achromatic Objective 4X/10X/40X/100X |
| Nosepiece | Backward Quintuple Nosepiece |
| Condenser | Swing Condenser NA 0.9/ 0.25 |
| Focusing System | Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm |
| Stage | Double Layers Mechanical Stage 185×142/ 75×55 mm |
| Kohler Illumination | External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W |
Reflected Light Source
|
| Excitation | Dichroic Mirror | Barrier Filter |
| Blue Excitation | BP460~490 | DM500 | BA520 |
| Green Excitation | BP510~550 | DM570 | BA590 |
| Lamp | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp |
| Protection Barrier | Barrier to Resist the Ultraviolet Light |
| Power Supplier | Power Supplier NFP-1,220V/ 110V Interchangeable ,Digital Display |
| Immersion Oil | Fluorescent Free Oil |
| Optional Parts | Objective | Infinite Plan Achromatic Objective 20× |
| Infinite Plan Fluorescent Objective 4×/10×/20×/40×,/100× |
Reflected Light Source
|
| Excitation | Dichroic Mirror | Barrier Filter |
| Blue one Excitation | BP460~495 | DM505 | BA510-550 |
| Ultraviolet Excitation | BP330~385 | DM400 | BA420 |
| Violet Excitation | BP400~410 | DM455 | BA455 |
| Neutral ND25/ ND6 Filter |
|
| Centering Plate |
|
