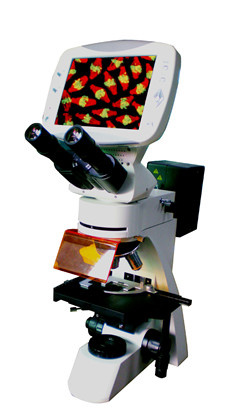

Guangzhou Med Equipment Co., Ltd. >> Med-L-DMS-855 Compound Digital LCD Fluorescence Microscope

Med-L-DMS-855 Compound Digital LCD Fluorescence Microscope

Med-L-DMS-855 Compound Digital LCD Fluorescence Microscope
Supplier: Guangzhou Med Equipment Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: Med-L-DMS-855
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LCD Fluorescence Microscope: Pixel 5mega
LCD Fluorescence Microscope 1: Maximal Resolution 2560*1920
LCD Fluorescence Microscope 2: Photo Resolution 2560*1920-1600*1200
Video Resolution: 640*480
Sensor Size: 1/2.5 Inches
LCD Screen: 8 Inches TFT Screen, Resolution Is 800X 600
Video Output: AV Output (NTSC/PAL)
Data Output: USB2.0
Menu Language: Chinese / English
Scene Mode: Standard / Softness,/ Vivid
Type: Microscope

Product Description

MED-L-DMS-855 Compound Digital LCD Fluorescence Microscope

Description

DMS-855 is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

MED-L-DMS-855 Compound Digital LCD Fluorescence Microscope Feature and Parameter

ModelDMS-855
Digital PartsPixel5Mega
Maximal Resolution2560×1920
Photo Resolution2560×19201600×1200
Video Resolution640×480
Sensor Size1/2.5 Inches
LCD Screen8 Inches TFT Screen, Resolution is 800X 600
Video OutputAV Output (NTSC/PAL)
Data OutputUSB2.0
Menu LanguageChinese / English
StorageSD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
Scene ModeStandard / Softness,/ Vivid
Exposure ModeAuto Exposure
Date ModeYear, Month, Day, Hour, Minute


Optical Parts

Viewing Head Compensation Free Binocular Head, Inclined 30°, Interpupillary Distance 55-75mm
EyepieceWide Field WF10X/20mm
ObjectiveInfinity Plan Achromatic Objectives PL 4X/0.10 , 10X/0.25, 40X/0.65(Spring), 100X/1.25(Spring, oil)
Focus SystemCoaxial Coarse/Fine Focus, with Tensional Adjustable and up Stop Minimum Division of Fine Focusing: 2μm.
NosepieceQuadruple(Backward Ball Bearing Inner Locating)
StageDouble Layer Mechanical (Size:210mmX140mm, Move Range: 75mmX50mm)
Abbe CondenserN.A.1.25 Rack & Pinion Adjustable
FilterBlue Filter , Frosted Filter
CollectorFor Halogen Lamp
Light Source6V 20W Halogen Lamp ,Adjustable Brightness
Reflected Fluorescence SystemMercury Lamp House 100W/DC
Power Supply Unit:AV:110V or 220V
Fluorescence Filter System  B Exciton Wavelength: 420~485nm
Fluorescence Filter System  G Exciton Wavelength: 460~550nm
Fluorescence Filter System  UV Exciton Wavelength: 330~400nm
Fluorescence Filter System  V Exciton Wavelength: 395~415nm
