Introduction

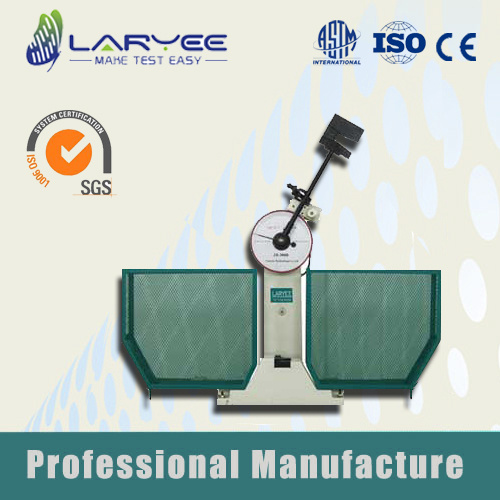

Charpy (simple-beam) Impact Testing Machine mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron material and their alloy, under dynamic load impacting.
This machine can be operated semi-automatically. The pendulum of the machine is raised or released automatically by button pressed. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine can do the test according to ASTM E23 and ISO 148 or other equal standards.
Features
1.Two Pendulums (big and small) and two scales reading which enlarge the test range of energy.
2.Safety pin guaranties the impact action. Protection shell avoids the hit and break sample splashing.
3.Electromagnetic clutch hold the rising pendulum. Power sudden off still in safety.
4.CMT21xx series Pendulum rising, impact, free releasing is realized as automatically by control remote.
Specification
| Model | CMT2130 | CMT2150 | |
| Impact energy | 150J; 300J | 250J;500J | |
| Impact velocity | 5.2m/s | 5.4m/s | |
| Raising angle | 150° | 150° | |
| Striker tip angle | 30° | 30° | |
| Anvil taper angle | 11° | 11° | |
| Pendulum Pole length | 750 mm | 800 mm | |
| Standard Sample span | 40mm | 40mm | |
| Round angle radius of grips | R1-1.5mm | R1-1.5mm | |
Round angle radius
of striking edge | R2-2.5mm | R2-2.5mm | |
| Optional striking edge by order | R8mm | R8mm | |
| Power supply | 3 Phase, ~380V/220V, 50Hz/60Hz | |
| Dimension | 2100×650×1900 mm | |
| Weight(Kg) | 500kg | 750kg |
