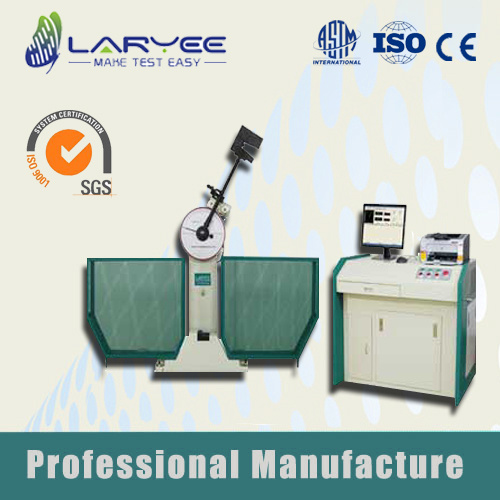

Metal Charpy Pendulum Imapct Testing Machine (CMT2330/2350/2375)

Name: Metal Charpy Pendulum Imapct Testing Machine (CMT2330/2350/2375)
Brand: china-manufacturer-directory.com
SKU: 699449862
Availability: InStock
Rating: 4.8 (68 reviews)

Supplier:	Laryee Technology Co., Ltd.
Price:	US $ 7580-16289/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	CMT2330/2350/2375
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Touch LCD Digital Pendulum Imapct Testing Machine
Impact Energy:	150j; 300j;250j;500j;750j
Impact Velocity:	5.2m/S;5.4m/S;5.24m/S
Raising Angle:	150°
Striker Tip Angle:	30°
Pendulum Pole Length:	750 Mm;800 Mm;750mm
Standard Sample Span:	40mm
Power Supply:	3 Phase, ~380V/220V, 50Hz/60Hz
Type:	Metal Charpy Pendulum Imapct Testing Machine
Maxcapacity:	150j; 300j;250j;500j;750j
Weight:	600kg, 900kg.3000kg
Power Source:	3 Phase, ~380V/220V, 50Hz/60Hz

Product Description

Introduction

Charpy (simple-beam) Impact Testing Machine mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron material and their alloy, under dynamic load impacting.
This machine can be operated semi-automatically. The pendulum of the machine is raised or released automatically by button pressed. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise. The machine can do the test according to ASTM E23 and ISO 148 or other equal standards.

Features

1.Two Pendulums (big and small) and two scales reading which enlarge the test range of energy.

2.Safety pin guaranties the impact action. Protection shell avoids the hit and break sample splashing.

3.Electromagnetic clutch hold the rising pendulum. Power sudden off still in safety.

4.CMT23xx Pendulum rising, impact, free releasing is realized as automatically by control remote and computer control software.

5.Fully Computer PCI sockets PCI DSP control card and I/O data processing.

6.Test data statistical function, store and printing function.

7.Dial gauge and software out put synchronous test result..

Specification

Model	CMT2330		CMT2350	CMT2375
Impact energy	150J; 300J		250J;500J	750J
Impact velocity	5.2m/s		5.4m/s	5.24m/s
Raising angle	150°		150°	150°
Striker tip angle	30°		30°	30°
Anvil taper angle	11°		11°	11°
Pendulum Pole length	750 mm		800 mm	750
Standard Sample span	40mm		40mm	40mm
Round angle radius of grips	R1-1.5mm		R1-1.5mm	R1-1.5mm
Round angle radius of striking edge	R2-2.5mm		R2-2.5mm	R2-2.5mm
Optional striking edge by order	R8mm		R8mm	R8mm
Power supply	3 Phase, ~380V/220V, 50Hz/60Hz
Dimension	2100×650×1900 mm			2450 × 1200 × 2455mm
Weight(Kg)	600kg	900kg		3000kg
	CMT23xxx Series
Standard Accessories	PC, Printer , Control Carbinet
	Main Machine, Protect Shell, Manual controller, Anchor Bolts, Jaws (Including support), Pendulum weight, Span specimen plate, Specimen Centering Plate

Laryee Technology is a top leading Chinese testing equipment and instrument product manufacture and solution system integration supplier.Our Headquater is located in Beijing, China.And also we have two factories which invested by LARYEE base both in Beijing and Jinan, Shandong provice.According to all kinds of testing requirement of GB, ISO, ASTM, BS EN and etc, our international technician and business team can offer our different field customer best testing solutions and general or special equipments.

Laryee's nice new products, superior technology, excellent quality and well service have won the customers all over the world.Nowadays, Laryee has the good relationship with many customers such as Southeast Asia, Middle East, Latin America, Africa, European and so on.
