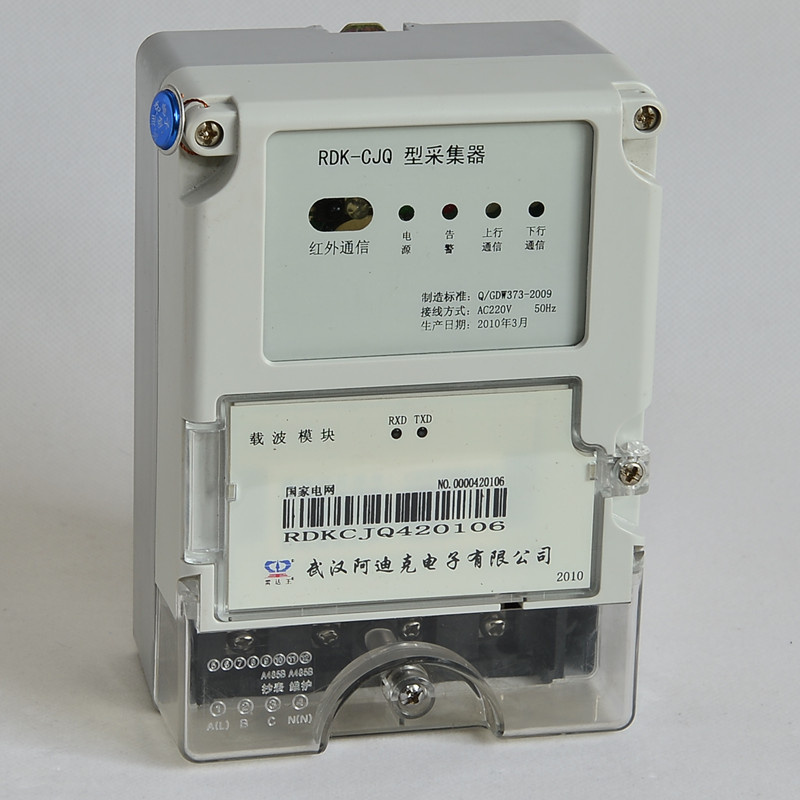

It is a device which is developed by Radarking Electrics Co., Ltd., is use for field data collection of RS485 Interface Meter Reading System. It is responsible for gathering code data of intelligence meter, then transfer it to DCU through the RS485 bus or power line carrier.
It also a smart electricity meter with RS485 and power line carrier communication interface upstream. Meter Acquisition Unit has four communication interface: RS485 communication interface uplink, power line carrier interface uplink, RS485 bus communication interface (connected to the power meter) downlink, IR infrared communication interface (for local copy of data and collector set).
Functions
Instructions and data forwarding
Meter Acquisition Unit terminal should be able to receive meter data and control instructions of DCU by upstream channel, then by the statute of conversion (communication protocol of upstream channel is converted to RS485 interface, single-phase electronic power meter) real-time transmission to the 485 power meter downstream, and then sent back the response data to DCU. Meter Acquisition Unit terminal should support all the data copied of 485 meter (including expansion of data setting identification), broadcasting schools, pull switch and instructions forwarding.
Capacity requirements
Each Meter Acquisition Unit terminal can connect 64 485 meter.
Free setup function
Meter Acquisition Unit terminal installed, ensuring properly connected, it is no need to do any operation setting, it will go well. When removal or replacement of meter, it isn't need to do any settings on terminal operations, it will go well.
Transfer function
With IR handset, it can reproduce RS485 or power line carrier network data of other MRU.
|
Operating voltage |
single phase |
|
Operating frequency |
50Hz ± 5% |
|
Active power (without communicating) |
≤ 1.2W |
|
Apparent power |
≤ 10VA |
|
Operating temperature |
-25 °C ~ +55 °C |
|
Storage temperature |
-40 °C ~ +80 °C |
|
Relative humidity |
≤ 95% |
|
Radiated electromagnetic field immunity |
80MHz-1000MHz, field strength 10V / m |
|
ESD immunity |
> 8kV |
|
Surge immunity |
> 4.0kV |
|
Fast electrical pulse immunity |
> 4.0Kv |
|
Life |
> 10 years |
|
Security |
the PC alloy shell fire |
