Product Specifications
| Prod Model: |
MH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
50-2500mm |
| Output Signal: |
4~20madc(Min. /Max. Load: 0/500 Ohm); |
| Output Signal For Choice: |
0~10VDC(Min. Load>5k Ohm) |
| Signal For Choice: |
4~20madc(Min/Max. Load>0/500 Ohm) |
| Resolution: |
Analog Output 16 Binary Digit D/a |
| Usage: |
Position Sensor |
Product Description

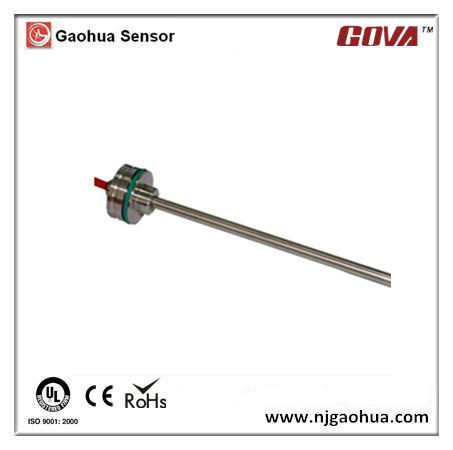

MH-Analog Linear Position Sensor
MH Series--Feature
Compact structure, small dimension
Sturdy, reliable, oil proof and stain resistance.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
| Item Name | Index Number |
| Parameter Measured |
| Measurement range | 50-2500mm |
| Output signal | 4~20mADC(min. /max. load: 0/500 Ohm) |
| 0~10VDC(min. load> 5k Ohm) |
| Resolution | Analog output 16 binary digit D/A |
| Nonlinearity degree | < ± 0.04% F. S. (min. ± 100μ m) |
| Repeatability precision | < ± 0.005% F. S. |
| Refresh time | > 500Hz |
| Electric feature |
| Outgoing line | Straight out of the cable |
| Input voltage | 24VDC(-15/+20%) |
| Working current | < 60mA(changing depends on F. S. ) |
| Polarity protection | max. -30VDC |
| Overvoltage protection | max. 36VDC |
| Insulating ability | 500V(between the signal GND and the housing) |
| Structure& Material |
| Head | Stainless steel 304L |
| External tube for protection | Stainless steel 304L |
| Installation& Accessories |
| Seal components | O-ring for sealing 40.87*3.53,NBR80 |
| Mode | Set screw ,DIN913 |
| Moving Magnetic | Magnetic ringsOD33, Magnetic rings OD25.4, Magnetic ringsOD17.4 |
| Working condition |
| Magnetic speed | Random |
| Ambient temperature | "-40ºC~+85ºC |
| Humidity/Dew point | Humidity 90%,No dew |
| Temperature coefficient | <50ppm/ºC |
| Grade of electrical protection | IP67 |
| Anti-pressure ability | 35MPa(Continuously)/70MPa(Peak value) |
| Electric connection |
| MH series sensor doesn't supply aircraft connector output. | Needle# Color Definition |
| 1,Gray,Output signal, 0~20mA, 0~10V |
| 2,Pink,Signal GND |
| 3,Yellow,(+)Communication interface |
| 4,Green ,(-)Communication interface |
| 5,Brown,+24Vdc Power supply(-15/+20%) |
| 6,White,Direct current supply(0 Vdc) |
