Product Specifications
Prod Model: |
MH |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measurement Range: |
50-2500mm |
Analog Signal: |
4~20madc(Min. /Max. Load: 0/500 Ohm); |
Resolution: |
Analog Output 16 Binary Digit D/a |
Type: |
Mh-Ssi Linear Position Sensor |
Certification: |
CE, RoHS, ISO9001 |
Product Description

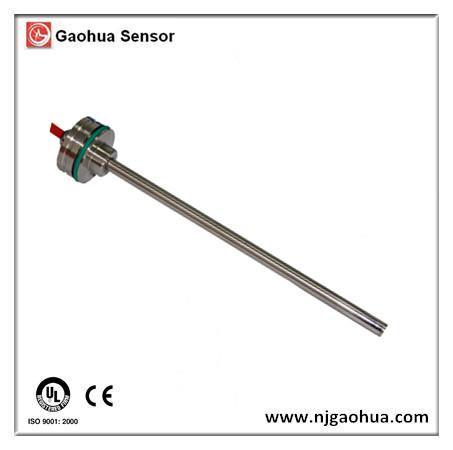

MH-Analog Linear Position Sensor
MH Series--Feature
Compact structure, small dimension
Sturdy, reliable, oil proof and stain resistance.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
Item Name | Index Number |
Parameter Measured |
Measurement range | 50-2500mm |
Output signal | 4~20mADC(min. /max. load: 0/500 Ohm) |
0~10VDC(min. load> 5k Ohm) |
Resolution | Analog output 16 binary digit D/A |
Nonlinearity degree | < ± 0.04% F. S. (min. ± 100μ m) |
Repeatability precision | < ± 0.005% F. S. |
Refresh time | > 500Hz |
Electric feature |
Outgoing line | Straight out of the cable |
Input voltage | 24VDC(-15/+20%) |
Working current | < 60mA(changing depends on F. S. ) |
Polarity protection | max. -30VDC |
Overvoltage protection | max. 36VDC |
Insulating ability | 500V(between the signal GND and the housing) |
Structure& Material |
Head | Stainless steel 304L |
External tube for protection | Stainless steel 304L |
