Product Specifications
| Prod Model: |
DLFA-mMPS-A |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Conveyor Type: |
Belt |
| Main Controller: |
PLC(Option) |
| Features: |
DC Motor and Belt Conveyor |
| Conveyor Motor: |
DC Geared Motor |
| Weight: |
20 Kg |
| Dimension: |
650*400*350mm |
| Type: |
Teaching Model |
| Laser Model: |
Technicians Education Equipment |
Product Description

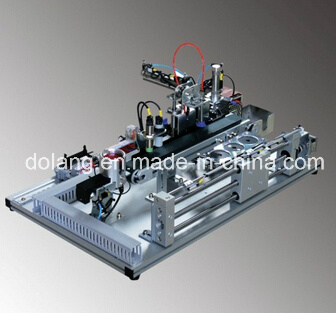

Micro Multi-functional electromechanical integration design training system device (Advanced)
DLFA-mMPS-A
1Overview
The training system is adapted to process the industrial field environments, to identify different types of artifacts detection and automatic sorting of the training system, in which a large number of applications, a variety of sensors to achieve the detection and identification of the workpiece, and then transport mechanism and sorting agency workpiece machined complete sorting.
Device as a whole consists of a feeding unit, transfer unit, detecting unit, handling unit, storage unit, a stainless steel storage boxes, buttons and other components constituting the unit, such as a motor is required to use the process of mechatronic professional study involved drive, mechanical transmission pneumatic control, sensor technology and many other applications, to provide students with a comprehensive training environment typical system, so that students master the professional knowledge is comprehensive, integrated and flexible application deepen consolidate.
II Technical parameter
1. Power input: Single-phase three-wire AC220V ± 10% 50Hz
2, the working environment: -10 ~ 40 ºC
3, the training platform
Training set using a special mold profiles, anodized coating processing, scientific structure, beautiful appearance
4, Air source
Voltage (V / HZ): 220-240 / 50 Power: 0.7kw (1HP)
Volume capacity: 116L / min (4.1C.F.M)
Noise (dB): 60 rpm (r.p.m): 1400 1680
Gas filling volume: 6L Pressure: 8bar (115psi)
III Training content
Multifunction Mechatronics Training System designed for teaching, according to the work process-oriented, engineering planning model combines teaching activities, complete the following basic experimental training projects and tasks:
1, the installation and commissioning of the pneumatic system project;
2, installation and commissioning of the sensor system project;
3, the electrical control circuit installation and the PLC program project;
4, electrical and mechanical equipment installation and commissioning project;
5, the automatic control system installation and commissioning project.
IV Professional competence
1, mechanical components assembly and adjustable ability;
2, mechanical and electrical equipment installation and commissioning ability
3, circuit installed capacity;
4, installation and debugging ability of pneumatic system;
5. integrated electromechanical control devices programs ability;
6, installation and commissioning ability of automatically control system.
)
