Product Specifications
| Prod Model: |
Tstat6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

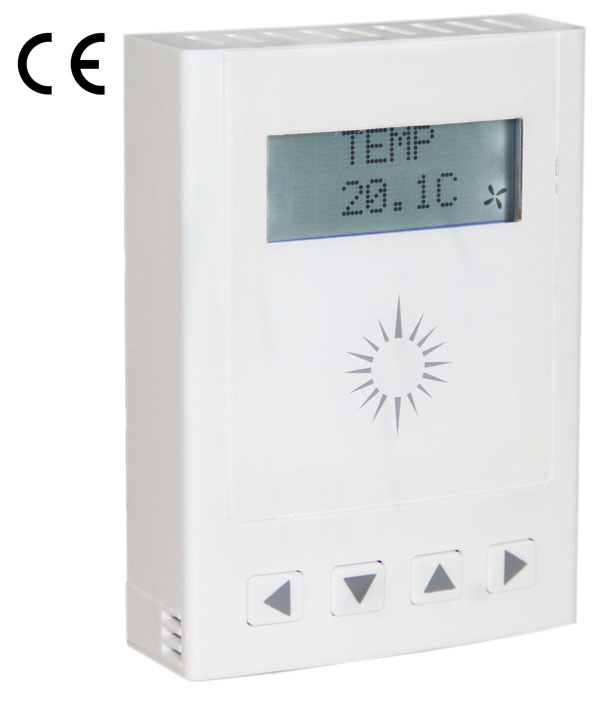

This full-featured CPU based thermostat is designed for small cooling and heating air handling systems in residential and commercial facilities. The unit provides features which eclipse standard mechanical thermostats at a price that fits conventional HVAC projects. The unit comes in several models to suit any mechanical equipment or application.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Types and price:
| Sales Price | Discount Price | OEM>50k/yr |
| Tstat6 | $39.00 | $37.00 | $36.00 |
| Tstat6-CH | $44.0 | $42.00 | $41.00 |
| TSTAT6-CO2 | $90.00 | $75.00 | $60.00 |
| TSTAT6-ZIGB | $55.00 | $53.00 | $51.00 |
| TSTAT6-OCC | $41.00 | $39.00 | $38.00 |
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Highlights:
- High accuracy temperature sensor and PI algorithm provide a comfortable indoor environment.
- 8 external inputs for auxilliary monitoring of external temeprature sensors, dry contacts, 0-5 and 0-10V sensors.
- Customizable sequence of operations for multi speed fan coils, VAV, heat pumps, air conditioners, zone valves, heaters, etc
- Tstat6 with C02 sensor now available. All the powerful features of the Tstat6 zone control with a C02 sensor built in.
-Zigbee wireless option now available, 20db transmitter for robust long range mesh networking.
- Over 300 parameters make this one of the most flexible thermostats on the market. If we're missing some features let us know and we'll add them.
-Modbus protocol for easy integration with automation systems. Bacnet available using the T3-NC modbus to bacnet gateway.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Specifications:
| TSTAT6 |
5 relays x 2amps @24V, 7 analog inputs,
2 analog outputs (10V @100ma) |
Operating temperature | -30-70°C(-22~158°F) |
| Supply voltage | 12~24VAC/DC ±20%, 50-60Hz |
| Power consumption | 100mA at 12VDC |
| Relay contacts rating |
2A @ 24VDC, 0.5A @ 125VAC
UL File No.: E43149
CSA File No.: LR26550 |
Ambient humidity | 10-90 %Rh |
| Operating Environment | 0 ~ 99% humidity non condensing |
| Plastic Housing | Flammability rating UL 94V0 le E194560 |
| Enclosure rating | IP31 |
| Temperature sensor | 10K thermistor ±0.5°C |
| Colour | White/Off-white |
| Weight | 200g |
Temco Controls has been in business since 1979. Our headquarters are in Vancouver Canada, the R&D and manufacturing base is in Shanghai China.
Our claim to fame is our tstat5 thermostat, the world's lowest cost communicating thermostat.
We specialize in developing custom solutions for our manufacturing partners such as air conditioning controls, valves, thermostats, sensors, actuators and miscellaneous 'widgets'.
