Product Specifications
| Prod Model: |

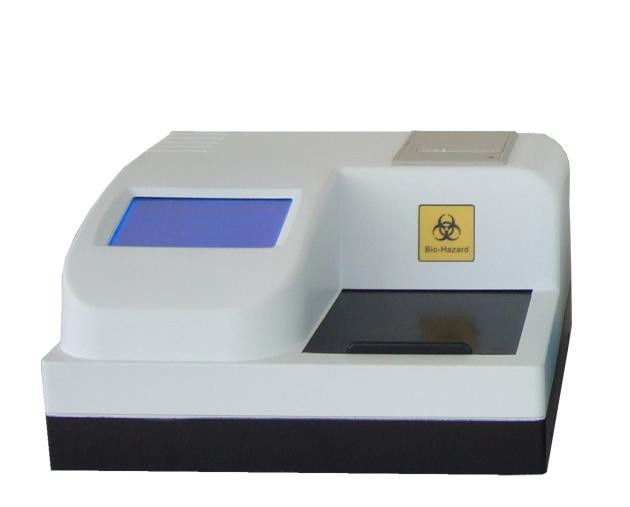

TPS-SM600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Technical Parameters
Display
240× 128 LCD Touch screen(blue Backlight)
Computer Connector
RS232 9 needle
Suitable Micro plate Type
96 wells, Flat bottom, U bottom, V bottom
Shake
3 kind of intensity, can fit the exact time
Memory
200 programs, 1000 plates result
Light Source
Tungsten Halogen lamp, lamp saver function, 12V, 20W
Wavelength range
400-750nm
Optical sensor
8 photodiode
Standard filters
405, 450, 492, 630nm standard filter 4,
Optional filters
4free positions for optional filters
Reading speed
Single wavelength<5sec/single, Duble wavelength<10sec
Absorbance range
0.000 - 3.500 Abs
Resolution
0.001 Abs
Stability
± 0.003 Abs
Accuracy
Δ A≤ ± 0.01(0≤ A<1.0);
≤ 2.5%(A≥ 1.0);
Sensitivity
≥ 0.01 Abs
Repeatability
≤ 0.2% (0≤ A≤ 1.5Abs);
≤ 1.0% (A1.5Abs);
8 Channel differences
≤ 0.02
Linearity
≥ 0.999
Internal printer
57mm thermal printer
Voltage
AC 100-240V, 50Hz/60Hz
Power
90VA
Volume(Instrument)
318*286*168mm
Net weight
6.5Kg
Gross weight
8.7Kg
Outer box
45*41*29cm
Working temperature
10º C— 30º C
Working humidity
≤ 85%
Storage temperature
0º C— 55º C
Storage humidity
≤ 95%
Operation language:
English and Chinese
PC software
Optional accessories
