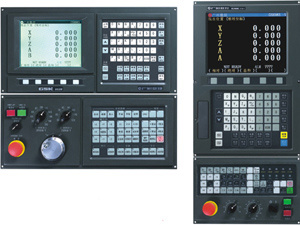

Milling CNC System (Analog) (GSK983M)

Name: Milling CNC System (Analog) (GSK983M)
Brand: china-manufacturer-directory.com
SKU: 621893762
Availability: InStock
Rating: 4.5 (59 reviews)

Supplier:	CNCmakers Limited
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	GSK983M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia

Product Description

GSK 983M is a high cost-performance and high reliable CNC developed especially for high speed, high precision and high efficient machining. Due to the applied high speed micro processor and high speed and precision servo system as well as sufficient CNC and high speed PLC functions, the machining efficiency has truly realized a higher standard.

High precision machining:
The high precision and high resonance position control has been realized by high performance position closed loop control chip and high precision position detecting components.
The mechanical errors in transmission chains such as pitch error of ball screw can be remedied by pitch memory error compensation.
Feedrate override can be automatically adjusted in the corner contour machining.

High speed machining:
When the system resolution is 1μ M, the highest feedrate can reach 240m /min which is suitable for the control of milling press, MCs, engraving machinery and super precision machine tools. The continuous high speed machining of micro block is realized by the distributed processing of multi-high speed CPU. The super processing capability of 1000 instruction words per second is especially suitable for the machining of high speed mould, auto parts and the control of woodworkers and laser machinery.

High speed DNC functions:
The specially developed high speed DNC buffer interface realizes the high speed DNC machining by the connection to PC or U disk at the baud rate as high as 115200.

Sufficient control functions:
It has the functions of maximum 5 feeding axes plus 1 spindle control, cutting tools life management, scaling, coordinate system rotation, complex canned cycle, background editing, graphics display and special user macro program that can easily carry out some special machining.

Powerful built-in PLC

The built-in sequence control for machine and the large PLC capacity for peripherals have greatly simplified the strong power design.

PLC-A 2000 steps PLC-B 12000 steps

Smart CNC

It adopts the latest high integral FPGA, CPLD chips and surface sticking adornment techniques which greatly reduces the dimensions of the control unit. And the LCD displayer adopted realizes the thin model of display unit.

Module I/O

The module design adopts I/O unit which can be paralleled by requirement with maximum (input/output) points are 192/128. It can be fixed on the standard DIN rail to directly drive the load such as contactor, which makes the strong power design much simple and the space taken up is much more reduced.

The machine operation panel

It has maximum 64 mechanical keys with a LED indicator for each. Their function specified by PLC programming and also they can correspondingly connect the switches of feedrate override, spindle override, MPG override and coordinate axis.

NC function
Controlled axis	Controlled axis and link axis: up to 5 feed axes, 1 spindle and 5 link axes Standard allocation: 3 axes and 3 links, optional allocation:4 axes and 3 links, 4 axes and 4 links, 5 axes and 3 links, 5 axes and 4 links, 5 axes and 5 links.
	Interpolation method: linear(G01), arc(G02, G03),sine(G07)
	Max. stroke: metric:±99999.999mm;inch:±9999.9999inch
	Setting increment :	Least input increment:0.001mm/metric 0.0001inch/inch
		Least increment:X axis:0.001mm/metric 0.0001inch/inch Y axis:0.001mm/metric 0.0001inch/inch Z axis:0.001mm/metric 0.0001inch/inch
	Max. traverse rate	60,000mm/min or 2400inch/min
	Max. feedrate	G94:30,000mm/min or 1200.00inch /min
		G95: 500.00mm/rev or 50.0000inch/rev
	Automatic acceleration/deceleration: the system automatically executes the linear acceleration/deceleration to shorten the positioning time when the rapid feed is executed in Jog or Auto mode
	Automatic acceleration/deceleration in cutting feed mode: the exponential automatic acceleration/ deceleration is executed in the cutting feed or manual continuous feed mode, and its time constant can be set by the related parameters from 8ms to 4000ms.
	Soft tapping function (standard allocation function); rigid tapping function (optional function).
	Buffer register: advance to read the commands of the following two blocks to eliminate the interruption of NC command caused by reading the commands to improve the working efficiency.
G commands	66 kinds of G command: G00, G01, G02, G03, G04, G07, G09, G10, G17, G18, G19, G20, G21, G22, G23, G27, G28, G29, G30, G31, G33, G40, G41, G42, G43, G44, G45, G46, G47, G48, G49, G50, G51, G54, G55, G56, G57, G58, G59, G60, G61, G62, G64, G65, G66, G67, G73, G74, G76, G80, G81, G82, G83, G84, G85, G86, G87, G88, G89, G90, G91 G92, G94, G95, G98, G99
MSTB function	Tool function:T2 digit/T4 digit .99 groups tool offset .tool position offset .tool length compensation .tool nose radius compensation B/C
	communication input of tool offset value . tool length measure
	Spindle function S:S2 digit/ S4 digit A(12 digit BCD output/analog output) .S4 digit B(12 digit BCD output/analog output)(4-grade gear input). max. spindle speed limit.
	auxiliary function M:specified by the sequential 2 digits after address M. End of program:M02, M30,program stop:M00,optional stop:M01,subprogram call:M98,end of subprogram:M99. Other M functions can exclusively be defined by user.
	The second auxiliary function B: it is specified by the sequential 3 digitals behind B, and BCD signals of the three digitals are transmitted to the machine side. The function is used for the positioning of graduation worktable,
Precision compensation	stored pitch error compensation: compensate the error caused by machine position to improve the processing precision and the compensated data is stored to the memory.
	backlash compensation: compensating the loss momentum of machine
	Tool length compensation and tool nose radius compensation:the tool length compensation is executed by G commands(G43,G44,G49)and the tool nose radius compensation by(G40,G41,G42), the compensation value for every tool is stored to the memory. Max. compensation value: ±999.999mm or ±99.9999inch.
Reliability and safety	emergency stop;overtravel;.stored stroke limit;.NC ready signal;.servo ready signal;.MST functional completion signal;.start signal in automatic run;.automatic running signal;.feed hold indicator signal;.safety door interlock signal;
	NC alarm:.program error and operation error;.overtravel error;.servo system error;.connection error, data transmission error between MDI and CRT, PLC error;.memory(ROM and RAM)error; More than 1,000 alarm signals to provide for the system to get the stable operation and troubleshooting.
	Self-diagnosis: execute the following checks:system abnormity;.position control abnormity;.servo system abnormity;.CPU abnormity;.ROM abnormity;.RAM abnormity;.data transmission between MDI and the machine operation panel;.RS232 read abnormity;.PC data transmission abnormity and so on.
Operation	dry run .interlock. single block . optional skip block .manual absolute value ON/OFF .auxiliary function lock(M. S.T lock) machine lock .feed hold .cycle start .overtravel release .emergence stop .external reset signal .external power supply ON/OFF .manual continuous feed .incremental feed .MPG .skip .additional optional block skip .rapid feed overshoot .manual insertion function .sequence number search .program number search .external workpiece number research .external data input .sequential number comparison stop .program start again .menu switch .graph display .external position display
Display	983M-S: 7.4inch 640×480 homochrome LCD screen 983M-V: 10.4 inch 640×480
	system parameter, diagnosis number, alarm number, macro variable value, tool offset setting, MDI command, MST state . actual axis speed, . machining path graph . Run time and other NC commands and state information
PLC function	Control method:cycle run; run speed:15us/step for basic command
	Input/output:192/128,PLC capacity 2000steps
	Development method: PLC command or ladder diagram
	Command amount: 34 including 12 basic commands and 22 function commands
DNC function	Serial DNC can be connected with U disk (option)
