Product Specifications
| Prod Model: |
C1000T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Combination |
| Task: |
Program |
| Mathematical Model: |
CNC |
| Signal: |
Digital & Pulse 0~10V |
Product Description

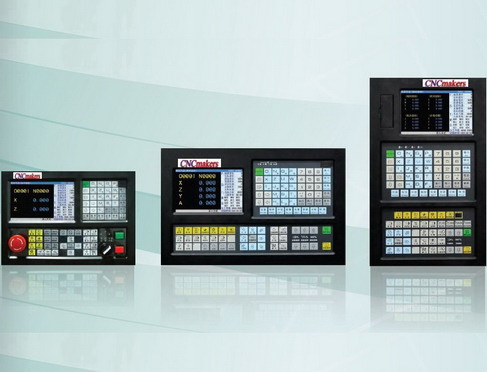

C-1000T\C-1000T-V Lathe CNC Controller:
Control Axes: 5 axes(X\Z\Y\4th\5th) 4 axes simultaneously
C-580T Lathe CNC Controller:
Control Axes: 2 axes(X\Z) 2 axes simultaneously
C-1000T\C-1000T-V supports 5 feeding axes, 4 axes simultaneously and 2
Analog spindles
C-580T supports 2 feeding axes, 2 axes simultaneously and 1 analog Spindle
1ms interpolation cycle, 0.1um control precision
C-1000T\C-1000T-V: Two way 0V~10V analog output, supports 2 spindles
580T: One way 0V~10V analog output
Linear, exponential, and S-shaped acceleration and deceleration mode can be chosen
Multiple PLC, current PLC can be switched
C-1000T\C-1000T-V supports PLC on-line display, monitoring and real-time signal tracking
Statement-style macro programming, macro call with parameters
Metric/imperial Programming, auto tool setting, auto chamfering,
C-1000T\C-1000T-V supports tool life management too
Chinese/English interface selected by parameter
Supports alarm and operation history, easy to management
Multiple password protection levels
C-1000T and C-1000T-V support 36 inputs/36 outputs
C-580T supports 16 inputs/16 outputs
USB supports file operation and directly processing, system setting and
Software upgrading
Position Command Range:
Metric Input(G21): -9999.9999mm~9999.9999mm, Minimum input: 0.0001mm
Imperial Input(G20): -999.9999inch~999.9999inch, Minimum Input: 0.0001 inch
Electronic Gear: Command Clock Multiplier Factor 1~65536, Division Factor 1~65536
Rapid Traverse Speed: Max. 60m/min
Rapid Override: F0\25%\50%\100% four grade, real-time switch
Cutting Feed rate: Max. 15m/min(G94)or 500.00mm/r(G95)
Feed Rate: 0~150% sixteen grade real-time switch
Manual Feed Rate: 0~150% sixteen grade real-time switch
MPG Feed Rate: 0.001mm\0.01mm\0.1mm\1mm four grades
Single Step Feed Rate: 0.001mm\0.01mm\0.1mm\1mm four grades
Interpolation Method: Linear\Circular\Helical and Rigid Tapping Auto Chamfering
Commen Thread( Follow Spindle)/ Rigid Thread
Single/ Multiple Thread by Metric or Imperial\Tapper Thread and End
Thread, Constant Pitch Thread, ES-1000T\ES-1000T-V supports Varialbe pitch Thread too
Gewindeauslauf length\angle and speed can be set
Pitch: 0.01mm ~ 500mm or 0.06 teeth per inch~ 2540 teeth per inch
Cutting Feeding Acceleration and Deceleraton:
Linear type, S type or Index type
Rapid Traverse Acceleration and Deceleraton:
Linear type, S type or Index type
Thread Cutting: Linear or Index type
The starting speed, finishing speed and time of acceleration and
Deceleration are set by the parameter
Manual and MPG are control by afterward acceleration and deceleration
MPG supports immediate stop or full run mode.
Rapid positioning supports straight line or fold line
C-1000T, C-1000T-V supports two way 0V~10V analog output and double spindle control
580T supports one way 0V~10V analog output
Spindle Encoder: Lines can be set between( 100 p/r~5000p/r)
Gear Ratio between encoder and spindle: (1~255): (1~255)
Spindle Override: 50%~120% totally 8 grades real-time switch
Spindle constant surface speed control
Rigid Tapping
|
Thread Error Compensation: Compensation Points, distance and reference point can be set Backlash Compensation: Fix frequency way, or Acceleration and Deceleration way **************************************************** Tool length compensation Tool nose radius compensation(C type) Tool wearing compensation C-1000T, C-1000T-V supports tool life management Method of tool setting: Tool setting in fixed position, Trial cutting tool-setting, Return to reference point, and Auto tool-setting Tool offset executing mode: Rewrtiting coordinate mode, tool traverse mode **************************************************** Program capacity: 56MB, max. 400 programs(including subprograms & macros) Editing function: program/ block/ characters search, edit, delete, copy and paste Program format: ISO code, support macro command programming in sentence type, programming of relative coordinate, absolute coordinate and hybird coordinate Program calling: support macro program with parameter, subprogram nesting of 4 layers **************************************************** Operation mode: Edit, Auto, MDI, Mechanical zero return, MPG/Single step, Manual, Program zero return Operation authority of multiple-level management Alarm record **************************************************** PLC program in two levels, maximum 4700 steps, 1.5μ s/step; the refresh cycle of the 1st level program: 8ms Support PLC warning and PLC alarm Multiple PLC program(Max. 20), the current running PLC can be selected Command amount: 45(Including basic command 10, functional command 35) I/O unit input/output: C1000T, C1000T-V: 36/36 ES-580T: 16/16 **************************************************** 7” LCD wide screen, Resolution 800X480 Display in Chinese/English Display in two-dimensional tool path Real-time clock **************************************************** RS232: Programs and parameters transmission in two ways supports PLC program and CNC software upgrading USB: File operation and file directly processing in flash disk supports PLC program and CNC software upgrading **************************************************** Emergency stop Hardware tracel limit Software travel limit Data restoring and recovering **************************************************** Com software and PLC ladder diagram editing software can be used to edit ladder diagram part program, parameter, thread error compensation data, tool compensati o n data in PC, upload and download files and data between PC and CNC, The softwares runs in WIN98/2000/XP/ME |
