Product Specifications
Prod Model: |
HJD-MB2061B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue and White |
Size: |
2700*1268*1680mm |
Original Place: |
Shunde Foshan, China |
Application: |
Wood Working |
Feeding Speed: |
7-16m/Min |
Total Power: |
21.07kw |
Dimension: |
2700*1268*1680mm |
Working Thickness: |
150mm |
Certification: |
SGS |
Product Description
Two Side planer Woodworking Machine (HJD-MB2061B)1. Auto grease device keeps the machine always lubricated working,
2. The proximity sensor for thickness display is used to control the motor stop by inspecting rotation circles of motor to ensure adjustment of precision,
3. The products is provided with imported digital device, which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm, besides, upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working,
4. With good shock absorption, stability of iron casting lathe and CNC machining center it can process all materials once provide a good basis for knife spindle and feeding.
5. The main spindle is processed specially and the other imported spindles with high precision can well support the whole machine.
6. With elastic pedrail scratcher(optional in lift functions), the pressed distance of the elastic scratchers can be chosen according to the thickness and bending degree of the wood so as to increase the marching accuracy and strengthen the feeding power.
7. Auto grease device keeps the machine always lubricated during working.
8. The proximity sensor for thickness display is used to control the motor stop by inspecting rotation circles of motor to ensure adjustment of precision.
9. The product is provided with imported digital display device which can be operated directly to processing thickness from operating panel with the accuracy up to0.05mm beside, upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working
SPECIFICATION AND MODEL | HJD-MB2061B |
Max. working width | 610mm |
Max. working thickness | 150mm |
Min. working thickness | 15mm |
Min. working length | 320mm |
Cutter knife | 3pcs |
Spindle rotation rate | 4500r/min |
Feeding speed | 7-16m/min |
Top spindle power | 11kw |
Bottom spindle power | 7.5kw |
Feeding motor power | 2.2kw |
Elevating motor power | 0.37kw |
Total power | 21.07kw |
Dimension | 2700*1268*1680mm |
JasmineFoshan HJD Machinery Manufacturing CO.,LTD

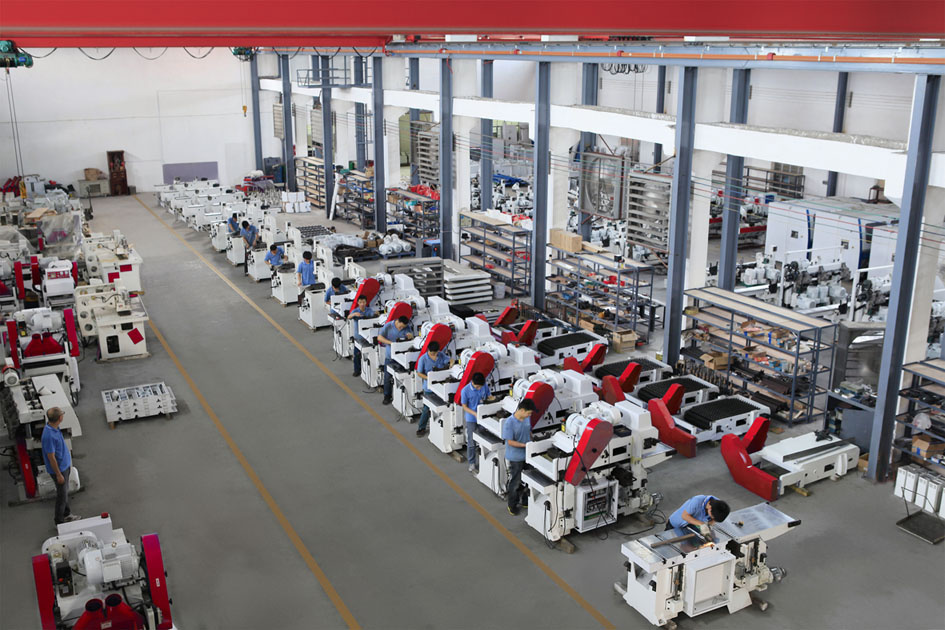

Foshan City Shunde District Heng Jie Da Machinery Manufacturing Co., Ltd. is located in Beijiao Town, Shunde District, Foshan City, Guangdong Province, adjacent to Lunjiao Town which is known as "China Woodworking Machinery Town". It is a high-tech enterprise specializing in production of woodworking machinery and has many senior engineers who have been engaged in R&D of woodworking machinery for several decades. This factory covers 150000 Square meters and with over 10 years rich experience in this woodworking machinery line. The equipment comes from Taiwan, Germany and Italy.
In the tenet of "Develop by Credit, Survive by Quality", the company makes constant improvement on parts and guarantees that the accuracy of every working procedure is in the best state by right of its precision machining equipment, sound detection equipment and solid technical power. The key parts are imported from Europe, America, Japan and Taiwan, which ensure the high precision of the whole machine, and make a guarantee for international top quality and cheap price.
With the aim of manufacturing internationally first-class wood working machinery by advanced technology, The company has passed the ISO9001: 2008 international quality system certification, and superb technical woodworking machinery manufacturing world-class goal. The company's products have obtained European CE certification, the company's products are sold to the East, Scandinavia and South America. Moreover, in the corporate philosophy of "Quality First, Service Supreme", it sincerely provides top-quality products and perfect after-sales services for customers. Welcome to contact us for common splendid future!
