Product Specifications
| Prod Model: |
TW5501/4C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Mini Air Compressor for Sale |
| Model: |
Tw5501/4c |
| Voltage: |
100~220V / 50~60Hz |
| Pressure: |
1~8 Bar Range Agjustable |
| Air Flow: |
115~30 L/Min |
| Package: |
Wooden Box Packing |
| Payment: |
Tt, L/C or as Your Demands |
| Delivery: |
5~7 Work Days After Payment |
| Manual: |
English Manual Instructions |
| OEM: |
Available |
Product Description

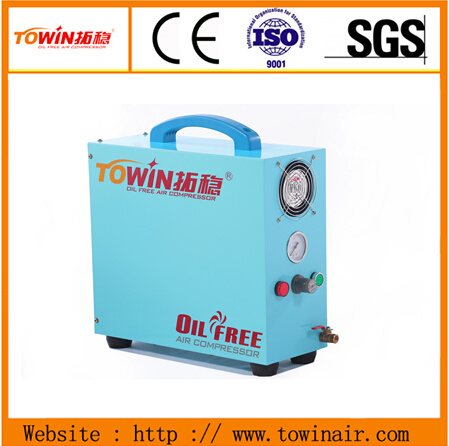

Mini Air Compressor for sale TW5501/4C
1) SGS, CE, ISO9001, TUV
2) mutiple filteration
3) oil free & low noise
4) stainless material for straight connector and pressure gauge
5)2 years guarantee
OUR COMPANY
Shanghai Towin Machinery Co., Ltd. Specializes in all kinds of silent oil-free air compressors, screw air compressors for years. We are leading manufacturer in Shanghai, China. With our professional team, we could satisfy yr different air needs. Inquiry by phone will be warmly welcome, for more favourable prices. Also, you are warmly welcome to visit our factory and office in Shanghai. With the imported quality, domestic price, we create the biggest value for our customers, products sell well in domestic, and export to nearly 200 countries and regions in the world.
MAIN COMPONENTS PERFORMANCE
Compressor Main Engine:
1 100% copper coil adopted. Resisting the high temperature, making sure its stable running;
2 SKF bearings adopted. Low noise, stable running
3 piston ring adopted. Small abrasion, making its continous running for almost 20000 hours above.
4 Two-way axial flow fan. To cool the main engine, low temperature and longevity.
Air Tank:
1 pressure vessel inspection certificate available
2 Tank inside and outside have done the anti-rust treatment to make sure the purity of air
3 100% 1.32Mpa hydrotest, no leakage.
Air Filter:
Imported filter paper adopted, getting rid of the dust in the air and lower the noise meanwhile.
Pressure Swich:
Electronic and electrical adopting the international advanced level of technology, making sure its superior insulativity under wetting, loading, high temperature conditions.
Pressure Gauge; Straight Connector:
Stainless steel materials, high anti-oxidation performance.
ADVANTAGES
1. Oil free: Do not need any lubricated oil, and harmless to the human body.
2. Super silent: Noise level lower than 56dB(A) to reduce noise pollution.
3. Multi-phase filteration: Advanced multi-phase filtration to ensure extremely clean air, and lengthen service life.
4. Safety using: Air compressor motors equipped with thermal prevention device to avoid overheating and protect motors.
5. Clean tank: All air receiver tanks have internal epoxy coating applied to avoid corrosion.
6. Automatic adjustment: High quality pressure switch used to control the power of air compressor automatically by adjustment of pressure level.
7. Pressure adjustment: Working pressure could be adjusted to meet the demand of different supporting equipments.
8. High durability: Serviceable time exceeds 15, 000 hours.
9. Simple operation: Using directly when connecting with power.
10. Easy maintenance: No need any lubricated oil.
11. Warranty: 2 years.
Equipped with Our:
1)Sound-reducing box: Delicate appearance, customerized design, could meanwhile lower a 10 db(a)sound, really bring you a more quiet environment.
2)Air Dryer: To lower the temperature(due to our condenser) and meanwhile dry the moisture(due to our desiccant: 20% aluminium oxide; 80%molecular sieve)of the compressed air, make the outlet air more clear, more dryer.
OUR SERVICE
A. Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition, and then count the cost for full sets of equipment.
B. In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot, until user can skillfully operate the equipment.
C. After-sales supports: We provide technical support to customers all the year around, and do not charge any service and consulting fee. Gurantee for 2 years.
APPLICATION FIELDS:
Dentistry; Medical; Laboratory; Pharmacy; Food Fermentation; Life Science; Biotechnology; Analytical Instrument
CONTACT:
Bella Gan
0086-21-18701247492
|
Description |
mini air compressor for sale |
|
Model |
TW5501/4C |
|
Power |
550W [0.75HP] |
|
Pressure |
0.1~0.8 Mpa |
|
Air Displacement |
115~30 L/min |
|
Noise Level |
43 dB(a) |
|
Tank Capacity |
4 L |
|
Speed |
1450 R. P. M. |
|
Net/Gross Weight |
17/22 Kg |
|
Size |
515*199*472 MM (L*W*H) |
|
Warranty |
2 Years |
|
Voltage frequency |
100~240V 50~60Hz |
Shanghai Towin Machinery Co., Ltd, set up the factory in 2000, located in Shanghai, China, specializing in develope, reseach, production, sales of air compressor for over 15 years. Our products include: Screw air compressor(oil-lubricated and water lubricated), silent oil free air compressor, cabinet type air compressor, explosion-proof oil free air compressor, adsorption dryer, precise filter, all kind of spare parts and etc. After 15 years of taials and hardships, Towin has acquired professional manufacturing experience and first-class comprehensive strength of science and technology talent team, as the energy saving air compressor system leader all over the world. Step into the energy saving air compressor system leader in the world. Towin has deep industry background, always one step ahead ambition, and the enthusiasm in the air compressor industry. With constant innovation, it confronts the challenges ahead and keeps moving rigorous attitude, to provide energy saving, reliable, low noise pr
Oducts. The perfect union of excellent machinery industry and IT technology, significantly improved the energy efficiency of the air compressor system, and greatly reduced the production costs of operation. Towin employees have the ability to meet the expectations of customers all over the world and build long-term business relationship of cooperation. We will continue to surpass ourselves, thus continuously create values for customers, and provide better quality of technology, products and services.
