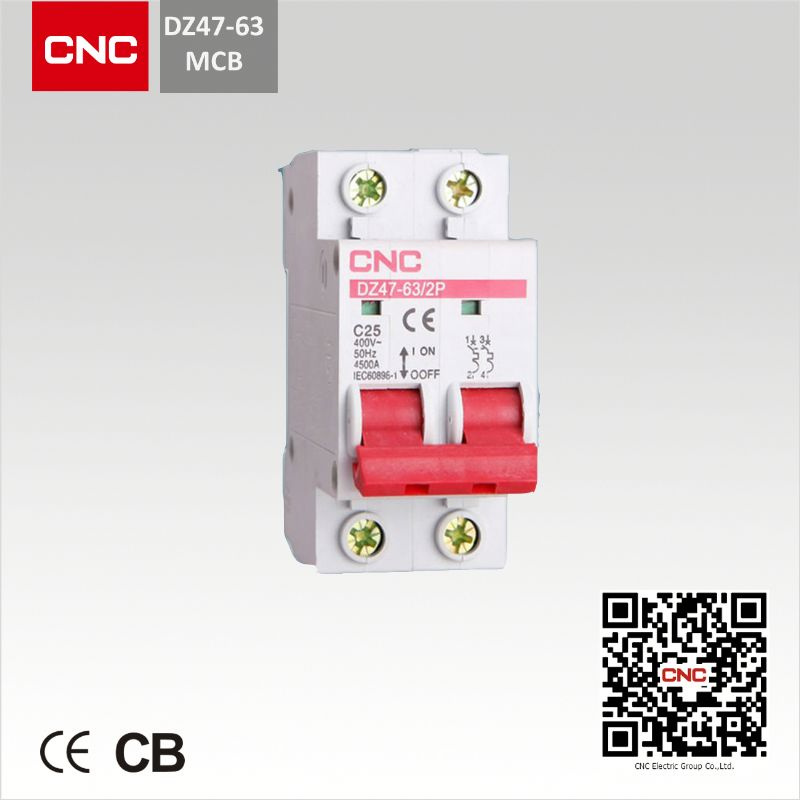

Mini Circuit Breaker DZ47-63 (C45N)
Product Specifications
| Prod Model: |
DZ47-63(C45N) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Poles Number: |
1 |
| Certification: |
CB |
| Structure: |
Conventional Circuit Breaker |
Product Description
About CNC
1. China Top 500 Enterprise.
2. 26 years rich experience in manufacturing electrical products.
3 . Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC,CE,CB, IEC, ICO certificate and standard.
CNC Circuit Breaker
1. We have new designed circuit breaker by our R&D Dpartment.
2. Perfect testing system ensure each product is qualified.
3. Annual output is about 15,000,000 Poles.
DZ47-63 Miniature Circuit Breaker/MCB (C45N)1. Application: DZ47-63 High quality c60 mini circuit breaker series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the system. The product is neoteric in structure, lig ht in weight, reliable and excellen t in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting.2. Advantages: The product is neoteric in structure, lig ht in weight, reliable and excellen t in performance. Its frame and parts adopt plastics of high fire resistant and shockproof. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or two, three, four poles up to 415V circuit for overload and short circuit protection, as well as for unfrequently switching electric equip ment and lighting
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax.But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
Packaging & Shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery. We mainly use China post air mail / Hong Kong post air mail / Singapore post air mail/DHL/UPS/FEDEX/EMS.China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual;DHL/UPS/FEDEX takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
Company Information
Do you know about us?
1.China Top 100 Industrial Electrical Enterprise
2.Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
| Electrical features | Rated current In | A | 1.2, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Poles | P | 1.2, 3, 4 |
| Rated voltage Ue | V | 230/400 |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 3000, 4500 |
| Rated impulse withstand voltage (1.2/50) Uimp | V | 4000 |
| Dielectric test voltage at ind. Freq. for 1 min | Kv | 2 |
| Pollution degree |
| 2 |

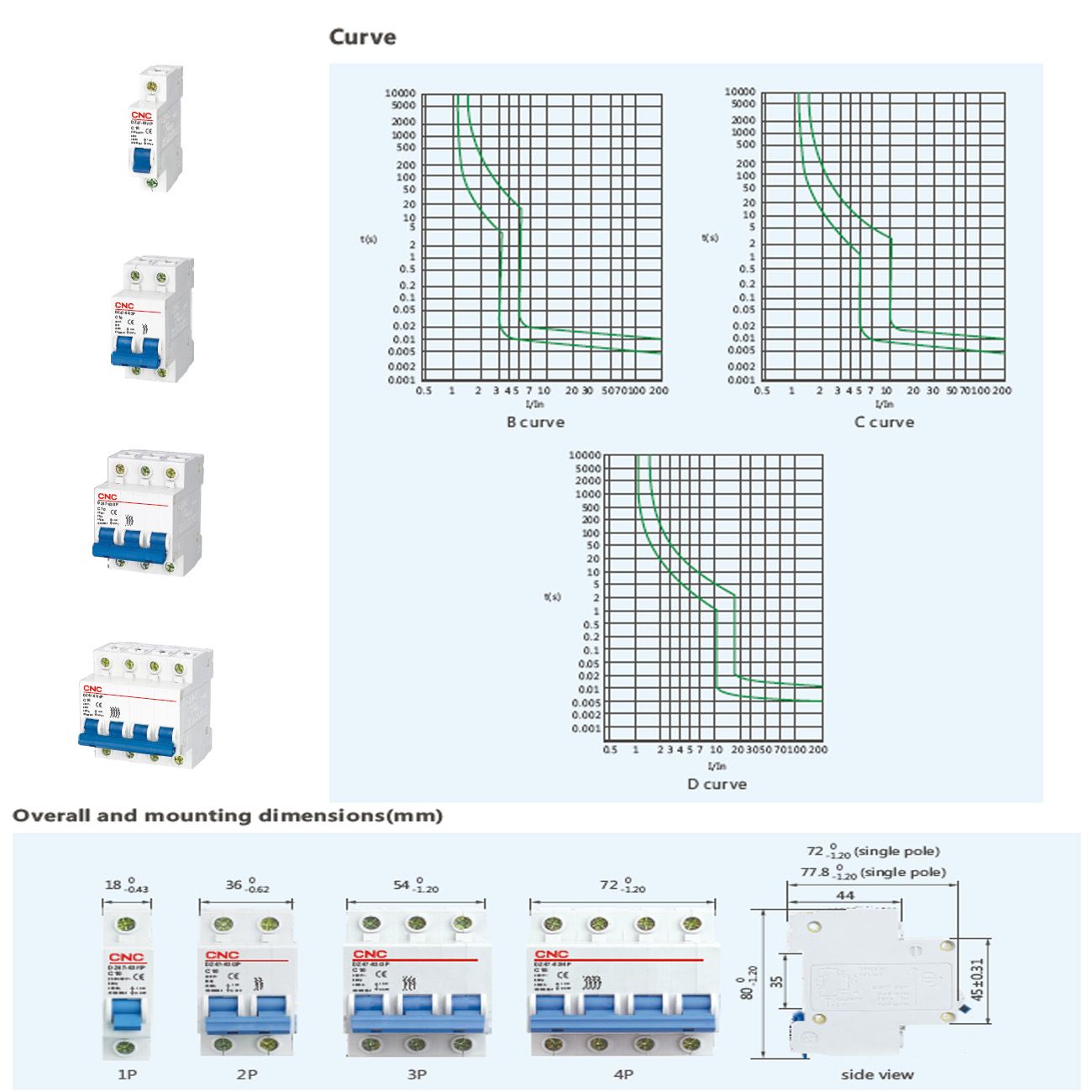

| Thermo-magnetic release characteristic |
| B, C, D |
| Mechanical features | Electrical life | t | 4000 |
| Mechanical life | t | 10000 |
| Protection degree |
| IP20 |
| Reference temperature for setting of thermal element | º C | 30 |
| Ambient temperature (with daily average≤ 35º C) | º C | -5~+40 (special application please refer to temperature compensation correction) |
| Storage temperature | º C | -25~+70 |
