Hystou Technology Co., Limited >> Mini ITX PC Intel Atom N270 1.6 G (EG_X86)

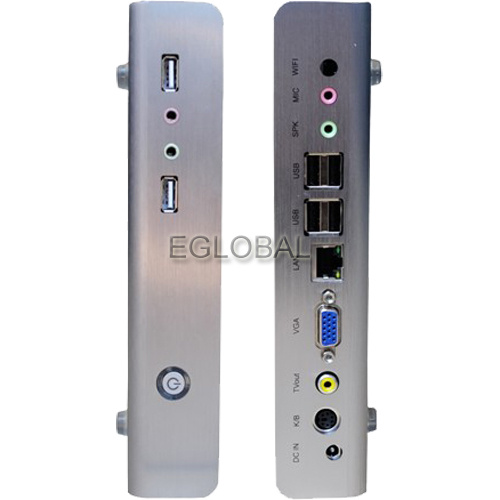

Mini ITX PC Intel Atom N270 1.6 G (EG_X86)

Name: Mini ITX PC Intel Atom N270 1.6 G (EG_X86)
Brand: china-manufacturer-directory.com
SKU: 672446812
Availability: InStock
Rating: 4.6 (57 reviews)

Supplier:	Hystou Technology Co., Limited
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	EG_X86
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Mini itx PC size only 205*140*40mm, Mini Itx PC X86 use Intel Atom N270 1.6 G CPU, mini fanless computer design make this Mini Itx PC totally silence and low consumption. Zero maintenance, easy HOST control, save eneygy and save cost. OEM service supplied for this Mini Itx PC.

This Mini itx PC support dual working mode, you can use it alone or use it as thin client. Terminal is tutally new style thin client terminal. Pure metal mini computer case make it strong and slap-up.

As a normal desktop computer, this mini itx PC has powerfull Intel Atom N270 1.6 G CPU, 1G DDR2 memory and 8G SSD (Up to 320G Harddisk is available), pre-installed Windows XP, so you can use it to finish any of your office work, also entertainment function; As a Thin client PC Station Terminal, it has thin client software to install in host and terminal, so it can connect to HOST and share all the resources of the HOST. Compare to normal PC Station, this X86 terminal is much powerfull, support almost all kind functions that you want for a normal computer.

General
CPU	Intel N270 Core 1.6 G main Frequency, 533MHz External Frequency, 512 MHz Cache Consumption 4W, fanless, whole computer consumption less than 20W
System	Pre-installed XP
Memory	DDR2 SO-DIMM 1GB, Max 2GB optional
Lan	1 * RJ45 RTL8111DL 10~100~1000M self-adaption lan card
Graphics card	Intel GMA950, 128M video memory standard, max 256M
Harddisk	SATA SSD 8GB, notebook HDD 160G, 320G,500G optional
Performance
CPU port	BGA Packaging, Onboard CPU
Chipset	Intel® 945GSE Express Chipset MCH: 945GSE + ICH7 mBGA FWH
BIOS	AMI BIOS, ACPI supported
Memory	1* SO-DDR2 SDRAM slot, max 2G DDR SDRAM PC533/667/800 DDR SDRAM
Lan	RTL 8111DL 10/100/1000 BaseT LAN, support diskless RPL or PXE guiding
Audio Card	ALC662 chip, 6 channel sound card
I/O	FINTEK71862FG chip, 1 * parallel LPT, 2* RS232, COM port 9th pin support 12V and 5V power supply, GPIO; 2 SATA (Serial II ATA) support 3Gb/s; 150M wifi optional 6USB (4 front 2 rear port), VGA CRT, 1RJ-45, 4 USB ports 1DC in 12V, 1*AV, AUDIO-OUT, AUDIO-MIC

Power supply	AT/DC 12V
Dimention	Product dimention: 20514040mm Package dimention: 24020050mm (Nutrual white box)
Weight	X86 NW: 950 g Shipping GW: 1.5KG
