Product Specifications
| Prod Model: |
FM-4040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
400mm*400m*70mm |
| Idling Speed: |
8000mm/Min |
| Code Compatiable: |
Cam& CAD |
| Spindle Power: |
1.5kw |
| Motor: |
Stepper Motor |
| Table Surface: |
Cast Iron |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
| Color: |
Blue or as Required |
Product Description

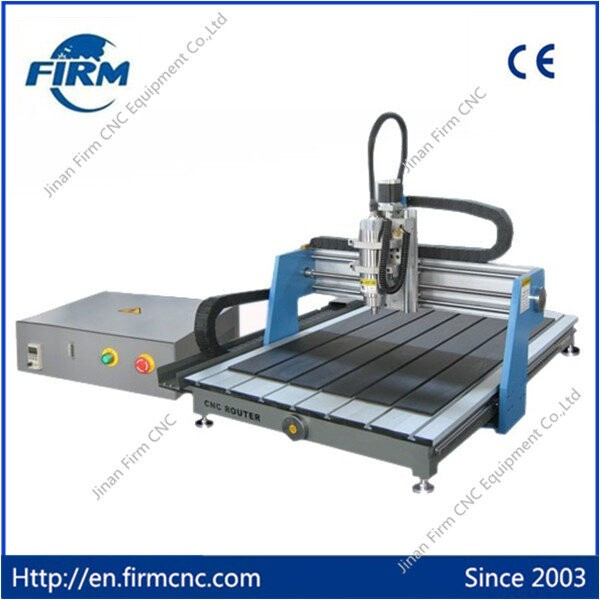

Mini portable CNC Router Machine for Wood Engraving (FM4040)
Features
1 Standard configuration of 4040 model:
2 CE standard, 400*400*70mm effective working area;
3 Cast steel square tube structure;
4 Ball screw transmission;
5 Mach3 control system, stepper motor;
6 1.5KW water cooled spindle, 1.5KW inverter;
7 Leadshine driver;
8 Round orbit, including Type3 software.
Applicable industrial:
It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing. Also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry
And I really want to tell you we can produce the machine as your reqquested including the colour of the machine, the brands of the motor...So if there are any questions please let us to answer.
Garantee:
1) The whole machine guarantee is 2 years except for our cnc router machine special parts.
2) 24 hours technical support by phone, email or msn, skype etc.
Our QC team:
A QC team with professional and technical personnel. To ensure 100% cnc router machine checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test beforecnc router machine are packed and loaded.
| Item | Details | Optional |
| Mode | FM-4040 |
|
| Working area | 400*400*70mm | 300*300, 1200*1200, 1300*2500 |
| Spindle Power | 1.5kw |
|
| Cooling type | water cooling spindle | 4.5kw air cooling, 5.5kw air cooling. |
| Rotated Direction | Right |
|
| Guider thickness | 20mm, Hiwin |
|
| Driver | Yako Driver 2608MA |
|
| Transmission | XY gears pinion, Z ballscrews |
|
| Idling speed | 8000mm/min |
|
| Code compatiable | G code |
|
| Control System | DSP | NcStudio |
| Holding type | Clamp |
|
