Price: | US $ 1812-5435/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | VCT-4030C |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Engraving Router |
Spindle Layout: | Vertical |
Spindle Number: | Single-Spindle |
Feed Mode: | Mechanical |
Controlling Mode: | CNC |
Certification: | CE, ISO, SGS |
Customized: | Customized |
Condition: | New |

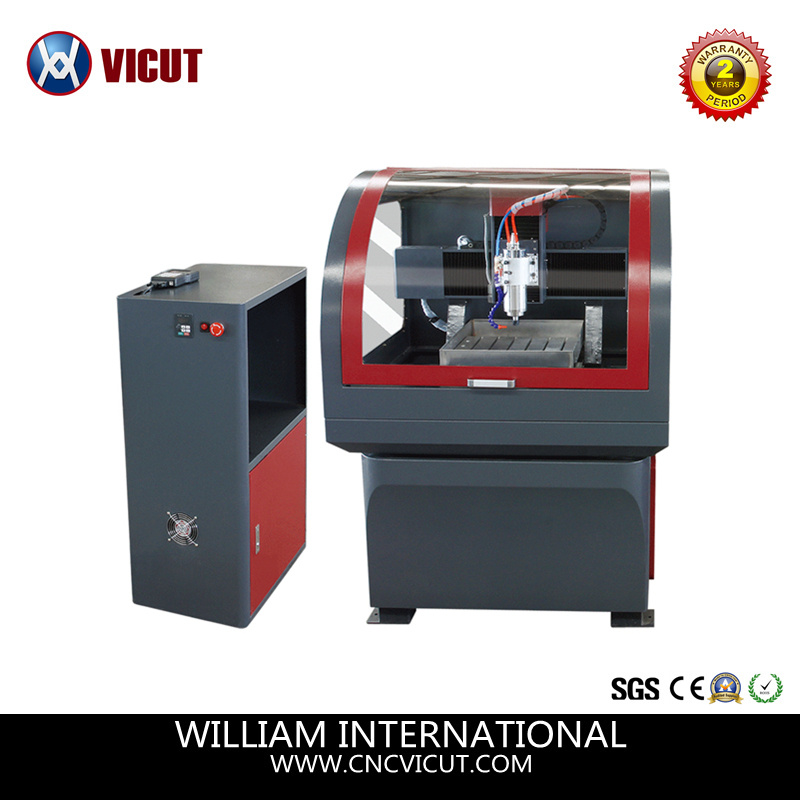

Mini Router wood chipper CNC machinery carving machine CNC router

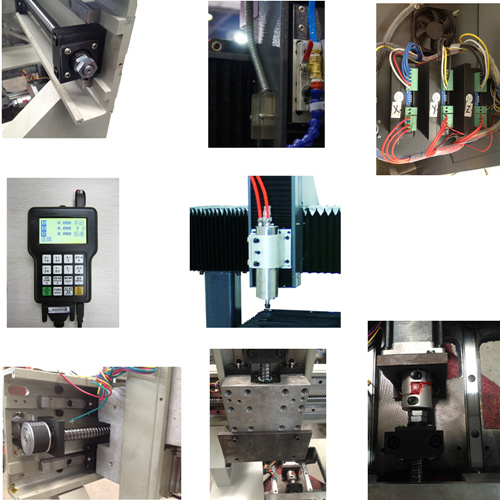

Features:
1. Integral cast-iron milling table which made by mold.
2. Rolling ball screw and linear guide from Taiwan.
3. Strong constructions, easy operation, and reliable performance.
4. Customized: design, size, color. OEM Service is available.
Applications:

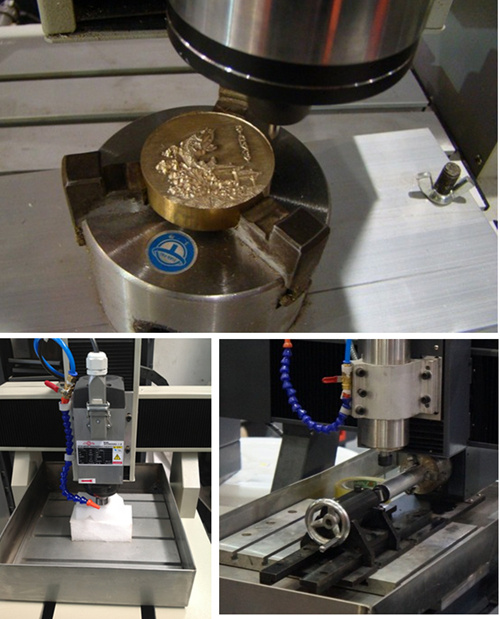

Custom signage, Braille signs, name tags, asset tags, electric tags, awards, jewelry, gifts, parts marking, Mahjong making, PCB marking, soft metal craft, and much more.
Which machine is right for your business?
Our Engraving and CNC Routing Systems are capable of doing a variety of applications. Desired size, shape & production volume are factors in determining which machine is right for you. Contact us today & have one of our technical consultants assist you in finding a machine that best fits your needs.
Model | VCT- 4030A | VCT- 4030B | VCT-4030C | VCT-4030R | ||||
Table Size | 420 × 320mm (1.38' ×1.05') | |||||||
Working Size | 400 ×300 × 90mm (1.31' ×0.98' ×0.3' ) | |||||||
Control System | DSP HANDLE A11 With USB | |||||||
Transmission | XYZ Ball Screw & Linear Square rails | |||||||
Max Engraving Speed | 4500mm/min | |||||||
Mini Feeding Speed | 1mm/s | |||||||
XYZ Resolution | 0.0125mm | |||||||
Spindle Motor | 1500W/ 6000~24000rpm( More or less power is optional) | 800W/6000-24000rpm(1.5KW or More is optional) | ||||||
File Format | G code or HPGL | |||||||
Net Weight | Around 150KG | Around 220KG | Around 240KG | Around 220KG | ||||
Packing Size | 700x710x1300mm ( 0.65 CBM) | 700x710x1300mm ( 0.65CBM) | 1000x1000x1500mm ( 1.5 CBM) | 700x710x1300mm ( 0.65 CBM) |
