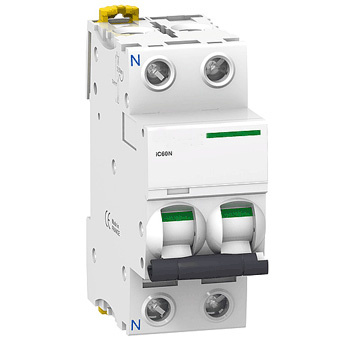

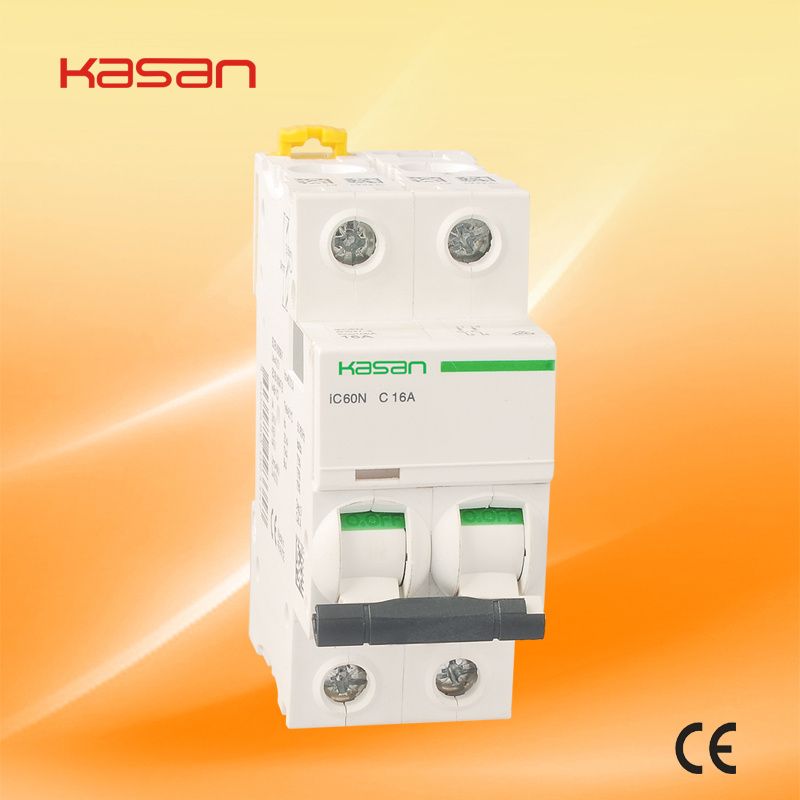

Miniature Circuit Breaker (IC60N)
Product Specifications
| Prod Model: |
iC60N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
Product Description
Specifications
High Quality and very nice appearance.
Good price as good material ensure.
Have CE certification.
High breaking capacities.
With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service.
- VisiSafe : for safe operation and maintenance work on circuits.
- Class-2 insulation : continuous safety for operators and unqualified personnel.
- VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.
- Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks.
- Nominal current: 1 to 63 A
- Large choice of breaking capacities up to 100 kA and tripping curves: B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2,
- Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs),
- Suitable for isolation in accordance with industrial standard IEC 60947
- Operating voltage: up to 440 V AC, insulation voltage: 500 V
- Optional add-on earth leakage modules: iC60 Vigi,
- Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping.
| Pole No. | 1P, 1P+N, 2P, 3P, 4P |
| Rated Voltage | AC 230/415V |
| Rated Current (A) | 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
| Tripping Curve | B, C, D |
| Rated Frequency | 50/60Hz |
| Ultimate Short-circuit Capacity | 6kA |
| Rated impulse withstand voltage | 6 kV EN 60947-2
6 kV IEC 60947-2 |
| Connection terminal | Screw terminal, Pillar terminal with clamp |
| Mounting | Removable comb busbar installed, DIN rail |
Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.
in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.
We Wish to Make Friends with All Over The World to Expand Our Products Market.
