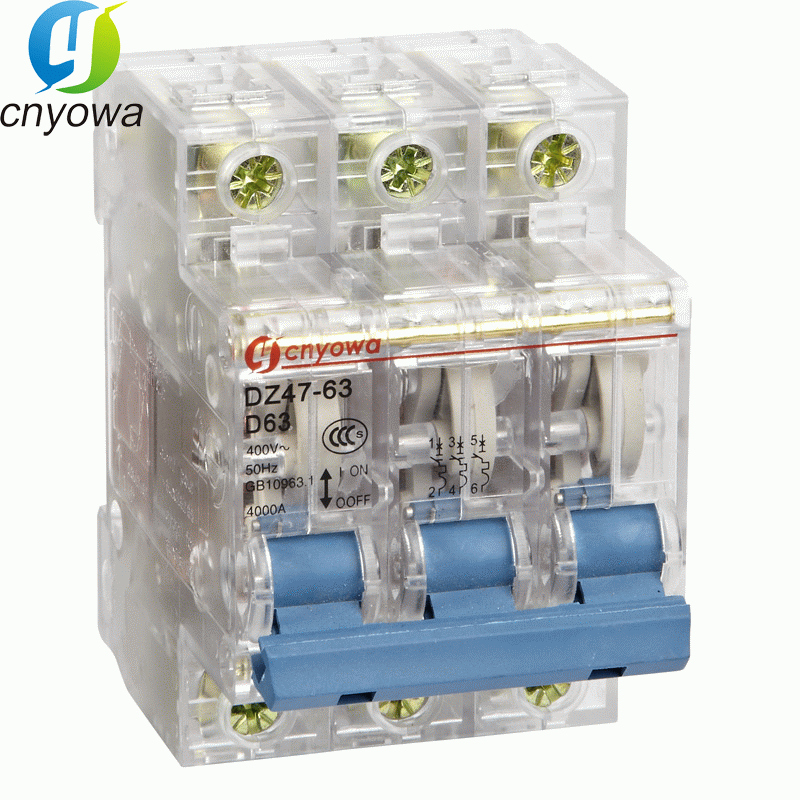

Miniature Circuit Breaker Transparent Shell (DZ47)

Product Specifications

Prod Model:	DZ47-63T C63A-3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Dz47
Handle Color:	According to Customer Requiement
Inner Material:	According Customer Need
Port:	Ningbo, Shanghai, Guangzhou
Export Markets:	Global
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Conventional Circuit Breaker

Product Description

Application The product is mainly used in AC50/60Hz single-pole230V or two, three, four-poles 400Vcircuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under normal condition. It can be used in lighting and electric motor distribution system. It is characterized with novel structure, light weight, reliable and excellent performance, high breaking capacity. Technical Data 1/ Pole No.: 1P, 1P+N, 2P, 3P, 3P+N, 4P 2/ Rated voltage: AC 230/400V 3/ Rated current (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 4/ Tripping curve: B. C. D 5/ Rated short-circuit capacity(Icn): 6000A 6/ Rated frequency: 50/60Hz 7/ Energy limiting class: 3 8/ Rated impulse withstand voltage: 6.2Kv 9/ Electro-mechanical endurance: 4000 10/Connection terminal: Pillar terminal with clamp 11/Connection capacity: Rigid cinductor up t0 25mm₂ 12/Fastening torque: 2.0Nm 13/Installation: On symmertical DIN rail 35mm Panel mounting
