Product Specifications
| Prod Model: |
XJK&SF Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Xjk |
| Installation: |
Offer Foundation Chart, Dispatch En |
| Application: |
Mineral Processing, Ore Upgrading |
| Item: |
Flotation Processing |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Type: |
Beneficiation Machinery |
Product Description

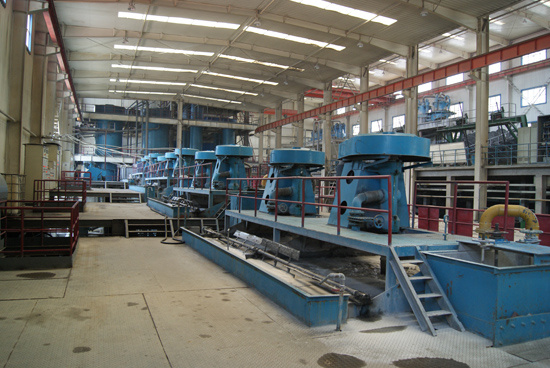

Flotation cell:
Application: This machine is applicable for the separation of nonferrous metal and ferrous metal and nonmetal, such as fluorite and talc.
Working principle: The impeller is driven by V-belts, which can bring the centrifugal effect to form the negative pressure. On the one hand, to inhale sufficient air to mix with ore pulp; On the other hand to stir ore pulp and mix with medication to form the mineralized froth. To adjust the height of flashboard to control the liquid level and make the useful froth scraped by loam board.
Usage: To check the bolts before starting the machine and to use hand instead of impellers to prevent the sediment from adding the burden of electromotor. To adjust the height of strobe carefully to keep the stabilization of liquid level and scrape the mineralized froth to the launder. The impellers and stators should have a distance and should be changed when they are worn. The bearing in the pump should be maintained every three months.
Easy wear parts: Impellers and stators
|
Model |
XJK-0.35(3A) |
XJK-0.62(4A) |
XJK-1.1(5A) |
XJK-2.8(6A) |
XJK-5.8(7A) |
|
Effective cubage(m 3 ) |
0.35 |
0.62 |
1.1 |
2.8 |
5.8 |
|
Production capacity(m 3 /min) |
0.18-0.4 |
0.3 -0.9 |
0.6 -1.6 |
1.5-3.5 |
3 - 7 |
|
Rotation speed(r/min) |
470 |
400 |
330 |
280 |
240 |
|
Blade diameter(mm) |
300 |
350 |
500 |
600 |
750 |
|
Motor |
Model |
Rotor |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y200L2-6(Y225M-6) |
|
Scraping plate |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
|
Power(kw) |
Blade Motor |
1.5 |
3 |
5.5 |
11 |
22(30) |
|
Scraping plate Motor |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
|
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |
3.533 |
|
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Trough capacity(m 3 ) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
|
Production capacity(m 3 /min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Blade rotation speed(m3/min) |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
|
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
|
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
|
Dimensions(mm) |
700*700
*750 |
900*820
*950 |
1100*1100
*1100 |
1700*1600
*1150 |
1850*2050
*1200 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
