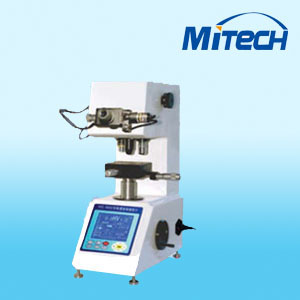

Mitech (HVS-1000) Digital Micro Vickers Hardness Tester

Name: Mitech (HVS-1000) Digital Micro Vickers Hardness Tester
Brand: china-manufacturer-directory.com
SKU: 614346034
Availability: InStock
Rating: 4.7 (118 reviews)

Supplier:	Mitech Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	HVS-1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Testing Force 10gf (0.098N0-1000gf (9.8N)
Exchanging Scales Rockwell, Superficial Rockwell, Brinell
Min Measuring Unit 0.031μ M
Magnification of Microscope 100X(For Observation) 400X(For Measurement)
Data Output Inside Printer and RS-232 Interface
Dutation Time 0~60 sec selectable, In step of 5 sec
Loading Control Automatically (load, keep, unload)
Overall Dimension 405*290*480mm
Net Weight 25kg
Max Height of Speciment 85mm.

Testing Force	10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N ), 200gf (1.96N),300gf (2.94N),500gf (4.9N),1000gf (9.8N)
Exchanging Scales	Rockwell,Superficial Rockwell,Brinell
Min Measuring Unit	0.031μm
Magnification of Microscope	100X(For Observation) 400X(For Measurement)
Data Output	Inside Printer and RS-232 Interface
Dutation Time	0~60 sec selectable,In step of 5 sec
Loading Control	Automatically (load, keep, unload)
Overall Dimension	405×290×480mm(L×W×H)
Net Weight	25kg
Max Height of Speciment	85mm
Max depth of speciments	95mm
Power Supply	AC220V±5%,50~60Hz
Carried Standard	GB/T4340(1.2) Chinese Standard
Standard Accessories	Objectives 40x and 10x, Vickers Indenter, Microscope 10x, Standard Hardness Brocks: 2 pcs, Thin Specimen Testing Table, Column Testing Table, Forcipate Testing Table, Lever, Power Cable, Assistant Tools, etc

Mitech is a manufacturer specializes in Non-Destructive Testing (NDT) instruments. Located in Beijing, Mitech has a professional engineer team devoted in R&D and manufacturing advanced high technical instrument; Its main products are ultrasonic digital flaw detectors, portable metal hardness testers, handle ultrasonic thickness gauges, and coat thickness gauges etc.

Until now, Mitech has distributors dispersed in major cities of China and offers excellent after-sale service. Mitech's instruments are widely used in domestic generating industry, petroleum and chemical industry, pressure vessel manufacturing industry and so on, for providing quality control procedure; Customers are satisfied with the high-quality, good reliability and its prompt after-sale services.

Mitech's mission is to provide customers with the best products and services, make contributions to the development of our world, the company is active in communicating with our distributors and customers both present and potential, main conversions and exhibitions of non-destructive testing are good chances for people to know more about Mitech and its products. Mitech welcomes to join hands with more friends.
