Product Specifications
| Prod Model: |
HVS-10Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
This is a new and high-tech product combining the optical, mechanical and electronic techniques

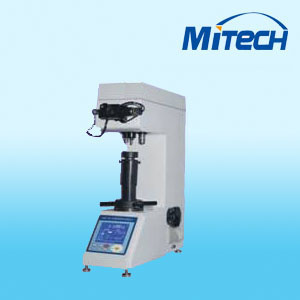

HVS-10Z Digital Vickers Hardness Tester with automatically rotating turret is a new and high-tech product combining the optical, mechanical and electronic techniques, with a good reliability and operational functions, and hence it is an updating and upgrading instrument for Vickers hardness tester with small load line.
The instrument is adopted such technology as computer making programs with software, high amplification optical measuring system and photoelectric sensor. Inputting by soft keys, the tester has such function as adjust the intensity of testing light source, select the testing method and hardness exchanges, dwell time, file number and storage, etc. And all testing data such as the testing method, the testing force value, the testing indentation length, the hardness value, the dwell time of testing load, numbers of measurement can be showed on its large LCD screen, besides it can be inputted year, month and date by keys, test result, handle data and output information with print, connect with computer through RS232 interface.
The instrument is suitable for to test hardness value of the micro and thin pieces, the parts after surface treating with permeating and coating, it is, therefore, an ideal hardness measuring instrument for the scientific research institutes, industrial enterprises and the metrological institutes using with for studying and measuring.
Main Technical Specifications
Test forces: 2.94N(0.3 Kgf), 4.9N(0.5Kgf), 9.80N(1Kgf)
29.4N(3Kgf), 49.0N(5Kgf), 98.0N(10Kgf)
Hardness Testing Range: 8HV0.3 ~ 2500HV10
Testing Force Application Method: Automatic loading and unloading
Amplification of the Microscope: 200*for the measurement)
100*(for the observation )
Dwell time of the test force: 0~60s(1 second as a unit with optional key-in)
Min. Graduation value of the testing drum wheel: 0.0625μ M
Max. Height of the specimen: 160 mm
Distance between the point of the indenter and the exterior panel: 135mm
Weight of the main body: 40 Kg or so
Power: AC220V/50Hz
Overall Dimension(LxWxH): (520*190*650)mm.
