Mjnc-3 Automatic Double Nc Cutoff, Cutter
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |

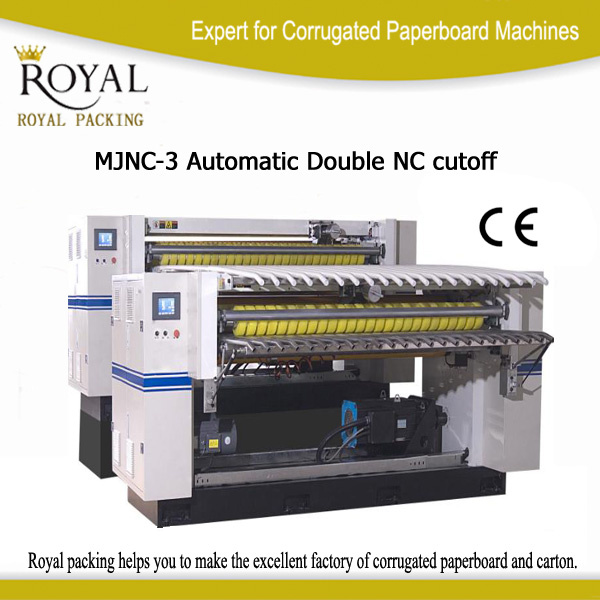

MJNC-3 Automatic Double NC cutoff
AC servo cutting system
Automatic synchronization of cardboard's speed; fixed length cut -off as its basic function; Automatic order change; Italian branded permanent magnet synchronous AC servo motor and German branded servo controller adopted for high efficiency and precision cutoff.
Optional color mark tracking system is used if preprinted liner paper is put into production.
VF control of feed-in and feed-out
Variable frequency motor and inverter control used for cardboards' feed-in and feed-out on this machine. Timing belt transmission; PU wheels used for cardboard pressing at feeding; Automatic synchronization of conveying speed and cardboard real speed.
Touch-screen monitor
Standard 5.7″ touch-screen monitor and friendly HMI on operator console is used for on-site operating.
Superior working conditions
Individual sealed control cabinet; equipped with industrial air-conditioning system; Dust-free, constant temperature and humidity working conditions ensures longer life-span of electrical components.
Stability and reliability
High-quality raw materials, strict heat treatment, high-precision mechanical processing, ensures stable operation of equipment on the long run.
Use of international branded electrical, pneumatic components, standard parts, ensures high reliability and long service life.
High automation
High-automatic running and control, improve the efficiency, save labors, and reduce labor intensity
CE approval.
Our products are designed and constructed strictly according to CE standards and have obtained CE approval via SGS.
| Maim Technological Parameters |
| Max. Speed | 150,200,250m/min |
| Effective width | 1800,2200,2500mm |
| Cutting precision | ±1mm |
| Cutting length | 500~9999mm |
| Prod Model: |
MJNC-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Speed: |
150,200,250m/Min |
| Effective Width: |
1800,2200,2500mm |
| Cutting Precision: |
±1mm |
| Cutting Length: |
500~9999mm |
| Driven Type: |
Electric |
| Blade Material: |
Steel |
| Computerized: |
Computerized |
| Classification: |
Spiral-Knife |
