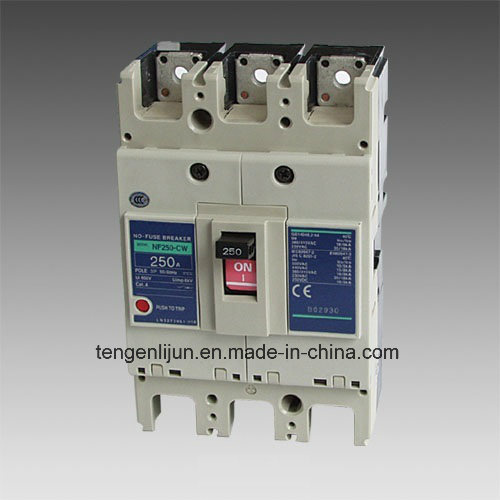

Model Nf-Cw Series Moulded Case Circuit Breaker
Product Specifications
| Prod Model: |
NF-CW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Poles Number: |
2,3,4 |
| Type: |
Circuit Breaker |
Product Description
Application
NF-CW series Moulded Case Circuit Breaker, a kind of economic breaker, has the features as following, steady and reliable property, reasonable structure, beautiful style, small volume, etc. This breaker applies to the circuit with AC50/60Hz, rated insulation voltage 660V, max. Rated current 800A as on-off operation, and take effect, it also can be used as unfrequent conversion of line and unfrequency. It complies with IEC60947-2
|
Model |
Pole
Number |
Rated current
(A) |
Circuit breaking capacity(KA) |
|
AC(P1/P2) |
|
|
|
NF30-CW |
2 |
3,5,10
,15,20,
30 |
|
5/5 |
5/2.5 |
2.5/1.5 |
2.5/1.0 |
- |
- |
|
|
3 |
|
NF50-CW |
3 |
10,20,
30,40,
50 |
|
5/10 |
10/7.5 |
7.5/5 |
7.5/5 |
2.5/1.5 |
- |
|
|
NF60-CW |
3 |
10,20,
30,40,
50,60 |
|
5/10 |
10/7.5 |
7.5/5 |
7.5/5 |
2.5/1.5 |
- |
|
|
NF100-CW |
3 |
60,75,
100 |
|
50/42 |
30/20 |
7.5/5 |
15/10 |
10/5 |
5/2.5 |
|
|
4 |
|
NF250-CW |
3 |
125,150,
175,200,
225,250 |
|
50/42 |
30/22 |
25/15 |
18/15 |
15/10 |
5/2.5 |
|
|
4 |
|
NF400-CW |
3 |
250,300,
350,400 |
|
85/60 |
50/35 |
25/20 |
35/25 |
25/18 |
15/10 |
|
|
4 |
|
NF630-CW |
3 |
500,600,
630 |
|
85/60 |
50/35 |
50/30 |
35/25 |
25/18 |
15/10 |
|
|
4 |
|
NF800-CW |
3 |
600,700,
800 |
|
85/60 |
50/35 |
50/30 |
35/25 |
25/18 |
15/10 |
|
|
4 |
