Molded by Epoxy Resin 20kv High Voltage Silicon Diodes Hvp-20

Name: Molded by Epoxy Resin 20kv High Voltage Silicon Diodes Hvp-20
Brand: china-manufacturer-directory.com
SKU: 700278642
Availability: InStock
Rating: 4.8 (141 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 2.5-10/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	HVP-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tj:	-40oc~+120oc
Used:	Electrostatic Cleaning
Features:	More Sizes Availible
Applications:	Hv Rectifiers for RF Machine
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	Hvp-20
Brand:	Leadsun

Product Description

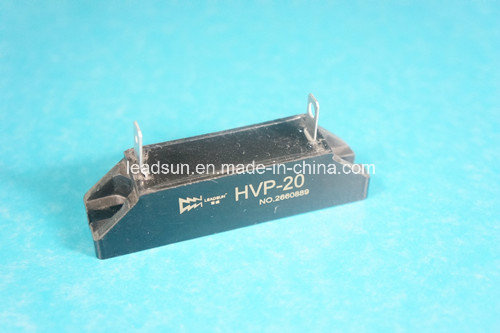

HVP-20 High voltage rectifier blocks using high reliable mesa structure and diffusion craftwork, epoxy resin molded in compact structure.
Feature:
Avalanche characteristic
More sizes available
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC
Application:
Electrostatic cleaning
High Voltage testing equipment
General purpose high voltage rectigier
Extreme(Absolute Maximum Rating)

No.	Item		symbol	Rating	Unit	Conditions
1	Repetitive Peak Reveres		VRRM	20	KV	Ta=25ºC IR=0.5μA
2	Peak Working Revere Voltage		VRWM	20	KV	Ta=25ºC IR=0.5μA
3	Non-Repetitive Peak Reverse Voltage		VRSM	22	KV	Ta=25ºC IR=0.5μA
4	Maximum Junction Temperature		Tjmax	120	ºC
5	Storage Temperature		Tstg	-40~+120	ºC
6	Average Forward Current		IO	1.0	A	50Hz,Tbreak=75ºC
7	Surge Forward Current		IFSM	20	A	0.01S 50Hz
No.	Item	symbol		Rating	Unit	Conditions
1	Normal Temperature Reverse Current	IRRM1		2.0 max	μA	VR=VRRM Tamb=25ºC
2	High Temperature Reverse Current	IRRM2		10.0 max	μA	VR=VRRM Tamb=100ºC
3	Reverse Breakdown Voltage	VF		22.0	V	IF= 1.0A

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
