Motion detect and schedule record cube P2P onvif IP camera (IPC-3100WHD).

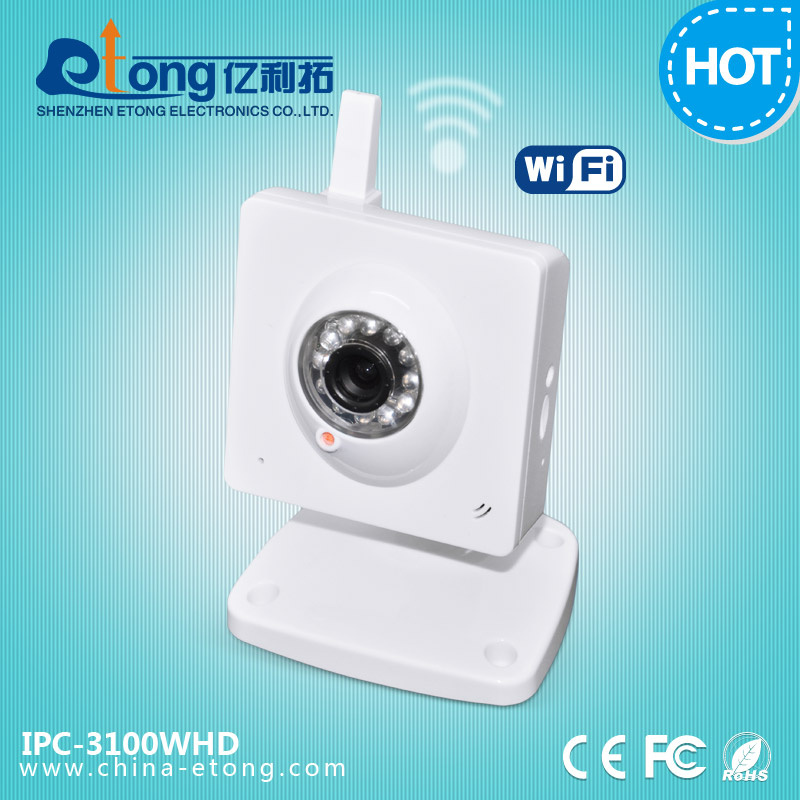

Etong IPC-3100WHD(White)Wireless B/G/N With IR-CUT IP Camera
[IPC-3100WHD]
Latest Model With 1 Years Warranty...
Better Video Colour
Features:
>Support iPhone, Android, Blackberry & Nokia Symbian(midp2.0 java) viewing
>Simple to setup, friendly Gui, DIY installation
>High image&video quality, Two way audio monitoring
>Embedded with IR-Cut filter (better & more natural video colour)
>Auto IR-LED illumination for night vision (up to 10 metres)
>Supports IE/firefox/google browser
>Supports remote viewing & record from anywhere anytime
>Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
>Multi-level users management with password protection
>Motion detection alert via email
>With audio jack, can output the audio to a speaker.
What's included:
Etong wireless IP camera
WiFi antenna
User manual
Installation CD
Flecible Mounting Bracket that suitable to mount to ceiling/wall
Network cable
DC 5V Power Supply
|
|
IPC-3100WHD |
IPC-3130whd |
|
Image Sensor |
1.0MP 1/4"HD CMOS |
0.3MP 1/3" CMOS |
|
Effective Pixel |
1280x720 |
640x480 |
|
Min illumination |
0.1Lux @ (F1.2,AGC ON),0 LUX with IR
0.01Lux @ (F1.2,AGC ON),0 LUX with IR |
|
Electronic shutter |
1/50(1/60)s - 1/100,000 s |
|
Lens |
6mm@ F1.8 (3.6mm,2.8mm optional),Horizontal field of view:47°(6mm) |
|
Lens Mount |
M12 |
|
Rotation |
no |
|
Day & Night |
Electronic |
|
Compression |
|
Video compression |
H.264 Main Profile, JPEG capture |
|
Video Bite Rate |
32 Kbps~2Mbps |
|
Audio compression |
G.711 |
|
Dual stream |
Support |
|
Image |
|
Max Resolution |
1280x720 |
640x480 |
|
Frame Rate |
50Hz:25fps (1280×720) 60Hz:30fps (1280×720) |
50Hz:25fps(640×480) 60Hz: 30fps (640×480) |
|
Image settings |
Saturation, Brightness, Contrast adjustable through Client software or web server |
|
Network Function |
|
Storage |
Network storage,micro sd card storage |
|
Micro SD Card |
Max 32GB Externally |
|
Intelligent Alarm |
Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error |
|
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,ONVIF, NTP(HTTPS,SIP ,802.1x,IPv6 optional) |
|
Basic |
Anti-flicker, dual stream, heartbeat, password protection |
|
Mobile monitor |
iPhone/Android's/Windows/Blackberry/Symbia smartphone remote view |
|
Interface |
|
Communication |
RJ45 10M/100M self-adaptive Ethernet interface,802.11 wireless connection |
|
Video output |
1Vp-p Composite Output(75Ω/BNC) |
|
Two Way Talk |
Support |
|
Alarm Input |
1 channel |
|
Alarm Output |
1 channel |
|
General |
|
Power supply |
DC5V±10% |
DC5V±10% |
|
Power consumption |
5W MAX |
|
IR distance |
5-10M |
|
Certificate |
CE ,FCC ,RHOS |
|
Warranty |
Limited one-year warranty |
