Product Specifications
| Prod Model: |

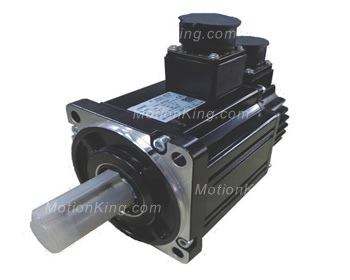

AS100 AC Servo Motors |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
Product Description
We produce quality & high performance ranges:
AS60, AS80, AS90, AS110, AS130, AS150, AS180 Series & matched drivers.
We produce quality & high performance ranges:
AS60, AS80, AS90, AS110, AS130, AS150, AS180 Series & matched drivers. |
|
|
|
|
|
| Electrical Specifications |
|
|
|
| AS100-30-032E25 | AS100-30-064E25 |
| Rated Power (KW) | 1.0 | 2.0 |
| Rated Voltage (V) | 220 | 220 |
| Rated Current (A) | 5.0 | 9.9 |
| Rated Speed (RPM) | 3000 | 3000 |
| Rated Torque (N.m) | 3.2 | 6.4 |
| Peak Torque (N.m) | 9.6 | 19.2 |
| Peak Current (A) | 15 | 29.7 |
| Voltage Constant (V/1000r/min) | 39.4 | 39 |
| Torque Coefficient (N.m/A) | 0.64 | 0.65 |
| Rotor Inertia (Kg.m2) | 0.2458-3 | 0.4422-3 |
| Resistance (Ω) | 0.98 | 0.41 |
| Inductance (mH) | 8.9 | 3.9 |
| Electrical Time Constant (ms) | 9.0 | 9.6 |
| Weight (Kg) | 4.5 | 7.5 |
| Encoder Resolution (PPR) | 2500 | 2500 |
| Body Length (L, mm) | 153 / 194(with brake) | 198 / 239 (with brake) |
| Insulation Class | Class B (130ºC) |
| Safety Grade | IP64 |
| Operating Enrivoment | Temperature: -20ºC ~ +50ºC Humidity: under<90% (No Dewing) |
| Storage Enrivoment | Temperature: -30ºC ~ +60ºC Humidity: under<90% (No Dewing) |
| Winding Connector | Winding Wires | U | V | W | PE |
| Pin No. | 2 | 3 | 4 | 1 |
| Encoder Connector | Signal Wires | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE |
| Pin No. | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
