Motionking (China) Motor Industry Co., Ltd. >> Motionking AC Servo Motors - As110 Series

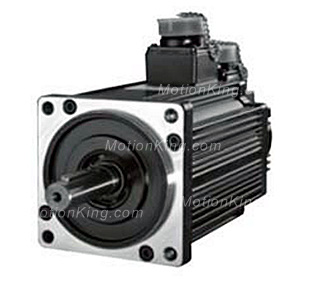

Motionking AC Servo Motors - As110 Series

Name: Motionking AC Servo Motors - As110 Series
Brand: China-Manufacturer-Directory.com
SKU: 711617705
Availability: InStock
Rating: 4.8 (83 reviews)

Supplier:	Motionking (China) Motor Industry Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AS110 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Stator:	Three-Phase
Function:	Control

Product Description

We produce quality & high performance ranges:
AS60, AS80, AS90, AS110, AS130, AS150, AS180 Series & matched drivers.

We produce quality & high performance ranges: AS60, AS80, AS90, AS110, AS130, AS150, AS180 Series & matched drivers.

Electrical Specifications

	AS110- 30- 020E25	AS110- 20- 040E25	AS110- 30- 040E25	AS110- 20- 050E25	AS110- 20- 054E25	AS110- 30- 060E25	AS110- 20- 060E25	AS110- 30- 060E25
Rated Power (KW)	0.6	0.8	1.2	1.0	1.0	1.5	1.2	1.8
Rated Voltage (V)	220	220	220	220	220	220	220	220
Rated Current (A)	2.5	3.5	5.0	4.5	5.4	6.0	4.5	6.0
Rated Speed (RPM)	3000	2000	3000	2000	2000	3000	2000	3000
Rated Torque (N.m)	2	4	4	5	5	5	6	6
Peak Torque (N.m)	6	12	12	10	15	15	12	18
Peak Current (A)	7.5	10.5	15	13.5	16.2	18	13.5	18
Voltage Constant (V/1000r/min)	56	79	54	86	75	62	83	60
Torque Coefficient (N.m/A)	0.8	1.14	0.8	1.11	0.93	0.83	1.3	1.0
Rotor Inertia (Kg.m2)	0.3110 -3	0.5410 -3	0.5410 -3	0.6310 -3	0.6310 -3	0.6310 -3	0.7610 -3	0.7610 -3
Resistance (Ω)	3.6	2.41	1.09	2.14	1.7	1.03	1.46	0.81
Inductance (mH)	8.32	7.3	3.3	6.5	4.9	3.43	4.7	2.59
Electrical Time Constant (ms)	2.3	3	3.0	3.0	2.88	3.33	3.2	3.2
Weight (Kg)	4.5	5.5	5.5	6.1	6.1	6.1	6.7	6.7
Encoder Resolution (PPR)	2500	2500	2500	2500	2500	2500	2500	2500
Body Length (L, mm)	159	189	189	204	204	204	219	219


General Feature

Insulation Class

Class B (130ºC)

Safety Grade

IP64

Operating Enrivoment

Temperature: -20ºC ~ +50ºC Humidity: under<90% (No Dewing)

Storage Enrivoment

Temperature: -30ºC ~ +60ºC Humidity: under<90% (No Dewing)

Winding Connector

Winding Wires

Pin No.

Encoder Connector

Signal Wires

B+

Z-

U+

Z+

U-

A+

V+

W+

V-

A-

B-

W-

Pin No.


Dimensions

Rated Torque (N.m)	L (mm)
2	159
4	189
5	204
6	219


Matched Drivers
