Yueqing Winston Electric Co., Ltd. >> Motor Soft Starter with CE (WSTR3000 from 5KW to 630KW 3phase 220V 380V 440V 660V 1140V) (WSTR3000)

Motor Soft Starter with CE (WSTR3000 from 5KW to 630KW 3phase 220V 380V 440V 660V 1140V) (WSTR3000)

Name: Motor Soft Starter with CE (WSTR3000 from 5KW to 630KW 3phase 220V 380V 440V 660V 1140V) (WSTR3000)
Brand: china-manufacturer-directory.com
SKU: 672473782
Availability: InStock
Rating: 4.4 (124 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 115-500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	WSTR-3000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Antistop:	Motor Soft Starter
Workmanship:	The Exquisite German Technology
Test:	100% Full Load in Test
Task:	Adjust
Structure:	Combination
Mathematical Model:	Linear
Signal:	Continuous
Certification:	CE
Condition:	New
Customized:	Customized

Product Description

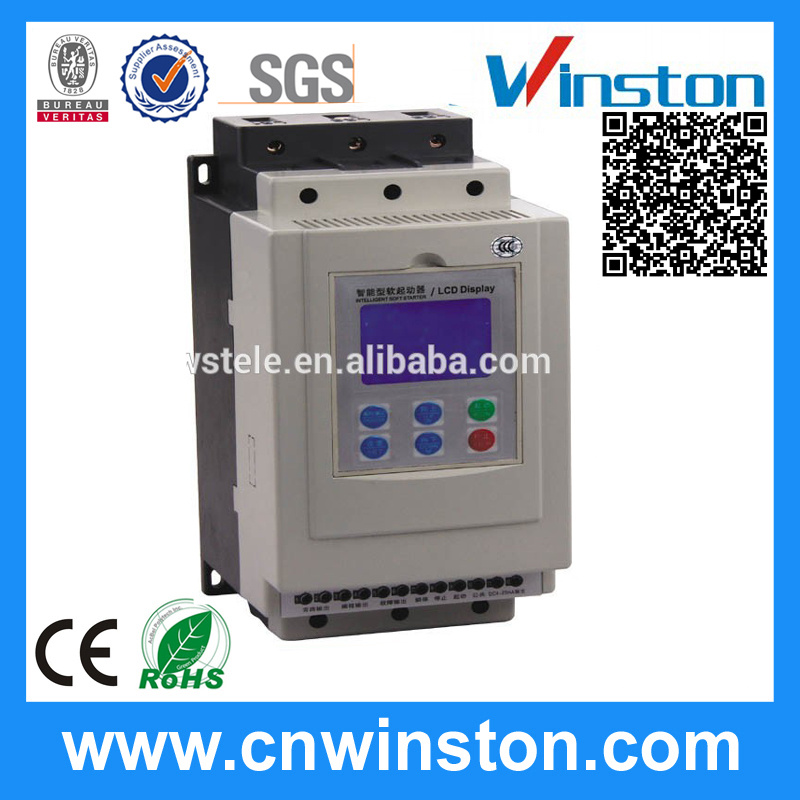

WSTR-3000 Series motor soft starter, Intelligent Soft Starter

WSTR-3000 Series soft starter can work with three-phase, AC squirrel cage induction asynchronous motor.

Voltage: Three-phase 380V-15% -415+10%V, 660V
Power: 5.5KW~630KW.
Control Mode:
1) Operation panel control.
2) Operation panel + external control
3) External control
4) External control + COM control
5) Operation panel + external + COM control
6) Operation panel + COM control;
7) COM control
8) No start or stop operation.

Start Mode:
1) Current-limiting start
2) Voltage ramp start;
3) Kick start + current-limiting start;
4) Kick start + voltage ramp start
5) Current ramp start
6) Voltage current-limiting double closed-loop start.

Stop Mode: 1) Soft stop. 2) Free stop.

Specifications	The rated power of motor	Rated current	External shape dimensions(mm)			Installation dimensions(mm)			NW
Specifications	(KW)	A	W1	H1	D	W2	H2	d	(kg)
WSTR-3000-5.5-3	5.5	11	146	270	160	132	251	M6	< 5
WSTR-3000-7.5-3	7.5	15	146	270	160	132	251	M6	<5
WSTR-3000-011-3	11	23	146	270	160	132	251	M6	<5
WSTR-3000-015-3	15	30	146	270	160	132	251	M6	<5
WSTR-3000-18.5-3	18.5	37	146	270	160	132	251	M6	<5
WSTR-3000-022-3	22	43	146	270	160	132	251	M6	<5
WSTR-3000-030-3	30	60	146	270	160	132	251	M6	<5
WSTR-3000-037-3	37	75	146	270	160	132	251	M6	<5
WSTR-3000-045-3	45	90	146	270	160	132	251	M6	<5
WSTR-3000-055-3	55	110	146	270	160	132	251	M6	<5
WSTR-3000-075-3	75	150	260	535	195	195	380	M8	<20
WSTR-3000-090-3	90	180	260	535	195	195	380	M8	<20
WSTR-3000-115-3	115	230	260	535	195	195	380	M8	<20
WSTR-3000-132-3	132	260	260	535	195	195	380	M8	<20
WSTR-3000-160-3	160	320	260	535	195	195	380	M8	<20
WSTR-3000-185-3	185	370	260	535	195	195	380	M8	<20
WSTR-3000-200-3	200	400	260	535	195	195	380	M8	<20
WSTR-3000-250-3	250	500	290	560	215	226	410	M8	<30
WSTR-3000-280-3	280	560	290	560	215	226	410	M8	<30
WSTR-3000-320-3	320	640	290	560	215	226	410	M8	<30
WSTR-3000-400-3	400	800	400	560	215	226	410	M8	<30
WSTR-3000-450-3	450	900	400	560	215	226	410	M8	<45
WSTR-3000-500-3	500	1000	400	560	215	226	410	M8	<45
WSTR-3000-630-3	630	1260	400	560	215	226	410	M8	<45

Why choose us?

1.Professional manufacture

2.With complete varieties

3.Accept OEM

4.Considerate in place of after-sales service

For more details. Welcome to send inquiry to us!

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
