Product Specifications
Product Description
Features:
Intelligent continuous maximum power point tracking technology(MPPT)
Microprocessor control
Auto battery-voltage detection
Three stage charging optimizes battery performance
Auto load-detection
Short circuit and overload protection
Optional IP 21-43 protection for outdoor and harsh environment
Reversed current protection
Auto battery temperature compensation for long-term reliability
Available for connecting DC load

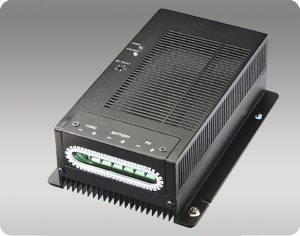

SOLAR-CHARGE CONTROLLER
Model No. 40-1240-24
Nominal Voltage12VDC24VDC
Input
Voltage Range15-30VDC30-55VDC
Max Charging Current40A
Max PV volt for open corcuit55VDC
Max Output Current15A ( for DC load)
Idle Consumption<10mA
Overload Protection(DC Load)2.0*inom>5s, 1.5*inom>20s, 1.25*inom temperature controlled
Charging Control to Battery
Bulk Charging Volt14.6V(default)29.2V(default)
Float charging Volt13.4V(default)26.8V(default)
Equalization Charging Volt14.0V(default)28.0V(default)
Overcharge Disconnecting Volt14.8V29.6V
Overcharge Recovering Volt13.6V27.2V
Temp Compensation Rate-13.2mV/-26.4mV/
Battery SettingLead acid or Nicad battery
Discharging Control to Battery
Overdischarge Disconnecting Volt10.8V(default)21.6V(default)
Overdischarge Recovering Volt12.3V24.6V
Load Control
Adjustable Range for Low10.5-12.5VDC21.0-25.0VDC
Battery Disconnecting Volt
LED IndicatorFlashing before disconnect and reconnection
Enviromental
Temperature0-40(for full power)40-60(for derating)
Altitudeoperating for <5000m, storage for <16000m
IP GradeIP21
Battery Temperature SensorBTS(optional)
*Specifications are subject to change without prior notice.
