Product Specifications
| Prod Model: |
MQS-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: Max: |
150kn |
| Displacement: |
Max. 100mm |
| Speed: |
1mm/Min. and 50mm/Min. |
| Load Transducer: |
0 - 150kn, 0 - 50kn |
| Displacement Transducer: |
0 - 30mm |
| Accuracy: |
+/-1% |
Product Description

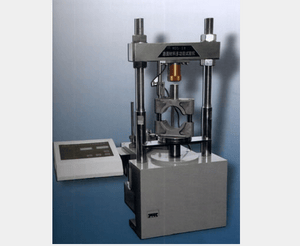

Application:The Apparatus is used together with accessories to test indirect strength of extension of every soil specimen(cleavage crack test), CBR test(including test swell increment after soaking in water), resilience modulus test, unconfined compression strength test, Marshall stability test and bitumen mixture cleavage crack test.
Specifications:1. Capacity: max. 150kN
2. Displacement: max. 100mm
3. Speed: 1mm/min. and 50mm/min. (two kinds of speed for selection)
4. Load transducer: 0 - 150kN, 0 - 50kN
Displacement transducer: 0 - 30mm
5. Accuracy: ±1%
6. Automatic tracking, data acquisition, peak distinguished and real-time signal output for X - Y recorder
7. Loading methods: Manual and electric
8. Power supply: 220V±10V 50Hz 15A
9. Power: 750W
SAMYON commit us supply professional line instruments and service to our clients refers to Building, Bridge, Highway, Channel, Airport and so on.
Our service and equipment include:
1. Geophysical exploration Consultation and relative instruments such as: IP& Resistivity systems, Fluxgate Magnetometer, Optical pump Magnetometer, Proton Magnetometer, TEM, EM system, Seismograph, Logging system, etc.
2. Construction lab and NDT instruments: Ultrasonic Cross-Hole Pile Tester, Integrity Pile tester, Rebar Locator, Concrete Chloride Migration Tester( RCM), ect.
3. We are also distributor of Petroleum equipment and accessories, to supply our clients inquiry.
With our engineer and professional technology team, we hope we can cooperate with you in future. Relative consultation service, mainly refers to Building, Bridge, Highway and lab. Relative consultation service, mainly refers to Building, Bridge, Highway and lab.
