Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Maximum Working Pressure: |
as Per Design |
| Material: |
Carbon Steel, Stainless Steel, Alloy |
| Application Industries: |
Chemical, Alcohol Plant, Refinery, Power Plant |
| Design Service: |
Provided |
| After-Sales Service: |
Provided(Engineers Available to Service Machinery) |
| Place Of Origin: |
Shandong China(Mainland) |
| Medium: |
Mash |
| Certification: |
Asme.SGS, ISO9001 |
| Manufacture Standard: |
Ames, GB etc. |
| Application: |
Vaporizer |
| Structure Material: |
Metal Material |
| Principle: |
Mixing Heat Exchanger |
Product Description
1. Company Information
FEICHENG JINTA MACHINERY Co., Ltd. Is the largest manufacturer of alcohol, fuel ethanol and DDGS high protein feed complete equipment in China which is capable to design, manufacture, install and adjust 3000t-500000t alcohol complete equipment in the turnkey project.
2. Product Description:

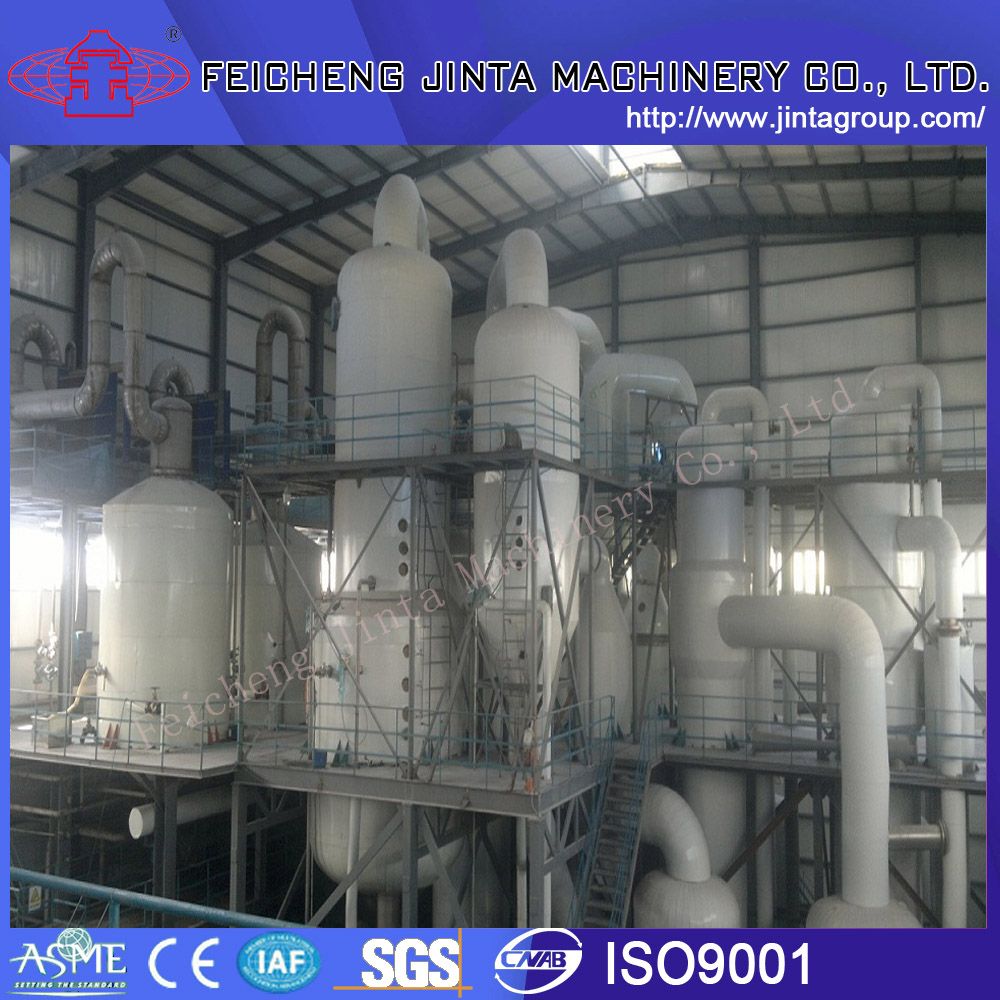

MSG evaporation crystallization device which we make is a high-efficient heat exchanging equipment used in alcohol, solvent, food ferment, pharmaceutical, petrochemical, refrigeration, organic chemistry, metallurgical industry, suitable for convection heat transfer of liquid to liquid, gas to gas, gas to liquid.
3. New Technology Description:
Five-Column Three-Effect Distillation Process
The key of this process is the heating methods, the steam heats one column directly and transfers the heat to other 4 columns to achieve three-effect thermal coupling and energy-saving effects.
Double-Mash-Column Three-Effect Distillation Process
The key of this process lies in the heating methods: The steam heats one column directly and transfers the heat to other 2 columns to achieve three-effect thermal coupling and energy-saving effects. The advantage of this process is energy-saving; It saves over 40% steam
4. Production Capability
1). Our company was established in the 1950s, designed and manufactured the first stainless steel distillation column in China, now We own advanced machining equipment and product testing equipment
2). Our company has 16 production workshops which can produce 6 full sets of equipment (including crushing section, liquefying saccharification section, fermentation section, distillation section and DDGS section) per month.
5. Designed capability
1). We own Design License of Special Equipment D1 & D2 Class; Manufacture License of Special Equipment A2 Class; Design License of Special Equipment GC Class.
2). Our company achieves more than 20 patent certificates on distillation, DDGS, and other fields.
3). Our company owns ASME certification, ISO 9001 Quality System Certification, ISO 14001 Environmental Management System Certification & GB/T28001 Occupational Health and Safety Management System Certification
6. Contact us
Name: Vick liang
Phone: 86 13953842508
Tel: 86-538-3393266
Fax: 86-538-3399066
Energy Consumption & Quality Indicator Table Of Five-Column Three-Effect Distillation Process
for Super-fine Alcohol |
|
No. |
Item |
Unit |
Traditional Process |
New Process |
|
1 |
Steam Consumption |
t/t |
3.0 |
2.3 |
|
2 |
Colority |
No. |
9.5 |
8 |
|
3 |
Alcohol |
%(v/v) |
95.5 |
96.5 |
|
4 |
Sulfuric Acid Test |
No. |
70 |
9 |
|
5 |
()Aldehyde (as acetaldehyde) |
mg/l |
28 |
2 |
|
6 |
Methanol |
mg/l |
18 |
3 |
|
7 |
n-propyl alcohol |
mg/l |
15 |
2 |
|
8 |
+Isobutanol+isoamylol |
g/l |
27.5 |
2 |
|
9 |
()Acid(as acetic acid) |
mg/l |
19 |
9 |
|
10 |
()Ester (as acetic ether) |
mg/l |
22 |
16 |
|
11 |
Nonvolatile matter |
mg/l |
23 |
12 |
|
12 |
(Pb)Heavy metal |
mg/l |
0.65 |
0.4 |
|
13 |
(Hcn)Cyanide(as HCN) |
mg/l |
3.7 |
2 |
Energy Consumption & Quality Indicator Table Of Double-Mash-Column Three-Effect Distillation Process
for Super-fine Alcohol |
|
No. |
Item |
Unit |
Traditional Process |
New Process |
|
1 |
Electricity Consumption |
kwh/t |
15 |
20 |
|
2 |
Steam Consumption |
t/t |
2.3 |
1.4 |
|
3 |
Water Consumption |
t/t |
7 |
5 |
|
4 |
Colority |
No. |
9.5 |
8 |
|
5 |
Alcohol |
%(v/v) |
95.5 |
95.5 |
|
6 |
Sulfuric Acid Test |
No. |
70 |
55 |
|
7 |
Aldehyde (as acetaldehyde) |
mg/l |
28 |
25 |
|
8 |
Methanol |
mg/l |
100 |
55 |
|
9 |
n-propyl alcohol |
mg/l |
75 |
35 |
|
10 |
+Isobutanol+isoamylol |
mg/l |
27.5 |
26 |
|
11 |
()Acid(as acetic acid) |
mg/l |
19 |
18 |
|
12 |
()Ester (as acetic ether) |
mg/l |
22 |
20 |
|
13 |
Nonvolatile matter |
mg/l |
23 |
21 |
|
14 |
(Pb)Heavy metal |
mg/l |
0.65 |
0.5 |
|
15 |
(Hcn)Cyanide(as HCN) |
mg/l |
3.7 |
3 |
Feicheng Jinta Machinery Co., Ltd was established in the 1950s which designed and manufactured the first stainless steel distillation column in China. In 2011 ~ 2012, Five-column differential-pressure distillation projects which we designed in Argentina and Myanmar debugged successfully once for all and reached ultra excellent standard and in more than half a century our company constantly innovates new process, and undertakes thousands of sets of alcohol projects at home and abroad.
Our company can produce 6 full sets of equipment (including crushing section, liquefying saccharification section, fermentation section, distillation section and DDGS section) per month. We own advanced machining equipment and product testing equipment; Among 16 production workshops we have, 3 workshops are for mechanic manufacture, 5 workshops are for manufacturing process, 8 workshops are for assembling & welding.
We are the largest manufacturer of alcohol, fuel ethanol and DDGS high protein feed complete equipment in China.
We can design and manufacture Class-I, class-II, class-III Pressure vessel, Which Is capable to design, manufacture, install and adjust 3000t-500000t Alcohol complete equipment In the turnkey project , And have exported successively to above 20 countries such as Thailand, Burma, lran, Russia, Mongolia, Kazakhstan and so on
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
