Product Specifications

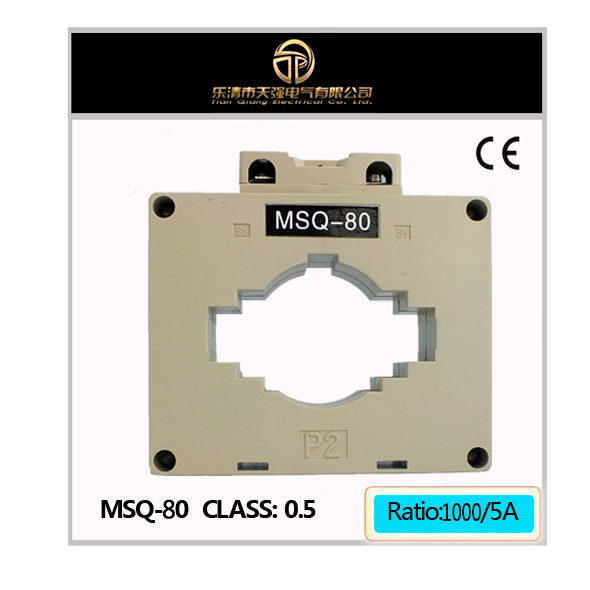

| Prod Model: |
MSQ-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| -: |
- |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Product Description
Quick Details
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application
Primary current: 5A-150A
Secondary current: 5A, 1A
Standard approval: VDE0414, BS7626, IEC185
Maximum voltage: 0.66KV
Frequency: 50-60KV
Rated load: 10VA
Class: 0.5, 1.0
Short-time thermal current: 1th=60Ih
Rated security coefficient: FS5
Mounting methods: By once-lead or by copper bar
Place of Origin: |
Zhejiang, China (Mainland) |
Brand Name: |
TQ |
Model Number: |
MSQ |
Usage: |
Current |
Phase: |
Single |
Coil Structure: |
Toroidal |
Coil Number: |
Autotransformer |
Packaging & Delivery
Packaging Details: | standard export cartons |
| Delivery Detail: | within 20 days |
Specifications
MSQ series current transformer
1.CCC,ISO,CE approved
2 Frequency: 50Hz/60Hz
3.OEM allowed...
Model Number: MSQ-30
Technical data:
1 The current transformers are made according to IEC-185 standard
2 Class of accuracy:1.0(see table)
3 Rated voltage:600V(see table)
4 Rated sec:current 5A(or 1A on request)
5 Security factor:FS5
6 Working temperature range: -20°C-+45°C
7 ABS plastic case, toally enclosed, built-in cover, and several ampere outputs at secondary side iron plate for fixing metal housing-2pieces -1,iron bar and screw for fixing copper bar-3 pieces
Outline drawing of MSQ Unit:mm
Model A B C D E F G H
MSQ-30(small) 60 36 67 17 60 31 10 59
MSQ-30 75 43 82 17 60 31 10 71
MSQ-40 75 43 82 17 60 31 10 71
MSQ-60 101 44 111 17 60 31 10 71
MSQ-100 145 45 139 17 60 31 10 72
MSQ-130 196 46 210 17 60 31 11 72
