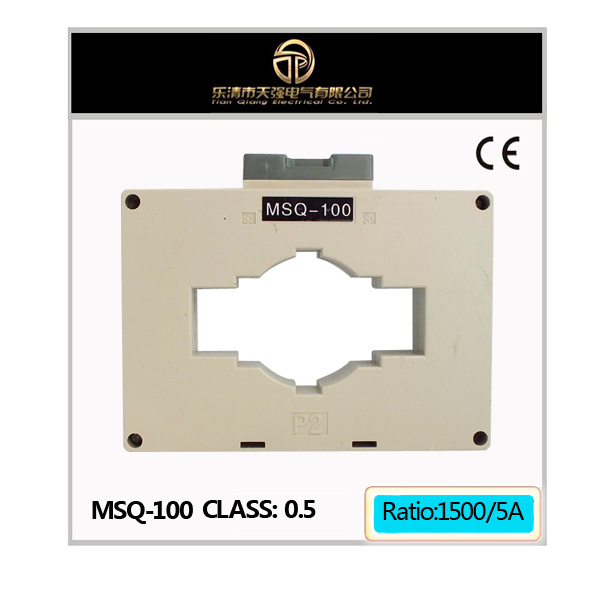

Msq Current Transformer Best Seller, Msq-100 Window Type Current Transformer

Product Specifications

Prod Model:	MSQ-100
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
-:	-
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Product Description

This series of CT can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 720V and the frequency of 50-60Hz. The product can be also applied to form a complete set of mine transformer
The products comply with VDE 0414, BS7626 and IEC 44-1 standard.

Technical characteristics of current transformers:

MOUNTING
DIMENSION:
MSQ-30B
With bar:
Installation screws (M8 X 20) which
Are used on the busbar are delivered with
The current transformers.

MSQ-30T
Busbar dimensions (max): 30 X 20mm
Round conductor cross
Section (max): Ø20mm
(*) Busbar connection apparatus
Is delivered in the box.

MSQ-30
Busbar dimensions (max): 30 X 20mm
Round conductor cross
Section (max): Ø20mm
(*) Busbar connection apparatus
Is delivered in the box.

MSQ-40
Busbar dimensions (max): 40 X 10mm
Round conductor cross
Section (max): Ø30mm
(*) Busbar connection apparatus
Is delivered in the box.

DIMENSIONS:
MSQ-60
Busbar dimensions (max): 60 X 20mm
Round conductor cross
Section (max): Ø40mm


MSQ-85
Busbar dimensions (max): 82 X 30mm
Round conductor cross
Section (max): Ø80mm

MSQ-100
Busbar dimensions (max): 100 X 10mm
Round conductor cross
Section (max): Ø60mm


MSQ-125
Busbar dimensions (max): 126 X 60mm
Round conductor cross
Section (max): Ø126mm

DX-125
Busbar dimensions (max): 125 X 38mm
Round conductor cross
Section (max): Ø126mm
