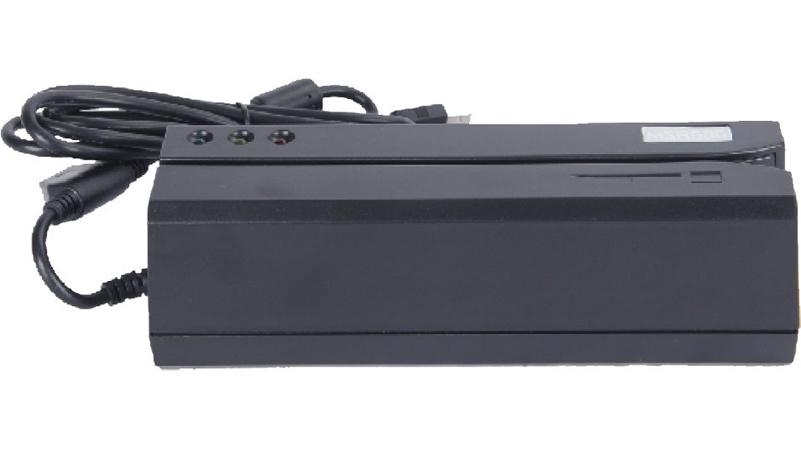

Msr 606 Magnetic Stripe Card Reader Writer/ Encoder
Product Specifications
| Prod Model: |
MSR606 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
212*64*63mm |
| Consumption: |
Typical 350mA Max. 600mA Plus for Each Writing Tr |
| Power Supply: |
External Switching Power 24V/2.5A |
| Interface: |
Serial or USB/Serial |
| Ripple: |
50MVP-P or Less |
Product Description
MSR606 Hi-co&Lo-co Magstripe Reader/Writer (Encoder)
Features
-Read/Write magnetic stripe card complied with ISO formats
-Read/Write Drivers Licenses
-Read/Write High & Low Coercive (300~4000 Oe)
-LED provides operational status
-Writes any track combinations of 210 and/or 75 bpi data density
-Program software for Windows 98/Me/XP /Vista
-Manual Swipe to read and/or write card with RS-232 /USB output
-Writing &verifying data on single, dual, or triple track in one swipe
-+24VDC, 2.5A Max external power adapter attached
-Dimension of 212(L) x 64(W) x 63(H) mm
-Dimension of Box 290(L) x 180(W) x 100(H) mm
| Electrical |
| Power requirements | +24VDC +/- 5% |
| Consumption | Typical 350mA Max. 600mA plus for each writing track |
| Power supply | External switching power 24V/2.5A |
| Interface | Serial or USB/serial |
| Ripple | 50mVp-p or less |
| Dielectric strength | 500 VDC for 1 minute |
| Performance |
| Read card | Track1 | Track2 | Track3 |
| Bit per density | 210 bpi | 75/210bpi | 210 bpi |
| Coercive force | Read/write 300-4000 oe Mag.card |
| Card thickness | 0.76-1.2mm |
| Read speed | STD card | Jitter +/-15% | Amp. 60% |
| 5-55ips | 5-50ips | 5-50ips |
| Write speed | 5-30ips |
| Write jitter | Interval < +/- 10%, Sub-interval < +/- 12% |
| Error rate | Read < 0.5% |
| | Write < 0.8% |
| Head life | Min. 1000K swipes for both read/write head |
| Mechanical |
| Body material | ABS 94V-0 |
| Weight | Approx. 1.4kg |
| Dimension | 212L x 64W x 63H mm |
| Swipe | Manual, single direction |
| Environments |
| Operation | -10 to 55oC, 10 to 85% humidity |
| Storage | -30 to 70oC, 10 to 90% humidity |
| Safety Approval |
| Rating | FCC , CE , UL, cUL, ROHS |
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of Intelligent Commercial Equipment, such as:
Multi-payment product line -- Handheld POS terminal, Retail POS, mPOS etc.
Automatic Fare Collection (AFC) product line -- Bus validator machine and system etc.
E-commerce Logistics and IOT industry product line -- Handheld PDA, Mobile printer, Barcode scanner / printer, RFID device etc.
Our factory had obtained ISO9001 certificates over 15 year, and production department is over 3, 000 SQM. We are also professional in OEM and ODM service, welcome to customize and develop the smart device to meet customers' indeed application.
Most of our products have passed CE/FCC/RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
In the past 11 years, we have deepened in printing and payment industry and expanded markets in Southeast and Central Asia, Middle East Asia, South America, Africa and Europe etc. Our products obtain sustained growing market share, and exported to clients over 100 foreign countries and regions.
Our company's slogan is "Professional Solution Provider for Intelligent Commercial Equipment --- Smart and Reliable".
Shenzhen HCC sincerely wish to cooperate with your esteemed company, and provide most suitable products and solution to your customers. We co-create one more Intelligent and glamorous business world.
Business Type: Manufacturer/Factory
Management System Certification: ISO 9001,HACCP
International Commercial Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, EXW
Terms of Payment: LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 21~50 People
Export Year: 2008-03-05
Export Percentage: 71%~90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Rm. 306, 3/F, Bldg. 6, Changyuan New Material Port, No. 2 Gaoxin C. Ave. 1st, Nanshan Dist, Shenzhen, Guangdong, China
R&D Capacity: OEM, ODM, Own Brand(HCCTG)
No. of R&D Staff: 5-10 People
No. of Production Lines: 6
Annual Output Value: US$10 Million - US$50 Million
