Wuxi JinyiBo Instrument Technology Co., Ltd. >> Multi-Elements High Intelligent Function Analysis Instrument

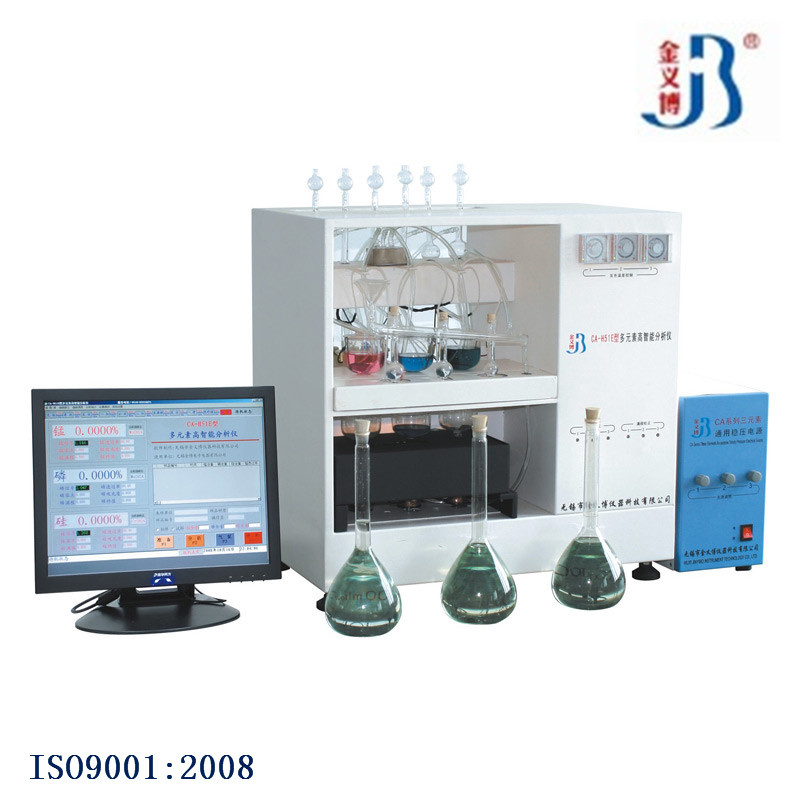

Multi-Elements High Intelligent Function Analysis Instrument

Name: Multi-Elements High Intelligent Function Analysis Instrument
Brand: china-manufacturer-directory.com
SKU: 763716745
Availability: InStock
Rating: 4.9 (150 reviews)

Supplier:	Wuxi JinyiBo Instrument Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CA-H51E
Element:	Metals Analyzer
Function:	Element Analysis

Product Description

1. Company information
As a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.

2. Application fields
(1).Testing the mass fraction of silica, manganese, phosphorus, chromium, nickel, titanium, molybdenum, tungsten, vanadium, copper, magnesium and rare earth elements, etc. of steel, iron and high, medium alloy steel (such as: stainless steel, heat resistant steel, alloy steel, high speed steel) and alloy cast iron.

(2). Testing the mass fraction ofiron, copper, silica, magnesium and titanium elements, etc..

3. Main Features

(1).The intensive design, built-in embedded microcontroller, external computer control and data processing system analyze elements automatically.

(2). Internal tantalum wire heating, electronic control temperature, color temperature setting.

(3). High precision liquid separating device adopts the pneumatic liquid separation system which lower outlet connects fine silicon tube. Liquid level positioning is accuracy and the liquid is clean. The liquid is of high precision.

(4). Intelligent, automatic instrument of all parameters will be optimized, set and controlled by computer.

(5). According to the different material, the design methods of chemical analysis differ, which helping the use of instrument.

(6). Humanistic analysis software, convenient and flexible and it can cofigurate according to the user's actual need.

a.Instrument control system is based on the WINDOWS special operating software and it is equipped with computer operation and a high performance of touch control screen.

b.Using the navigation operation and it does not need to professional knowledge to use.

c.Analysis of real time display. Analysis parameter automatic adjustment, ensure the whole analysis process to be completed in the best condition.

d.Single point correction, multiple regression correction, regression curve can be optimized for operation, and can store a number of curves, real-time inquiry and call.

e.It has a powerful database functions for real-time query, statistics, report output. It can network with the front furnace number system to transmit the data automatically.

4. Technical parameter
Wide measuring range, high detection sensitivity

Elements	Measurement range	Elements	Measurement range	Elements	Measurement range
RE	0.001%-0.200%	P	0.005%-0.800%	Ti	0.010%-2.50%
Mg	0.010%-1.500%	W	0.050%-22.00%	V	0.005%-1.00%
Si	0.030%-13.00%	Cr	0.005%-32.00%	Cu	0.010%-5.00%
Mn	0.010%-30.00%	Ni	0.030%-50.00%	Mo	0.0025%-10.00%
Fe	0.100%-1.500%

WUXI JINYIBO INSTRUMENT TECHNOLOGY Co., Ltd

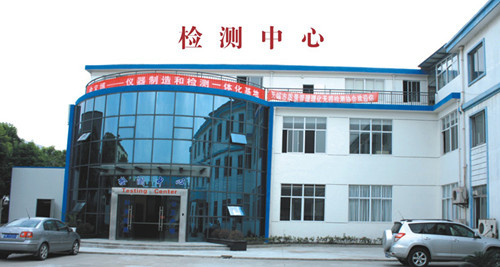

Company Profile

As a modern enterprise engaged in the R&D, manufacture and marketing of analyzing instruments, Wuxi Jinyibo Instrument Technology Co., Ltd. Possesses proprietary intellectual property and brings together lots of high-tech talents and experts to work on the development and application of material testing. Our company is specialized in manufacturing instruments like photoelectric direct reading spectrometers, plasma emission spectrometers, infrared carbon and sulfur analyzers, a series of wet-process analyzers, etc., which offer analysis of several elements including carbon, sulfur, silicon, manganese, phosphorus, nickel, chromium, copper, molybdenum, iron, titanium, rare earth, magnesium, etc. In particular, the photoelectric direct reading spectrometers and high-frequency infrared carbon and sulfur analyzers are in the leading position in China. Our products are widely applied to steel industry, metallurgy, foundry, machinery, construction, institutions, petrochemical engineering, quality supervision, the inspection of import and export commodity, etc.

We embrace the business philosophy of ''to satisfy customer with instrument offering remarkable precision''. For the past few years, we have set up ten sales and service centers and more than 40 service outlets. Our products are widely used around China and have been sold to South America, Africa, West Asia, Vietnam, Taiwan area, Hong Kong, etc. Besides the effort to develop material testing instruments, we established five bases, namely Product R&D Center, Material Testing Center, Physical and Chemical Training Center, Product Display Center and Trade Settlement Center. We strive to become a manufacturer and international supplier providing a full range of testing instruments.

The enterprise spirit of Jinyibo is ''self-discipline and social commitment''. The staff of Jinyibo sticks to the belief, takes a highly responsible attitude to our users, and follows the development thought of building a bigger, stronger and better enterprise. We will uphold the innovation of science, keep seeking for perfection and make great contribution to the prosperity of national instrument industry.

Quality Policy:

High technology, high quality, high level of service and to establish a well-known brand

Business philosophy:

To make instruments as per standards and to ensure precision through science and technology

To satisfy customer with our service and to gain users through our sense of responsibility
