Product Specifications
| Prod Model: |
DM72-E3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
72*72 |
| Display Mode: |
Digital |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Installation: |
Portable |
| Connection Type: |
RS485 |
| Maximum Scale: |
9999 |
Product Description

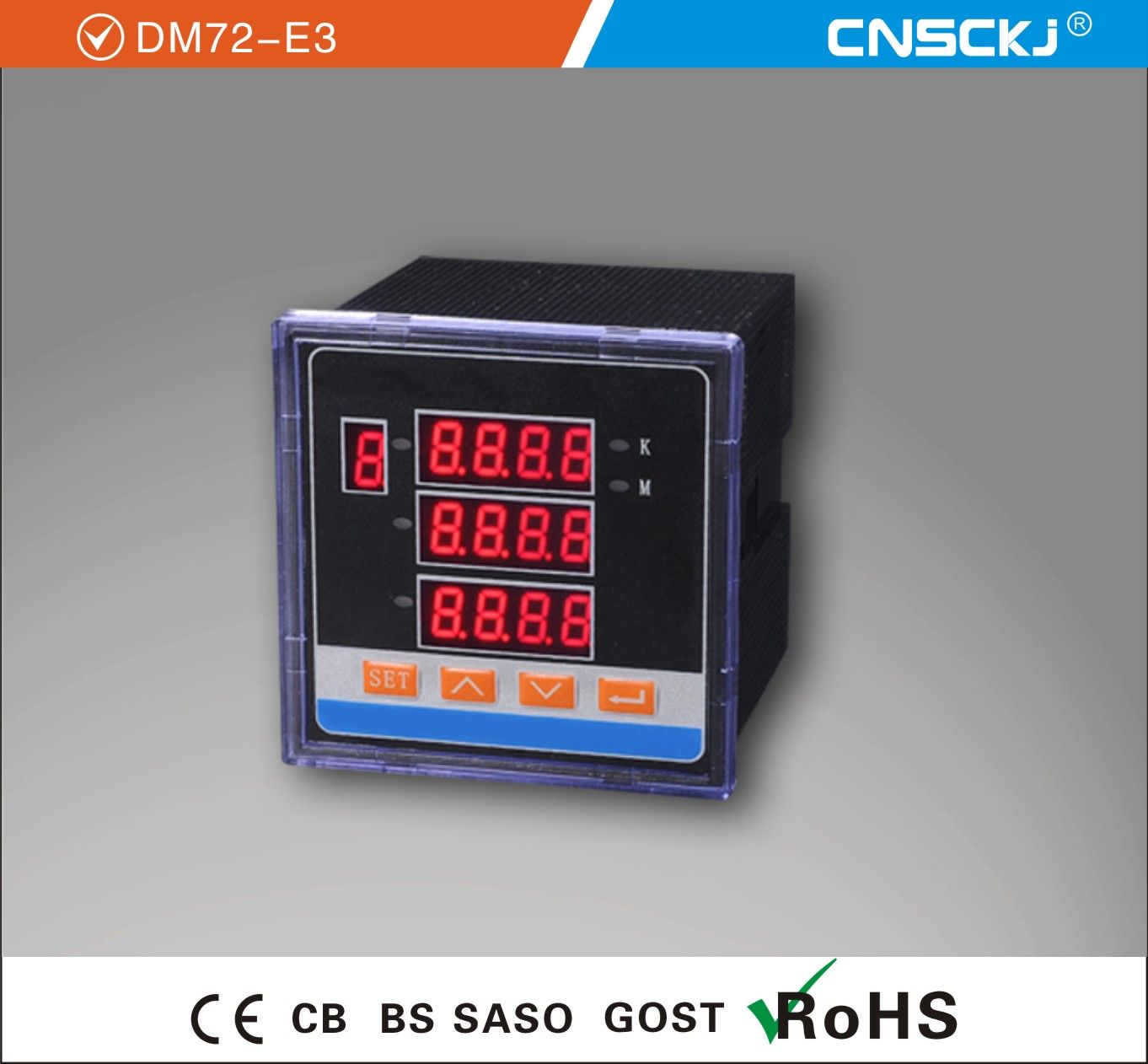

Multi-Function LED digital Panel Meter
Product presentation:
Multi-function led panel kwh Meter adopt blue backlit LED display, can display common power quantity and other parameters. Meter's power quantity parameters display is actual value once measued of PT, CT(means: V=PT*imput V, A = CT*imoutA, display P =power value*PT*CT). Can swithover display voltage by panel's switch key(now the first display indicator lighting)the first row, the second row, the third row LED display separately represent UA, UB, UC or UAB, UBC, UCA. It's unit is V. Indicator K or M lignting means KV&MV. Display current (now the second display indicator lighting )the first row, the second row, the third row LED display separately represent IA, IB, IC. It's unit is A. Indicator K or M lighting means KA&MA. Display power (now the second display indicator lighting)the first row, the second row, the third row LED display separately represent P, Q, COS, it's unit is W, Var. Indicator K or M lighting means Kw, KVar & Mw, Mvar. Energy display adopt the first and second row LED display (as the first display 278.1 the second display 5995, the energy is 278.1599).
|
technical parameters |
|
voltage imput |
AC 100V,200V,380V |
|
overload |
1.2 times rated value(continuously ),2 times rated value (10s) |
|
power consumption |
Current imput : AC 1A,5A.
|
|
overload |
1.2 times rated value(continuously ),2 times rated value (10s) |
|
auxiliary power |
AC/DC 80-270V |
|
power consumption |
<5VA |
|
external form & hole-cutting size |
72*72mm 67*67mm |
