Product Specifications
| Prod Model: |
JFY-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Velocity: |
0.2 to 20 M/S |
| Temperature: |
-20 to 50 |
| Relative Humidity: |
0 to 100% Rh |
| Barometric Pressure: |
100.00~1400.00hpa |
| Different Pressure: |
-1100.00~1100.00hpa |
| Data Storage Capabilities: |
15000test IDS(Manual, Auto Save Continuous) |
| Explosion Protection: |
Exibd I |
| Protection Grade: |
IP54 |
| External Meter Dimensions: |
203mm X 75mm X 50mm |
| Power Requirements: |
9V 1000mAh Lithium Battery |
| Certification: |
SGS |
Product Description

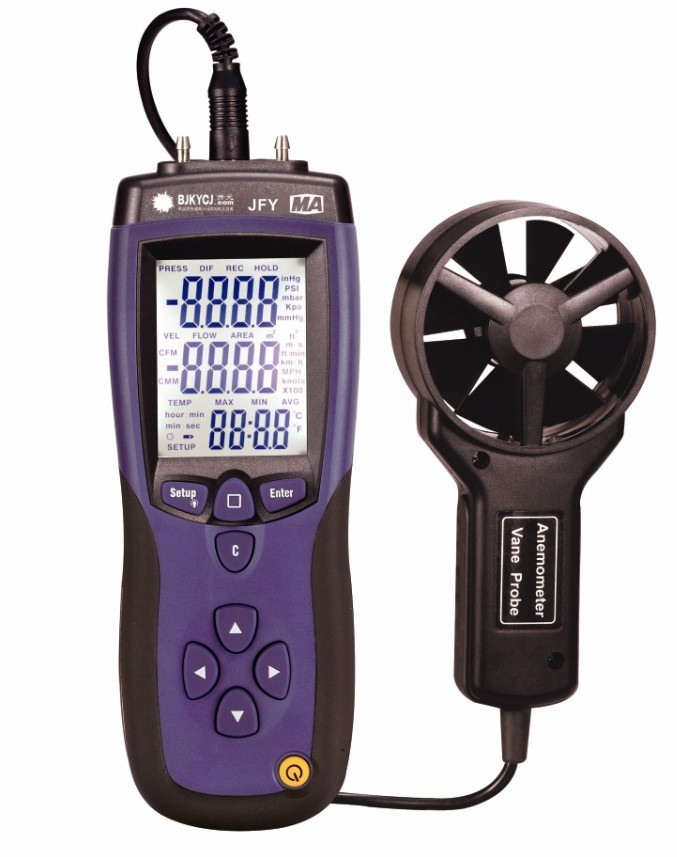

Multi-Function Ventilation Meter
Applications:
JFY-6 Multi-Function Ventilation Meter is an intrinsically safe and explosion-proof instrument, especially designed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting, chemical industry, Clean room testing, HVAC commissioning and troubleshooting, Ventilation evaluations, Process air flow testing and all kinds of environment that needed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
Key features:
· Intrinsically safe and explosion-proof instrument
· Best-in-class air velocity accuracy
· Displays up to 6 measurements simultaneously
· Large graphic display
On-screen messages and instructions
· Intuitive menu structure allows for ease of use and setup
· Multiple data logging formats
· Bluetooth communications for transferring data or remote polling
· Includes downloading software with USB cable
· Fast calibration and repair service— Just send in the probe
|
Range |
|
|
|
|
air velocity |
0.2 to 20 m/s |
|
|
temperature |
-20 to 50 |
|
|
relative humidity |
0 to 100% RH |
|
|
barometric pressure |
100.00~1400.00hPa |
|
|
different pressure |
-1100.00~1100.00hPa |
|
Accuracy |
|
|
|
|
air velocity |
±0.4 m/s |
|
|
temperature |
±2.5% |
|
|
relative humidity |
±2% RH |
|
|
barometric pressure |
2% of reading |
|
|
different pressure |
±2% |
|
Resolution |
|
|
|
|
air velocity |
0.01 m/s |
|
|
temperature |
0.1 |
|
|
relative humidity |
0.1% RH |
|
|
different pressure |
0.01mmHg, 1 Pa |
|
Data storage capabilities |
15000test IDs(manual, auto save continuous) |
|
Explosion protection |
Exibd I |
|
Protection grade |
IP54 |
|
External Meter Dimensions |
203mm x 75mm x 50mm |
|
Power Requirements |
9V 1000mAh lithium battery |
