Qingzhou Hongyuan Vehicles Co., Ltd. >> Multi-Function Wheel Loader with Cummins Engine (ZL20F)

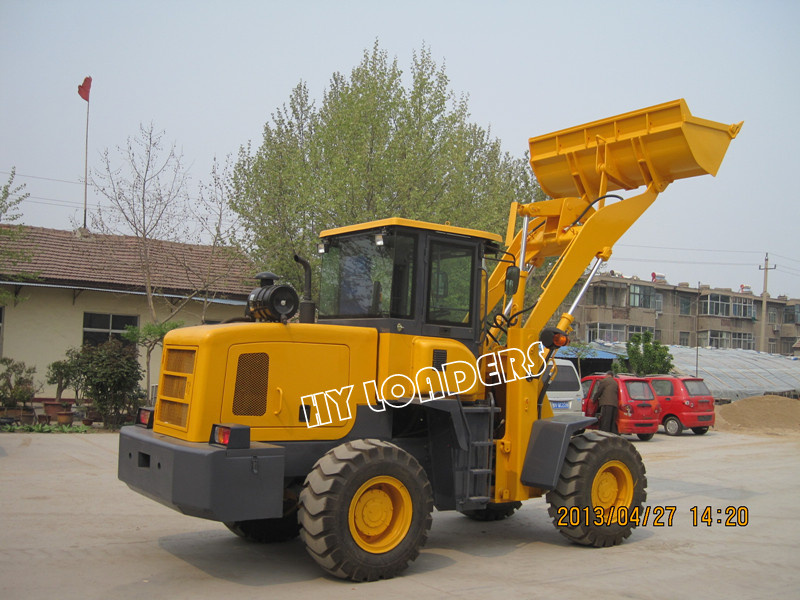

Multi-Function Wheel Loader with Cummins Engine (ZL20F)

Name: Multi-Function Wheel Loader with Cummins Engine (ZL20F)
Brand: China-Manufacturer-Directory.com
SKU: 681240472
Availability: InStock
Rating: 4.8 (111 reviews)

Supplier:	Qingzhou Hongyuan Vehicles Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZL20F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Loading:	2000kg
Bucket Capacity:	1.0-1.2m3
Dumping Height:	3.1m
Diesel Engine:	Ytr 4108 or Yuchai 4j12t-85 or Cummins 4bt3.9-100
Engine Power:	60kw(81.6HP) or 62kw(84.32HP) or 75kw(102HP)
Tire Size:	16/70-20
Wheel Drive:	4WD
Operation Type:	Full Hydraulic
Transmission:	Automatic
Operating Weight:	5800kg
Walking Mode:	Wheeled
Condition:	New
Type:	Medium-sized Loader
Certification:	CE
Load And Unload Method:	Front Discharge

Product Description

Multi-function Wheel Loader with Cummins engine, Wheel loader, loader, shovel wheel loader, wheel loader bucket, wheel loader use Cummins diesel engine

2.0Ton wheel loader-ZL20F

1)CE approved, and ISO9001 certification
2)Quickly hitch, and various optionl tools for meeting different working condition
3)we do OEM service, and own experience of the OEM work for nearly 100 international trading companies.

Loader inside 40'HQ container, have to remove the cabin.
(package: 2sets in a 40'HQ, tires fixed well by the wooden stop bolck, and lifting arm fixed by steel wire, solid and safe during long time sea transportation)

Use Cummins diesel engine as power, reliable and supply strong 75kw power for machine working

Performance	1	rated loading	2000kg
	2	overall weight	5900kg
	3	rated bucket capacity	1.0-1.2m 3
	4	maximum tractive force	≥ 54KN
	5	maximum breakout force	≥ 45.4KN
	6	maximum grade ability	30
	7	maximum dump height	3150mm
	8	maximum dump reach	752mm
	9	overall dimension (L× W× H)	5850× 1870× 2860mm
	10	minimum turning radius	5251mm
Engine	11	model	YTR 4108 or Yuchai 4J12T-85 or Cummins 4BT3.9-100
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4_ 105× 125mm
	14	rated power	60kw or 62kw or 75kw_ 2400r/min
	15	maximum torque	261.7N. m
	16	min fuel-consume ratio	≤ 242g/kw. h
Transmission system	17	torque converter	YJ _ 280A
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing spiral	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	2400mm
	24	wheel tread	1640mm
	25	ground clearance	310mm
Hydraulic system	26	system working pressure	16MPa
	27	boom lifting time	4.8s± 0.2s
	28	total time	9.2s± 0.5s
	29	fuel tank capacity	80L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
Brake system	32	parking brake	flexible shaft operated external drum
Tyre	33	type specification	16/70 _ 20
	34	front tyre pressure	0.22Mpa
	35	rear tyre pressure	0.18Mpa

Established in 2005, Qingzhou Hongyuan Vehicle Co., Ltd. is a leading manufacturer and exporter of ZL serial wheel loader in China, which is concerned with the design, development and production of Wheel Loader. All of our products approved CE certification, that's accordingly with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Our company is specialized in producing mini construction machinery, products cover ZL series wheel loader, mini wheel loader, Multi-Function wheel loader and with different varieties tools which would make one machine for meeting different working condition requirements. Model: ZL08, Z10, ZL12, ZL15, ZL16, ZL18, ZL20, ZL28, ZL30, ZL50, SHM610, HY910, HY712. Tools: Hydraulic quickly coupling, pallet fork, hydraulic pallet fork, hydraulic snow blade, snow bucket, snow blower, 4in1 bucket, screen bucket, hydraulic grapple fork, sweeper, driller, mixer, clamp bales, etc.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Products successfully established long term business relationship with Australia, whole Europe, South America and Middle East.

Now we are looking for dealers and distributors to promote our products in worldwide markets. Sincerely welcome world friends to contact for business discussion and cooperation based on mutual benefit. We are looking forward to receiving your inquiries. If you are interested, please visit for more information about us.
