Feature:

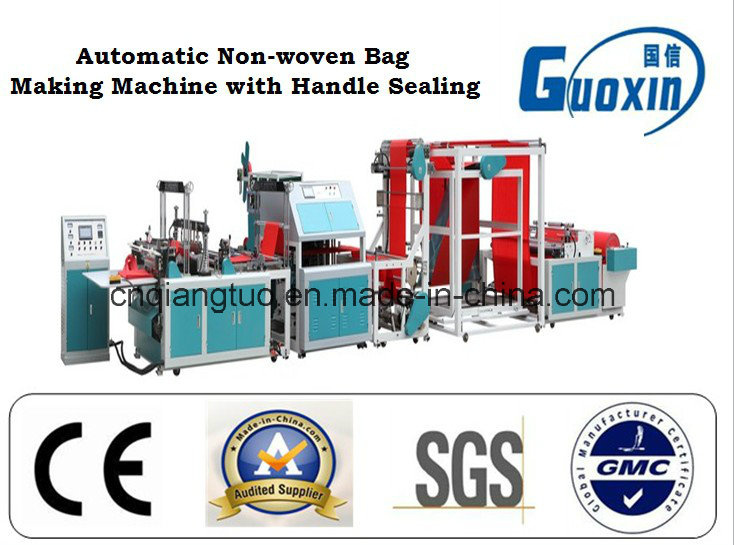

This is a Multifunctional non-woven fabric bag making machine, whole machine can produce soft non-woven fabric packaging, such as Non-woven vest bag, flat bag, reticule, shoes bag, Leisure bag, shopping bag, environmental protection bag etc. It is an ideal and effective bag making equipment.
Performance and Characteristics:
1, The machine is controlled by micro-computer, and it adopts stepping motor to feed materials.
2, The machine fixes the length at random, and has accurate and stable photoelectric tracking. If any missing bags, it will stop running automatically.
3, It has Automatic Air Pressure Punching and automatic thermostat, and it has automatic stopping while the materials are not in regular work.
4, It has automatic counter and can set the counting alarm.
5, The material feeding is controlled by photo-electricity, and it can automatically rectify the deviation while locating the materials.
6, The bottom of bag is welded in roll-type by ultrasonic to ensure the substance and stability.
7, It is suitable for making Non-woven vest (t-shirt)bag, Non-woven flat bag, Non-woven flat with handle bag Non-woven rope(shoes) bag etc. (Add puncher for vest bag, handle making and welding bag machine for flat with handle bag).
Main Technical Parameters:
| Model | QT-B500 | QT-B600 | QT-B700 |
| Products | Flat bags | T-shirt bags | Rope bags |
| Material Width(mm) | 1000 | 1200 | 1400 |
| Speed (pcs/min. ) | 10-100 | 10-100 | 10-100 |
| Bag Weight (gsm) | 15-100 | 15-100 | 15-100 |
| Bag Width (cm) | 10-600 | 10-600 | 10-700 |
| Bag Length (cm) | 15-45 | 10-550 | 15-650 |
| Voltage (v) | 380/220 | 380/220 | 380/220 |
| Power (kw) | 10 | 15 | 18 |
| Weight (kg) | 3600 | 4000 | 4200 |
| Size (mm) | 9200x1500x1700 | 9200x1600x1700 | 9200x1700x1700 |
