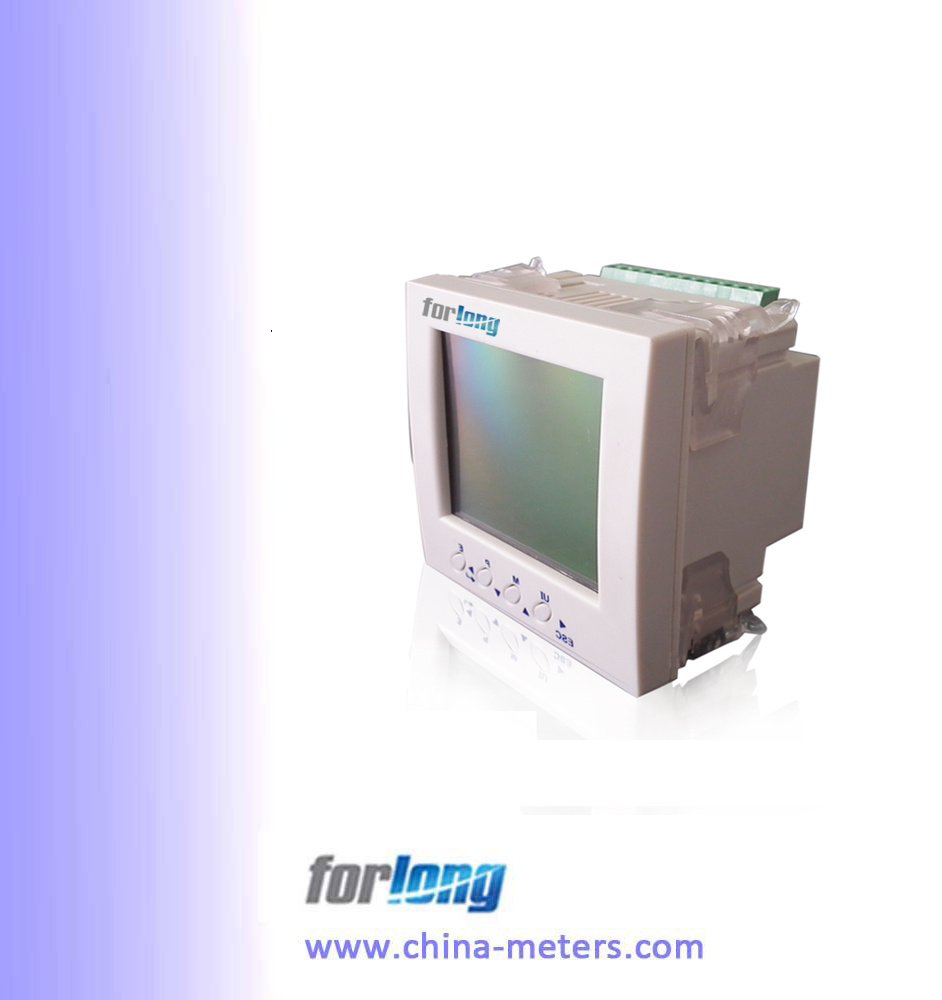

Multi-function Panel energy meter
Features
Class 1 accuracy
Pulsed output
Active energy consumption indication
Benefits
High accuracy
Good reliability
Small volume
Light weight
System safe
No maintenance
|
Meter specifications |
|
Meter Type |
X834 |
|
Nominal Voltage(Un) |
230/400V AC (3~) |
|
Operational voltage |
161/279 – 300/520V AC (3~) |
|
AC Voltage Withstand |
4KV for 1 minute |
|
Impulse Voltage Withstand |
6kV – 1.2µS waveform |
|
Basic Current (Ib) |
1.5A (CT type); 10A(directly connect) |
|
Maximum Rated Current (Imax) |
6A (CT type); 100A(directly connect) |
|
Operational Current Range |
0.4% Ib- Imax |
|
Over Current Withstand |
30Imax for 0.01s |
|
Operational Frequency Range |
50~60Hz ±10% |
|
Internal Power Consumption |
≤2W / 10VA |
|
Test Output Flash Rate (RED LED) |
3200imp/kWh (CT type); 400imp/kWh (directly connect) |
|
Pulse Output Rate (pins 7 & 8) |
3200imp/kWh (CT type); 400imp/kWh (directly connect) |
|
Accuracy class 1 |
|
Voltage, LN & LL (Phase1,2,3) |
±0.5% |
|
Amps (Phase 1,2,3) |
±0.5% |
|
Frequency |
±0.2% |
|
Active Power (Phase 1,2,3&Σ) |
±0.5% |
|
Reactive Power (Phase 1,2,3&Σ) |
±0.5% |
|
PF (Phase 1,2,3 &Σ) |
±0.2% |
|
Active power (Phase 1,2,3&Σ) |
±0.5% |
|
Reactive power (Phase 1,2,3&Σ) |
±2% |
|
Apparent power (Phase 1,2,3&Σ) |
±0.5% |
|
RS485 communication specifications |
|
Bus Type |
RS485 protocol |
|
Baud Rate |
1200,2400,4800,9600,19200 (optional) |
|
Address range |
1-255 user settable |
|
Bus Loading |
256 meters per bus |
|
Communication Distance Range |
1200m |
|
Infrared communication specifications |
|
Infrared Wavelengths |
900- 1000nm |
|
Baud Rate |
1200bp |
|
Communication Distance Range |
5m |
|
Communication Angle |
-15°~+15 |
|
Protocol |
MODBUS RTU with 16 bit CRC |
|
Performance Criteria |
|
Operating Temperature |
-10°C to +50°C |
|
Storage Temperature |
-30°C to +70°C |
|
Operating Humidity |
≤ 75% non condensing |
|
Storage humidity |
≤ 95% non condensing |
|
IP Protection |
IP51 |
|
Protective class |
II |
|
Dimensions |
130 mm high x 65mm Depth x 126mm Width |
|
Weight |
0.7KG |
