Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
Direct Connected |
| Power Source: |
AC Meter |
| Theory: |
Electronic Meter |
| Usage: |

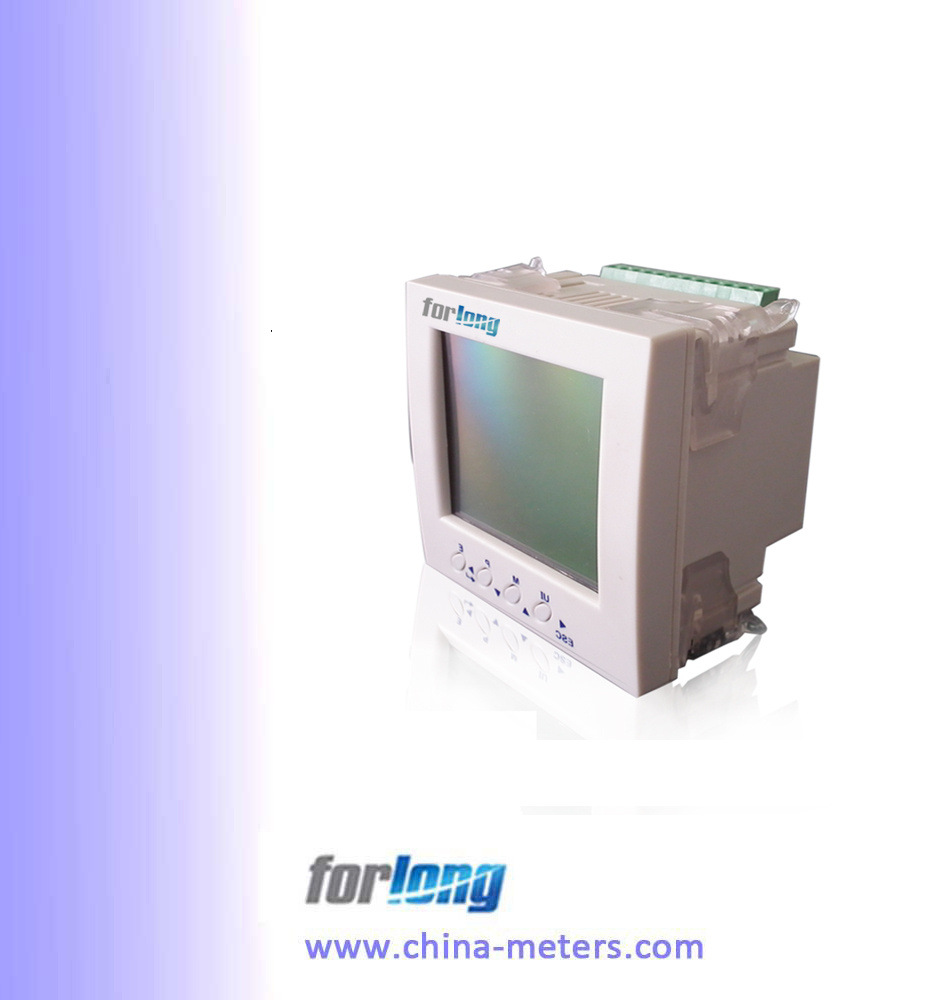

Multi-Functional Energy Meter |
Product Description
Specifications
1 Voltage Input
20-280 Volts Line To Neutral, 20-480 Volts Line to Line
Universal Voltage Input
Input Withstand Capability -Meets IEEE C37.90.1 (Surge Withstand Capability)
Programmable Voltage Range to Any PT ratio
Supports: 3 phase 3 or 4 wires, 400/230V, 110/63V, 208/120V
Burden: 0.36VA per phase Max at 600V, 0.014VA at 120 Volts
Input wire gauge max (AWG 12 / 2.5mmPPPP2PPPP)
2 Current Inputs
Class: (0 to 5) A, 5 Amp Nominal
Fault Current Withstand: 100 Amps for 10 Seconds, 300 Amps for 3 Seconds, 500 Amps for 1 Second.
Programmable Current to Any CT Ratio
Burden 0.005VA per phase Max at 11Amps
5mA Pickup Current
Pass through wire gauge dimension: 0.177" / 4.5mm
Continuous current withstand: 20 amps for screw terminated or pass through current connections
3 Isolation
All Inputs and Outputs are galvanically isolated to 2500 Volts AC.
4 Environmental Rating
Storage: (-25 to +70)° C
Operating: (-10 to +65)° C
Humidity: To 75% RH Non-Condensing
Faceplate Rating: NEMA12 (Water Resistant)
Environment: IP54 standard, IP65 optional
Mounting Gasket Included
5 Sensing Method
RMS
Sampling at 120+ Samples per Cycle on all channels measured readings simultaneously
Harmonic %THD (% of Total Harmonic Distortion)
6 Update Rate
Watts, VAr and VA-100msec
All other parameters-1second
7 Power Supply
Option D2:
(65 to 275) Volts AC and (90 to 380) Volts DC. Universal AC/DC Supply
Option D:
18-60VDC Burden: 10VA max.
8 Communication Format
2 COM Ports (Back and Face Plate)
RS485 Port (Through Back Plate)
10/100 BaseT Ethernet Modbus TCP (INP10)
COM Port Baud Rate: (1200 to 115200)
COM Port Address: 0-247
8 Bit, No parity
Modbus RTU Protocols
9 KYZ Pulse
Type Form A
On Resistance: 23-35 Ohm
Peak Voltage: 350 VDC
Continuous Load Current: 120 mA
Peak Load Current: 350mA (10ms)
Off Stat Leakage Current @ 350VDC: 1 mA
Opto-Isolation: 3750V (6 0Hz, 1min)
10 Meter Accuracy
KWh Better than Class 1 per EN 62053-21 & BS 8431
Kvarh Better than Class 2 per EN 62053-23 & BS 8431
KW & KVA Better than Class 0.5 IEC 60688
Kvar Better than Class 0.5 IEC 60688
Amps & Volts Class 0.2 IEC 60688 (0.01In- 1.2In or 0.1Un- 1.2Un)
PF ± 0.2° (0.05In- 1.2In and 0.2Un- 1.2Un)
Neutral Current Class 0.5 IEC 60688 (0.05In- 1.2In)
