| Price: | US $ 13000-20000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Specifications | |

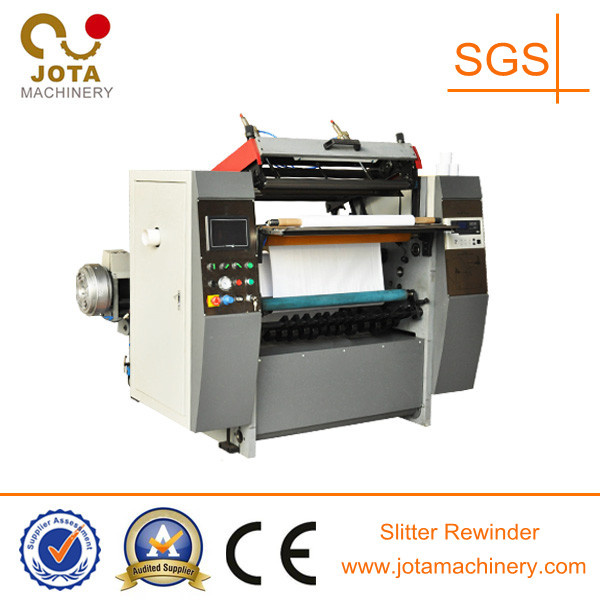

| Category | Automatic Thermal Paper Slitter and Rewinder Machine |
| Application Material | Thermal paper, Cash Register Paper, Fax Paper, ATM paper, Bond Paper, Non-woven cloth etc |
| Applicable Width of Axial / Material | 700-900mm / 27.56-35.4" (Other width can be customizable) |
| Min. Width of Slitting | 30mm/1.18"(Depending on kinds of source material are applied) |
| Max.Machine Speed | 150m/min (Depending on kinds of material applied) |
| Max. Unwinding Diameter | 1000mm /39.37" |
| Max. Rewinding Diameter | 160mm /6.3" (Customizable) |
| Tolerance of Slitting Width | ±0.1mm(Depending on kinds of material applied) |
| Max Applicable Weight of Material | 1000 Kg (Customizable) |
| Rated Frequency | 50Hz & 60Hz |
| Rated Voltage | 380V,415V, 440V, 460V, 480V, or Dual-Voltage (Customizable) |
| Unwinding/Rewinding Shaft | 3" Pneumatic Air Expanding Shaft(Customizable) |
| Overall Dimensions | 2000 x 2500 x 1500mm |
| Weight | 1800kg |
| Components | |
| Unwinding Section |
-3"air expanding rewinding shaft -Automatic lift-up loading system via motor -Electromagnetic Brake from Taiwan -Fully automatic tension controller |
| Slitting Section |
-Disc cutter -Disc Cutter Assembly adopt the cam self-locking -Cutter with adjustable and moveable blade base. -Meter counter |
| Rewinding Section |
-3"air expanding rewinding shafts -Center Rewinding technology -Pressure roller -Electromagnetic Clutch from Taiwan |
| Controlling Section |
-Siemens PLC & HMI from Germany -All the parametersare displayed on the monitor -Low voltage electrical appliances all from Schneider |
| Trimmed Waste Edge | -Edge Waste Blower with Expulsion Tube |
| Optional | -One more unwinding stand for 2ply thermal paper working. |
| Environmental Restriction | |
| Location | Indoor. The product should be installed on flat and solid foundation. |
| Voltage Regulation | ±10% |
| Frequency Regulation | ±5% |
| Ambient Temperature | -5°C~40°C |
| Altitude | Not exceed 1000 Meters |
| Relative Humidity | Less than 85% RH (Non-Condensation) |
| Configuration | |||
| Name | Model | Pieces | Remark |
| Computer System | PLC+HMI | 1set | Siemens from Germany |
| Main motor | 1 set | Siemens from Germany | |
| Frequency inverter | 1Piece | Inovance from China | |
| Air Pressure Valve | 1 set | SMC from Japan | |
| Cylinder | 2Piece | AIRTAC from Taiwan | |
| Air Expanding Shaft | 1 Piece | ||
| Magnetic Brake | 1set | From Taiwan | |
| Low Voltage Electrical Switch | CHINT | ||
| Relay | Omron from Japan | ||
| Prod Model: | JT-SLT-900 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PLC Control System: | Siemens Brand |
| Touch Screen: | From Taiwan |
| Tension: | Automatic |
| Synchronic Belt: | Avoid Overlap Problem |
| Frequency Inverter: | 2.2kw |
| Automatic Loading System: | Heavy Paper Roll Easily Load |
| Cutting Type: | Disc Blades |
| Red Line Marking System: | Available |
| Automatic Tucking System: | Available |
| Air Blower: | Blow Away Wasting Edge |
| Type: | Roll Slitter |
| Work Method: | Round Knife Cutting |
