Product Specifications
| Prod Model: |
HT102-21 |
| Comply: |
Digital TV |
Product Description

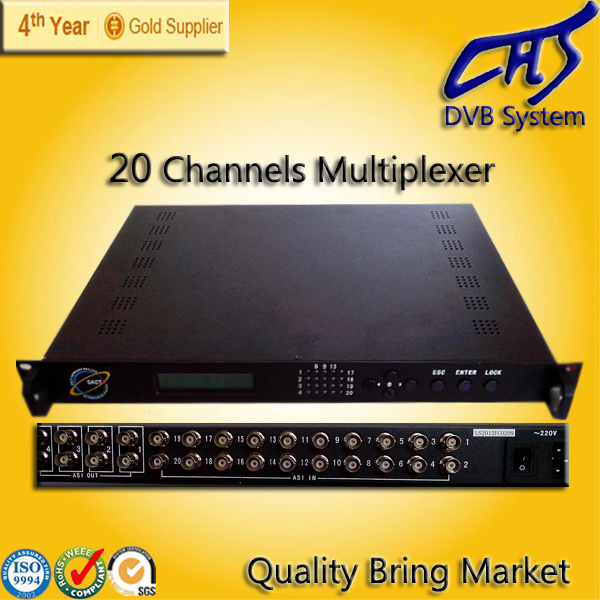

20 IN 4 MULTIPLEXER
Outline
1.Multiplex 20 channels inputs (ASI) SPTS or MPTS, multilevel multiplexing is available.
2.The output bit rate is continuously adjustable, valid bit rate 100Mbps (max.)
3.Input data bit rate:155Mbps (max.)/channel.Support packet burst-mode
4.Input TS packet length (188/204) auto-adaption
5.Output interface:4 independent TS output, each one TS is with 2 routes ASI interfaceOutput
6.Analyze input MPTS stream, display input programs name and valid output stream Size.
7.High accuracy PCR correction, the average jitter is 20~60ns
8.PID filtering and PID re-setting, operator can add or delete the programs conveniently, And mapping PID of selected program automatically.
9.Ethernet interface which can carry out the parameters setting and supervision from Remote via network management unit.
10.PSI automatically generate, it can conveniently extend the EPG, SI and other Services by Ethernet port.
|
characteristic |
parameter |
ASI input:
|
20 DVB ASI input, Connector Type: BNC,75Ω |
|
155Mbps (max)/channel, support uniform pattern, packet burst-mode |
|
Packet Format: 188/204 auto detection |
|
Single, Multiple Program Stream, comply ISO-13818 Standard |
|
ASI Output |
4 DVB ASI output (4 channels alone ASI) Connector Type: BNC,75Ω |
|
Packet Format: 188 |
|
The max valid code rate is up to 100Mbps |
|
Single, Multiple Program Stream, comply ISO-13818 Standard |
|
Ethernet port |
Realize the remote control of Multiplexer, such as EPG/PSI/SI service |
|
RJ45 port , 10Base-T |
|
Remote Control |
Connector Type: RJ-45 Ethernet port |
|
General |
Dimension: 483*290*44.5mm |
|
Power : 25w |
|
Power supply : AC220V, 50Hz |
