Multi Path Ultrasonic Flow Meter-Ultrasonic Air Flow Meter
| Price: |
US $ 100-6000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Product Specifications
| Prod Model: |
XK-JH48D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ultrasonic Flow Meter |
| Measuring Media: |
Gas |
| Accuracy: |
0.2%-0.5% |
| Size: |
Dn15~Dn6000 |
| Sensor: |
Clamp-on/External |
Product Description
1.Redundancy for High Accuracy and Long-Term Stability
2.Super Low Flow Rate Measuring
3.High dynamic response, real-time flow change tracking
4.Menu driven operation (no instructions needed)
5.High accuracy: 0.2% reading or 0.5 % reading
6.Highly stable zero
7.No drifting flow measurement
8.No periodic calibration
9.No maintenance
10.No pressure drop
11.No moving parts and no filters or strainers
12.Bi-directional flow measurement
Descriptions: .

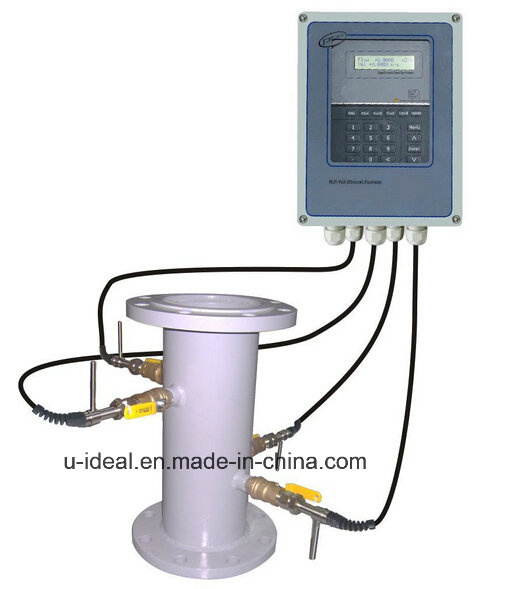

The model XK-JH48D inline ultrasonic flowmeter (here in after referred to as XK-JH48D) represents the latest generation of ultrasonic flow meters. It is two-or- six-path meter designed specifically for dependable, accurate and repeatable measurement of process liquids. With a sleek industrial design and ultra-reliable electronics, it provides operators a cost effective top-of-the-line choice. The capabilities of the XK-JH48D make it the right meter for a number of industries and applications
The XK-JH48D is a multi-path, wetted or insertion ultrasonic flow meter that brings all of the advantages of ultrasonic technology at a very affordable value. Unlike other flow measurement technologies, the XK-JH48D does not require maintenance since it does not have any obstruction in the flow path that could clog the line, nor does it have any moving parts that could be damaged by the flowing fluid. Also, due to the inherent nature of our ultrasonic flow measurement, the XK-JH48D measurement is not affected by changing process conditions (temperature, pressure, and conductivity) and does not drift over time that would require periodic calibration. With no maintenance and calibration required, XK-JH48D couples lower overall cost with superb reliability and performance.
The model XK-JH48D inline ultrasonic flowmeter is a true state-of-the-art transit-time flowmeter designed using PICOFLY technology and 0.01nanosecond (10 picoseconds) resolution; the flow sample rate achieved is 256 discrete flow measurements per second, which provides a true high dynamic response flowmeter. This makes this meter for rapid on/off or pulsating flow applications.
| Specifications: |
| Path number | 2 | 3 | 4 | 5 | 6 |
| Pipe diameter | ≥DN100 | ≥DN200 | ≥DN300 | ≥DN400 | ≥DN500 |
| Velocity | 0.05~±7m/s |
| Accuracy | ±0.2% or ±0.5% of reading |
| Repeatability | 0.04% or 0.1% |
| Flanged transducer |
| Working pressure | 1.6MPa |
| Suited Liquid Temperature | -20ºC to 80ºC |
| Explosion-proof rating | Exd IICBT4, Exd IICCT4, Exd IICT6, Exd IICT6 |
| Flanges standard | 1 DIN (EN1092-1); 2 ANSI B16.5; 3 JIS; 4 Other |
| Transducer pipe material | SS, PEI or POM |
| Cable Length | (9m) standard cable length, up to 300m |
| Transmitter |
| Display | 40 character, 2 line (20×2) lattice alphanumeric, backlit LCD |
| Output | 4-20mA, OCT pulse, relay, RS485, optional GPRS |
| Power supply | 90 to 250 VAC |
| Power consumption | 20w |
| Dimension | 230(W)x280(H)x110(D)mm |
