Product Specifications
| Prod Model: |
PMAC770 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Current Range: |
0~50000A |
| Measuring Voltage Range: |
0~500kv |
| Accuracy Class: |
0.2 % |
| Operating Temperature: |
-20~+60 Degree |
| Dimensions: |
96mm X 96mm |
| Real Time Measuring: |
Voltage, Current, Power, Power Factor, Energy |
| Power Quality: |
Unbalance, Harmonic, K Factor |
| Alarm: |
Over / Under Limit Alarm |
| Input / Output: |
3 Status Input + 2 Relay Output |
| Communication: |
RS485, Modbus-RTU |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
General Installation Meter |
| Power Meter Connection: |
Terminal |
| Theory: |
Electronic Meter |
| Usage: |
Multi-Functional Energy Meter |
| Measured Signal: |
Voltage, Ampere, Harmonic, Frequency... |
Product Description

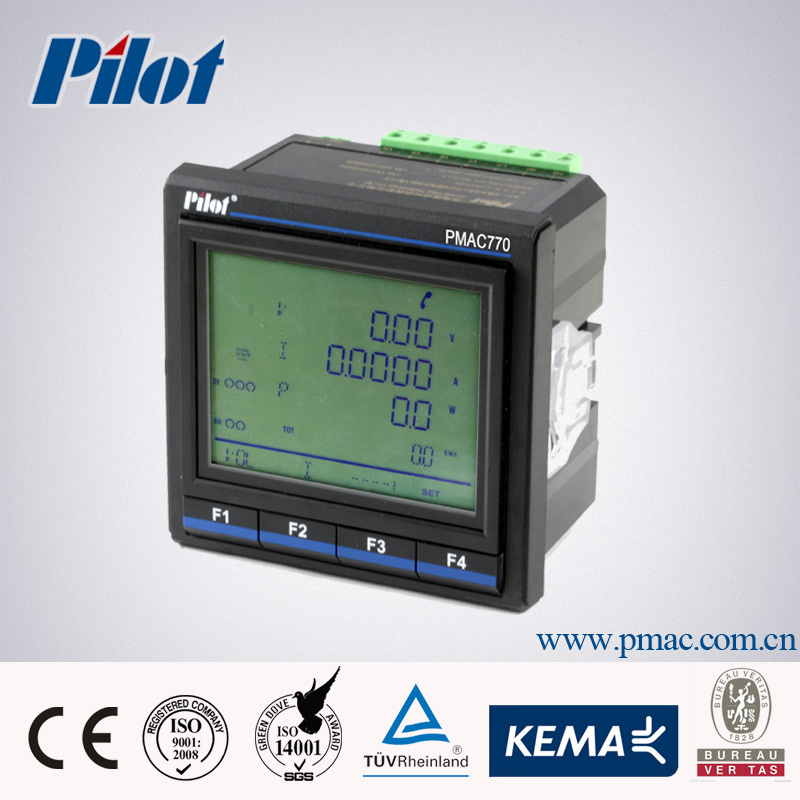

PMAC770 Multifunction Power Meter with Following Features
Ø Suit for LV/ HV voltage system
For low voltage system, PMAC770 direct connect up to 600VAC
For high voltage system, PMAC770 need to connect with PTs, PT ratio programmable
Ø New appearance and design
Large LCD display and button, replace AI capacitor by Tam capacitor
Ø Self-testing phase sequence error In case of error phase sequence input, PMAC770 will display on LCD
Ø Real-time measurement
True-RMS measuring parameters includes:
U, I, P, Q, S, PF, F, kWh, kvarh, demand, max. /min. Value,
Ø Demand calculation mode is programmable
2 kinds of demand modes: Fixed block and rolling block
Demand cycle programmable: 5/ 10/ 15/ 30/ 60mins
Slip window programmable: 1/ 2/ 3 mins
Ø Multi-tariff billing, historical data of 31 days and 12 months
2 kinds of setting modes: Time zone mode and holiday mode
Time zone mode: 2 time zones in one year
Holiday mode: Working days ( Mon. - FRI. ) and holidays ( Sat. - Sun. )
There are 2 lists of tariff rate, each list can setup 8 periods of time in 24 hours, 4 tariff rates.
Ø Power quality analysis Harmonic analysis, crest and K factor, unbalance etc.
Ø Optional module and upgradeable
Pluggable in option module, support online upgrade
Ø Setpoint alarm
Under/ over limit alarm, monitoring objects include: U, I, PF, F, THD, unbalance
If any parameters is over or under limit and persists over the specified time, PMAC770 will record the event, and trip relay output signal.
Ø High accuracy
Active energy: According to IEC62053-22, class 0.5s
Reactive energy: According to IEC62053-23, class 2
Ø Small size and thin style
Panel: 96x96x13.5mm Cut-out: 90x90mm,
Depth: 45.1mm (basic unit) + 21.5mm (optional module)
Ø Standard IEC62053-22/ 23, CE. KEMA
|
Parameter |
Accuracy |
|
Voltage |
0.2% |
|
Current |
0.2% |
|
Power |
0.5% |
|
Power factor |
0.5% |
|
Frequency |
0.01 |
|
Active power |
0.5% |
|
Reactive power |
2.0% |
|
THD |
1.0% |
|
Harmonic |
1.0% |
|
Unbalance rate |
1.0% |
