Product Specifications
| Prod Model: |
PMAC735 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Current Range: |
0~50, 000A |
| Measuring Voltage Range: |
0~500kv |
| Accuracy Class: |
0.2% |
| Operating Temperature: |
-20~+60 |
| Dimensions: |
96mm X 96mm |
| Input: |
Rate Current: 1A or 5A |
| Power Supply: |
5~265VAC, 80~300VDC |
| Type: |
Power Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
General Installation Meter |
| Power Meter Connection: |
Terminal |
| Theory: |
Electronic Meter |
| Usage: |
Multi-Functional Energy Meter |
| Measured Signal: |
Voltage, Ampere, Harmonic, Frequency... |
Product Description

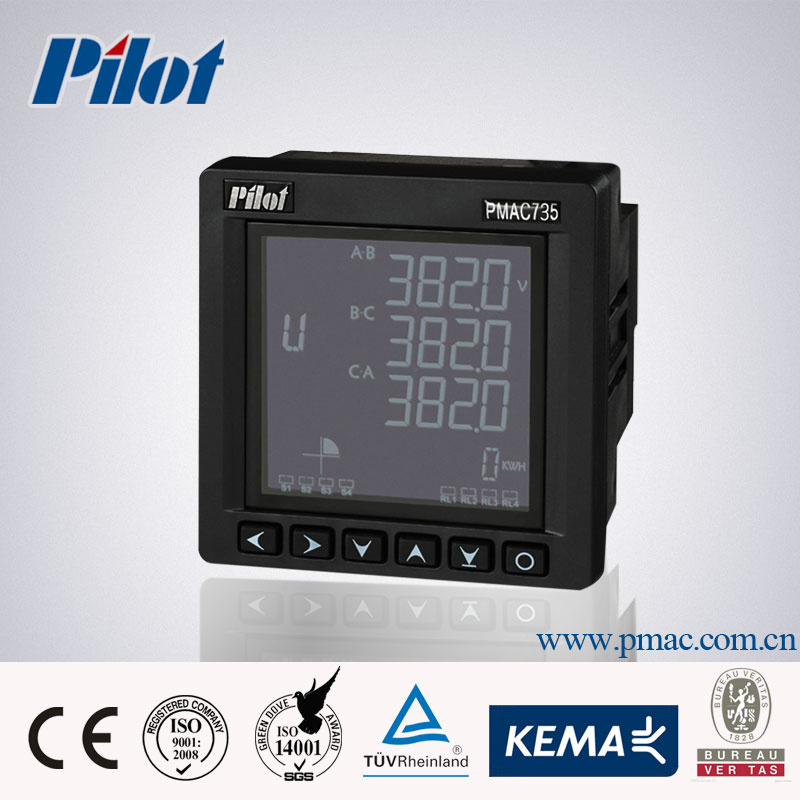

PMAC735 multifucntion power meter with following features:
1. Suit for LV/ HV voltage system
2. Compact design with all real-time measurement
3. Consist of basic unit and optional modules
4.10 years back-up of integrated energy data
5. Large LCD, high brightness, auto-scrolling
6. High accuracy, V or I is 0.2%, kWh is class 1
7. CT and PT programmable
8. Pluggable terminals, easy to install
9. Panel size: 96 x 96mm
10. Password protect
PMAC735 multifucntion power meter Basic Functions:
Provide one RS485 communication, measures and display real-time parameters:
1. Voltage— Ua, Ub, Uc, Uab, Ubc, Uca,
2. Current— Ia, Ib, IC, In
3. Active power PA, Pb, PC, ∑ P
4. Reactive power QA, Qb, QC, ∑ Q
5. Apparent power— SA, Sb, Sc, ∑ S
6. Power factor— PFA, PFb, PFc, ∑ PF
7. Frequency
8. Active energy— KWh (4 quadrant)
9. Reactive energy kvarh (4 quadrant)
10. Demand and Max. Record for I, P, Q, S
11. Unbalance rate for U, I
12. Max. / Min. Value
13.24~48V DC power supply(optional)
PMAC735 multifucntion power meter DI/ DO Modules:
1.4 status input + 4 relay output
2.8 status input + 2 relay output
3.8 status input + 2 pulse output
4. Profibus communication module
PMAC735 multifucntion power meter Optional Functions:
1. Up to 31st harmonic analysis, K factor, THD
2. SOE (event log)
3. One 4~20mA analog output
|
Parameter |
Accuracy |
|
Voltage |
0.2% |
|
Current |
0.2% |
|
Power |
0.5% |
|
Power factor |
0.5% |
|
Frequency |
0.01 |
|
Active power |
1.0% |
|
Reactive power |
2.0% |
|
THD |
1.0% |
|
Harmonic |
1.0% |
|
Unbalance rate |
1.0% |
